Bosch Rexroth 3842994179
STRUT PROFILE 90X135L
- MPN
- 3842994179
- Category
- Strut profile
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842994179?

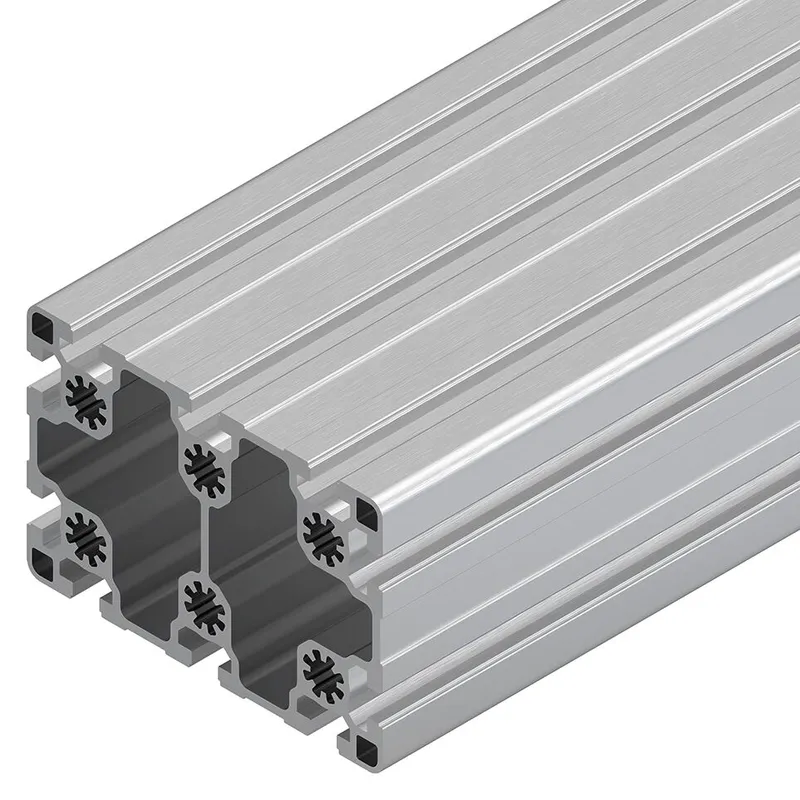

Strut profile 90x135L
Specifications
Specifications

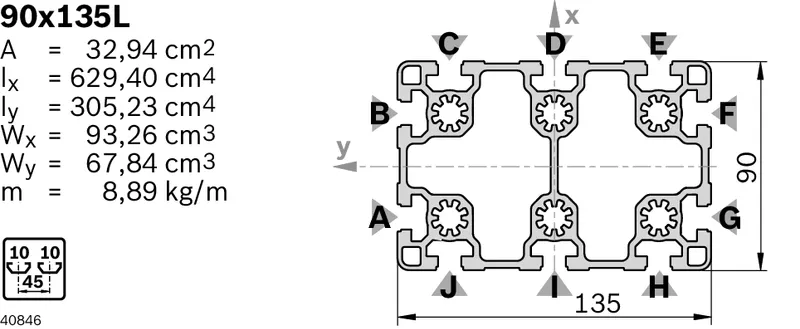

| Cross-section | 90x135L |
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| Dimensions | 90x135 |
| Open slots | 10.0 |
| Profile type | Standard |
| Color | Natural |
| Delivery unit | 1 |
| Length max [L max] [mm] | 6070 |
| Length min [L min] [mm] | 50 |
| Packaging unit | 1 |
| Mass [m] [kg] | 8.89 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 629.4 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 305.23 |
| Profile surface [A] [cm²] | 32.94 |
| Moment of resistance in the x-direction [Wx] [cm³] | 93.26 |
| Moment of resistance in the y-direction [Wy] [cm³] | 67.84 |
| Torsional moment of inertia [It] [cm⁴] | 163.7 |
| Moment of torsion resistance [Wt] [cm³] | 39.6 |
| Material | Aluminum, anodized |
| Recommended accessories | Cover cap 45x90, black ESD; Cover cap 45x90, signal gray; Cover cap 90x90, black ESD; Cover cap 90x90, signal gray |
| Weight [kg] | 0 |
