Bosch Rexroth 3842564806

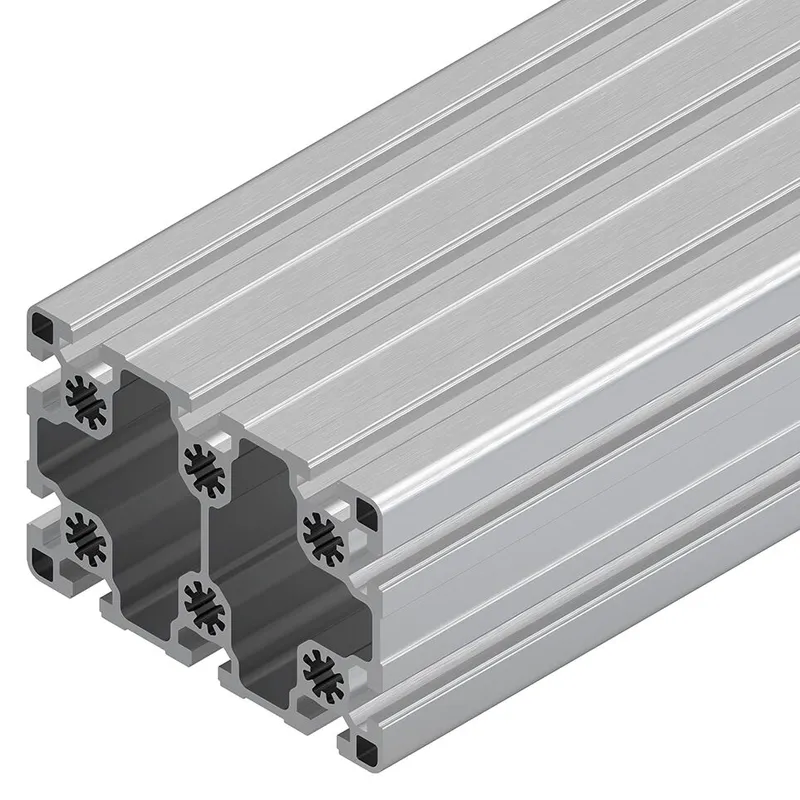

STRUT PROFILE 90X135L L=6170MM

MPN: 3842564806
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842564806?

Strut profile 90x135L, L=6070mm

Specifications

Condition on delivery	Single rod in standard length

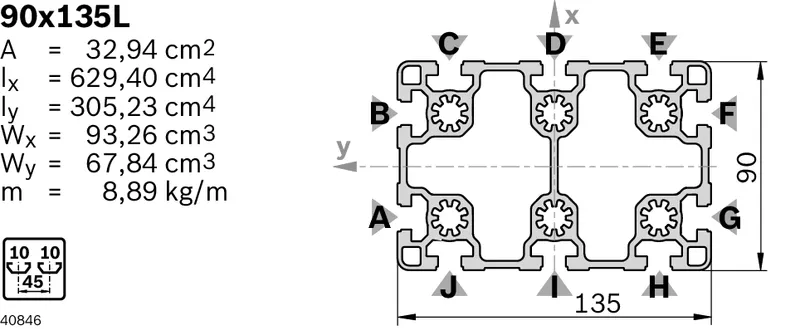

Cross-section	90x135L
Modular dimension [mm]	45
Profile slot	10
Dimensions	90x135
Open slots	10.0
Profile type	Standard
Color	Natural
Delivery unit	1
Packaging unit	1
Mass [m] [kg]	8.89
Area moment of inertia in x-direction [lx] [cm⁴]	629.4
Area moment of inertia in y-direction [ly] [cm⁴]	305.23
Profile surface [A] [cm²]	32.94
Moment of resistance in the x-direction [Wx] [cm³]	93.26
Moment of resistance in the y-direction [Wy] [cm³]	67.84
Torsional moment of inertia [It] [cm⁴]	163.7
Moment of torsion resistance [Wt] [cm³]	39.6
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x90, black ESD; Cover cap 45x90, signal gray; Cover cap 90x90, black ESD; Cover cap 90x90, signal gray
Weight [kg]	54.9
