Bosch Rexroth 3842993149

STRUT PROFILE 80X80L D17/

MPN: 3842993149
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993149?

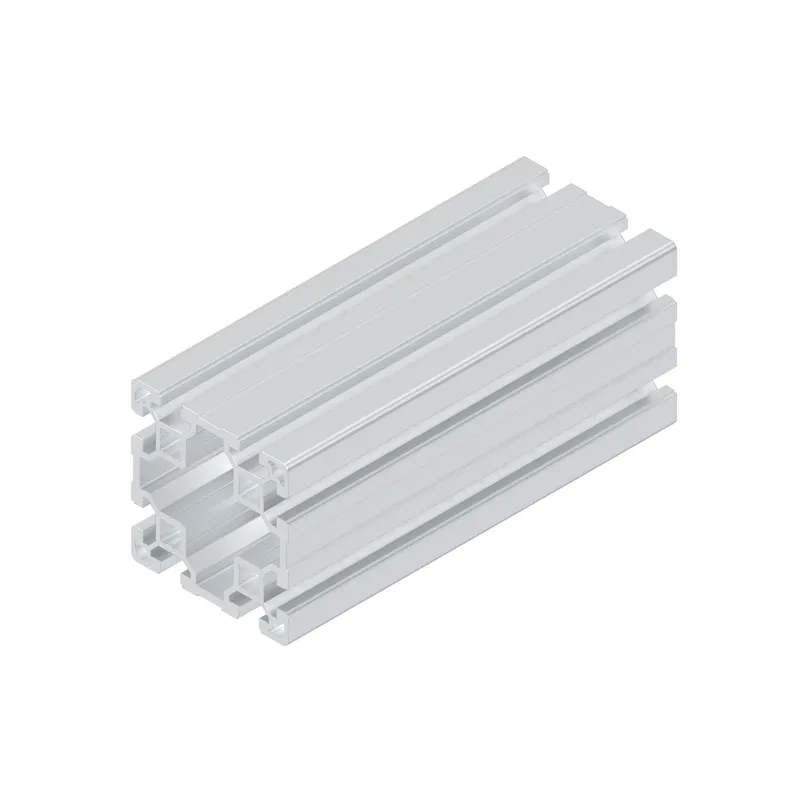

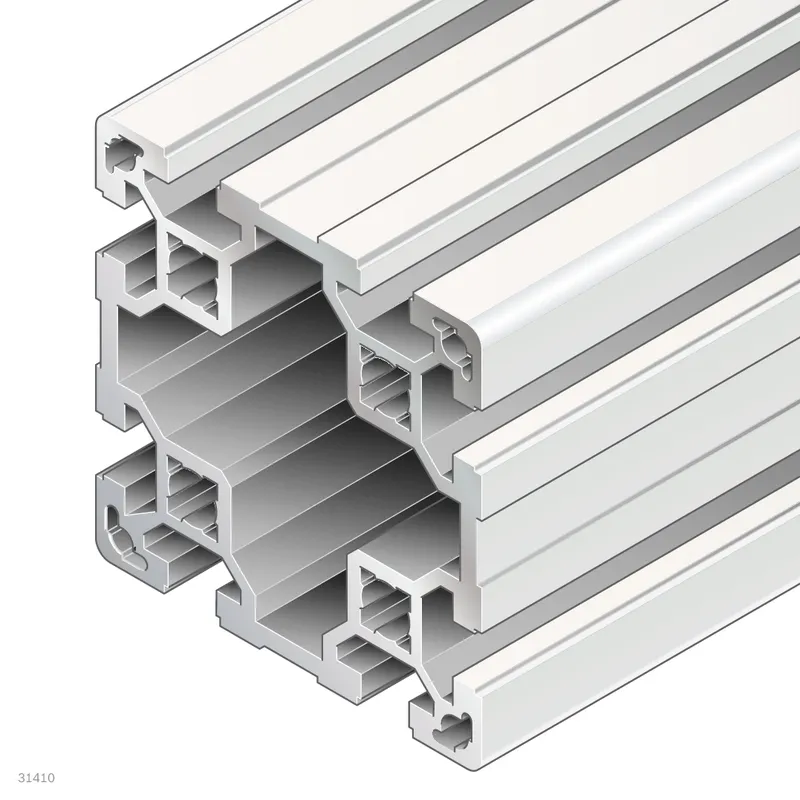

Strut profile 80x80L D17/-

Specifications

Condition on delivery	Profile finishing

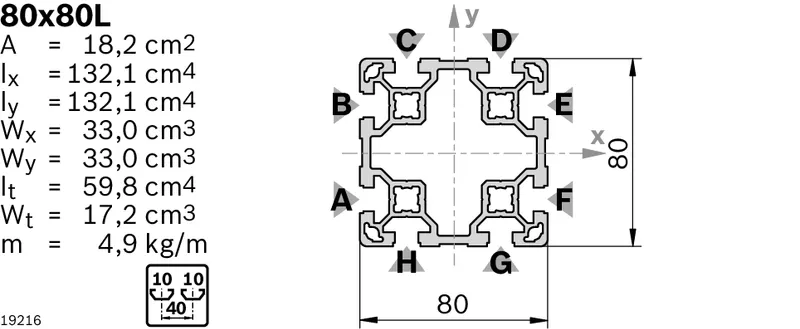

Cross-section	80x80L
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	80x80
Open slots	8.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	60
Packaging unit	1
Mass [m] [kg]	4.9
Area moment of inertia in x-direction [lx] [cm⁴]	132.1
Area moment of inertia in y-direction [ly] [cm⁴]	132.1
Profile surface [A] [cm²]	18.2
Moment of resistance in the x-direction [Wx] [cm³]	33
Moment of resistance in the y-direction [Wy] [cm³]	33
Torsional moment of inertia [It] [cm⁴]	59.8
Moment of torsion resistance [Wt] [cm³]	17.2
Profile adaption	D17: in slots A/F, B/E; D17V: in slots C/H, D/G; M12: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 80x80, signal gray; Mounting hole plug 80x80, black
Weight [kg]	0
