Strut profile Parts
























Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Length min [L min] [mm] | Mass [m] [kg] | Area moment of inertia in x-direction [lx] [cm⁴] | Weight [kg] |
|---|---|---|---|---|---|

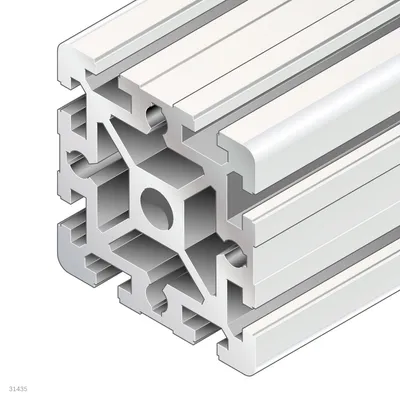

| 3842993082 | 90x90 | 80 | 10.4 | 299.8 | 0 |
| 3842993679 | 90x90 | 50 | 10.4 | 299.8 | 0 |
| 3842990500 | 90x90 | 50 | 10.4 | 299.8 | 31.6 |

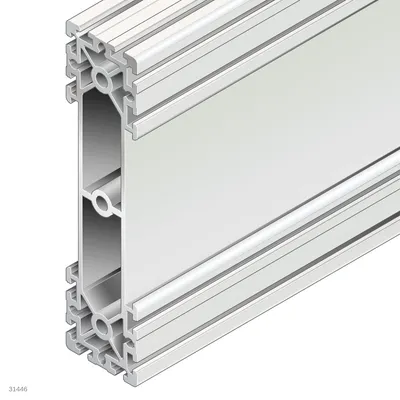

| 3842993435 | 90x360 | 240 | 24.4 | 14065 | 0 |
| 3842993436 | 90x360 | 110 | 24.4 | 14065 | 0 |
| 3842993678 | 90x360 | 80 | 24.4 | 14065 | 0 |
| 3842993434 | 90x360 | 50 | 24.4 | 14065 | 0 |

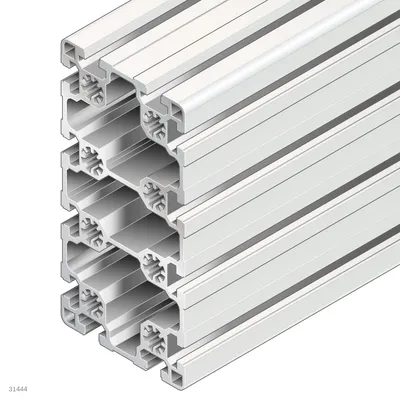

| 3842992859 | 90x180L | 110 | 11.6 | 1380 | 0 |
| 3842992860 | 90x180L | 90 | 11.6 | 1380 | 0 |
| 3842992858 | 90x180L | 60 | 11.6 | 1380 | 0 |
| 3842992864 | 90x180L | 90 | 11.6 | 1380 | 0 |
| 3842557226 | 90x180L | — | 12.5 | 1380 | 214.2 |
| 3842516015 | 90x180L | — | 11.6 | 1380 | 213 |
| 3842992861 | 90x180L | 80 | 11.6 | 1380 | 0 |
| 3842993677 | 90x180L | 80 | 11.6 | 1380 | 0 |
| 3842992857 | 90x180L | 50 | 11.6 | 1380 | 0 |

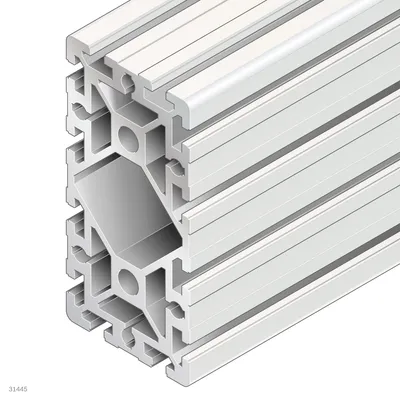

| 3842990418 | 90x180 | 240 | 17.2 | 2138.3 | 0 |
| 3842990419 | 90x180 | 170 | 17.2 | 2138.3 | 0 |
| 3842990417 | 90x180 | 120 | 17.2 | 2138.3 | 0 |
| 3842990421 | 90x180 | 110 | 17.2 | 2138.3 | 0 |
| 3842992378 | 90x180 | 80 | 17.2 | 2138.3 | 0 |
| 3842553617 | 90x180 | — | 17.2 | 2138.3 | 336.3 |
| 3842993081 | 90x180 | 80 | 17.2 | 2138.3 | 0 |
| 3842992898 | 90x180 | 80 | 17.2 | 2138.3 | 0 |
Common to all listed parts
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| Profile type | Standard |
| Color | Natural |
| Material | Aluminum, anodized |
