Home / Bosch Rexroth / Strut profile / Bosch Rexroth 3842993676

Bosch Rexroth

Bosch Rexroth 3842993676

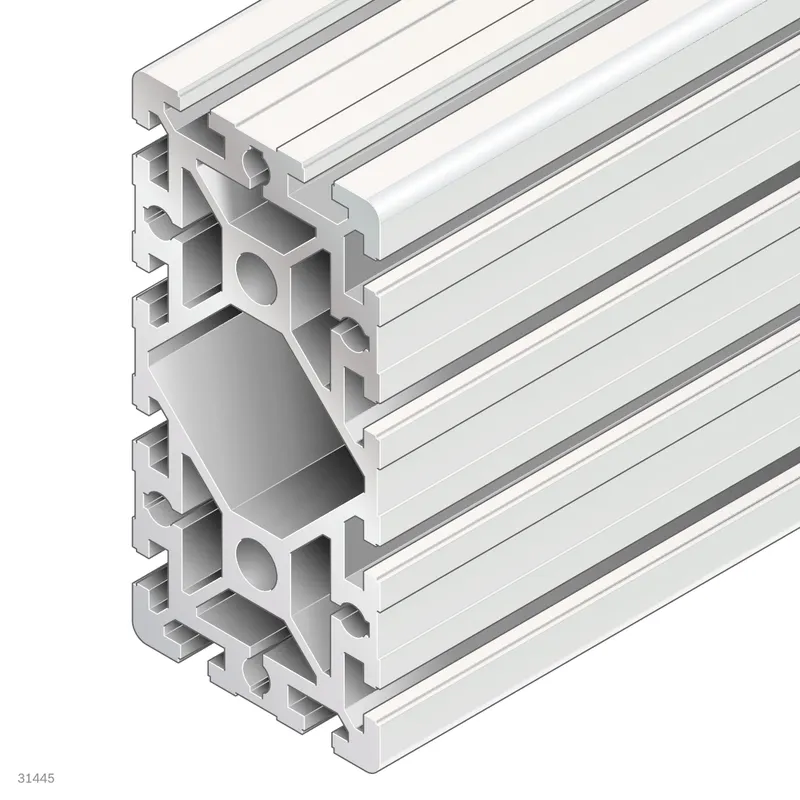

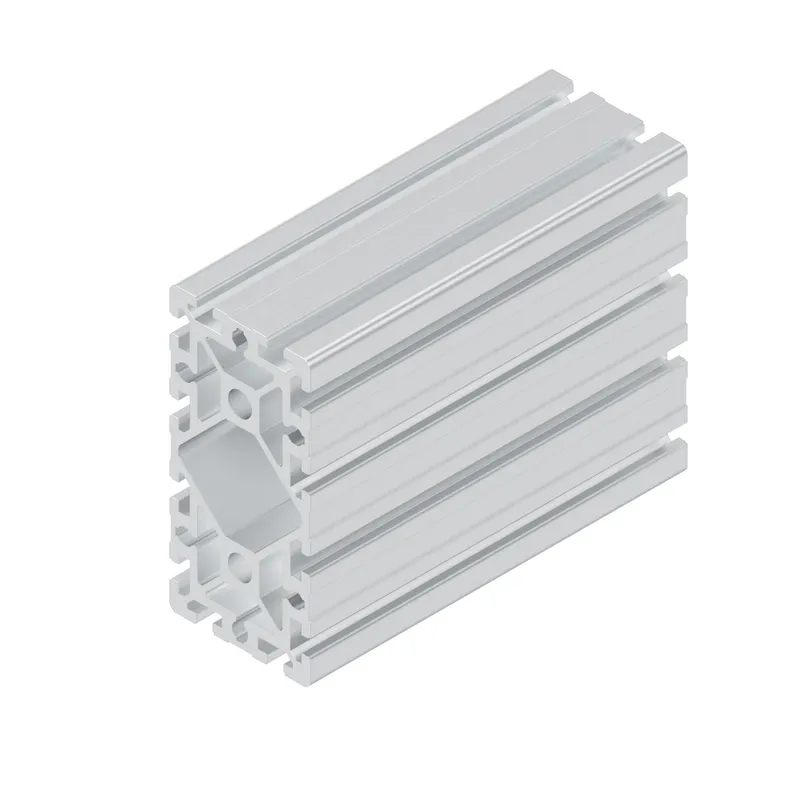

STRUT PROFILE 90X180 Q&E

MPN: 3842993676
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993676?

Strut profile 90x180 Q&E

Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing

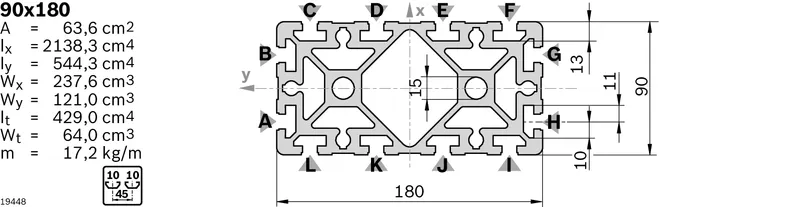

Cross-section	90x180
Modular dimension [mm]	45
Profile slot	10
Dimensions	90x180
Open slots	12.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	80
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	M16 / D9,8(C,D,E,F,I,J,K,L)<sup>1)</sup> / D17(C,D,E,F,I,J,K,L)<sup>1)</sup> / DB17 / F1(A,G)
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	17.2
Area moment of inertia in x-direction [lx] [cm⁴]	2138.3
Area moment of inertia in y-direction [ly] [cm⁴]	544.3
Profile surface [A] [cm²]	63.6
Moment of resistance in the x-direction [Wx] [cm³]	237.6
Moment of resistance in the y-direction [Wy] [cm³]	121
Torsional moment of inertia [It] [cm⁴]	429.0
Moment of torsion resistance [Wt] [cm³]	64.0
Notice	DGmax = 30°, Lmin1 / Lmin2 = 404/508mm; Standard profile finishing at specified slots
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	4900
Standard profile finishing [L max] [mm]	6000
Recommended accessories	Cover cap 90x90, black; Cover cap 90x90, signal gray; Cover cap with hole 90x90, black; Cover cap with hole 90x90, signal gray
Weight [kg]	0
