Bosch Rexroth 3842541937

STRUT PROFILE 30X90 20X6070MM

MPN: 3842541937
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842541937?

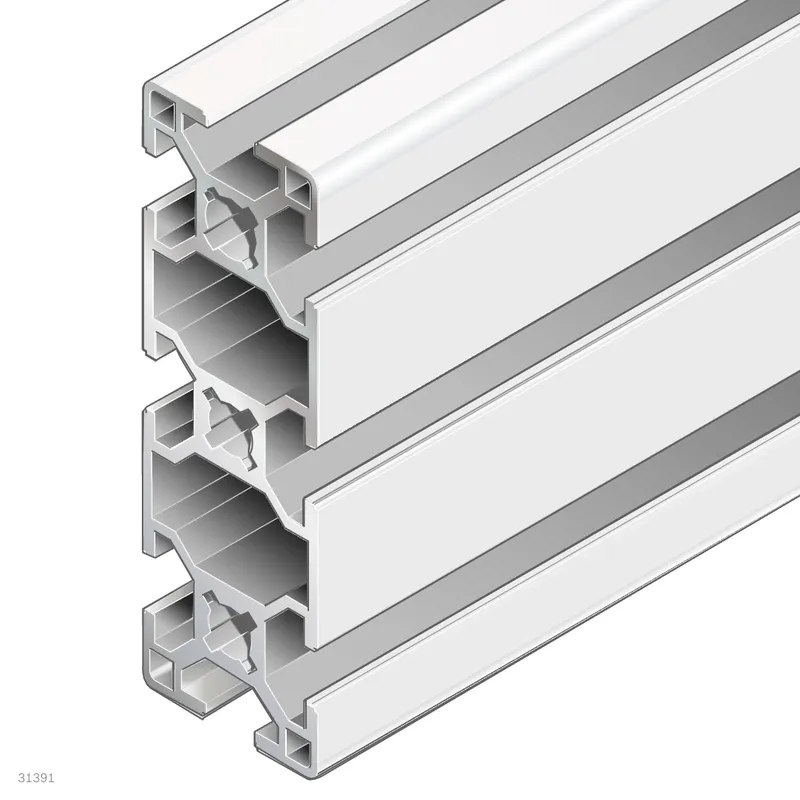

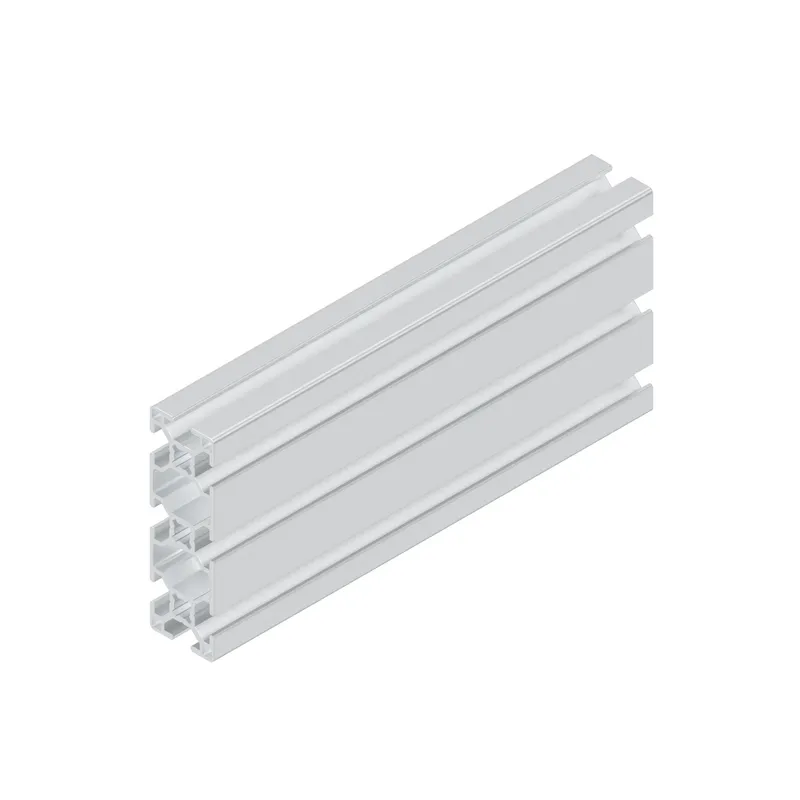

Strut profile 30x90, 20xL=6070mm

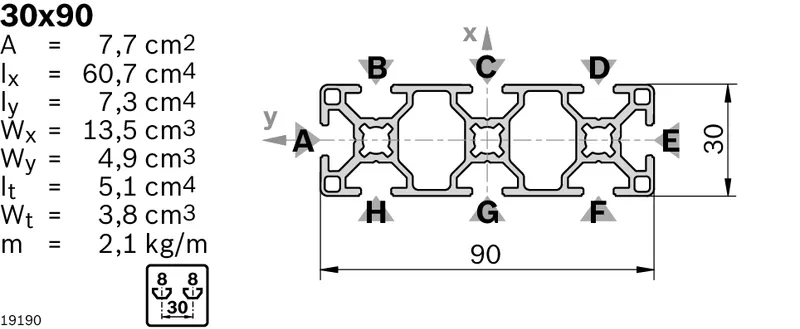

Specifications

Condition on delivery	Packaging unit in standard length
Cross-section	30x90
Modular dimension [mm]	30
Profile slot	8
Dimensions	30x90
Open slots	8.0
Profile type	Standard
Color	Natural
Delivery unit	20
Mass [m] [kg]	2.1
Area moment of inertia in x-direction [lx] [cm⁴]	60.7
Area moment of inertia in y-direction [ly] [cm⁴]	7.3
Profile surface [A] [cm²]	7.7
Moment of resistance in the x-direction [Wx] [cm³]	13.5
Moment of resistance in the y-direction [Wy] [cm³]	4.9
Torsional moment of inertia [It] [cm⁴]	5.1
Moment of torsion resistance [Wt] [cm³]	3.8
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 30x30, black; Cover cap 30x30, signal gray; Cover cap with hole 30x30, black; Cover cap with hole 30x30, signal gray
Weight [kg]	262.9
