Bosch Rexroth 3842993715

STRUT PROFILE 30X60X60 Q&E

MPN: 3842993715
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993715?

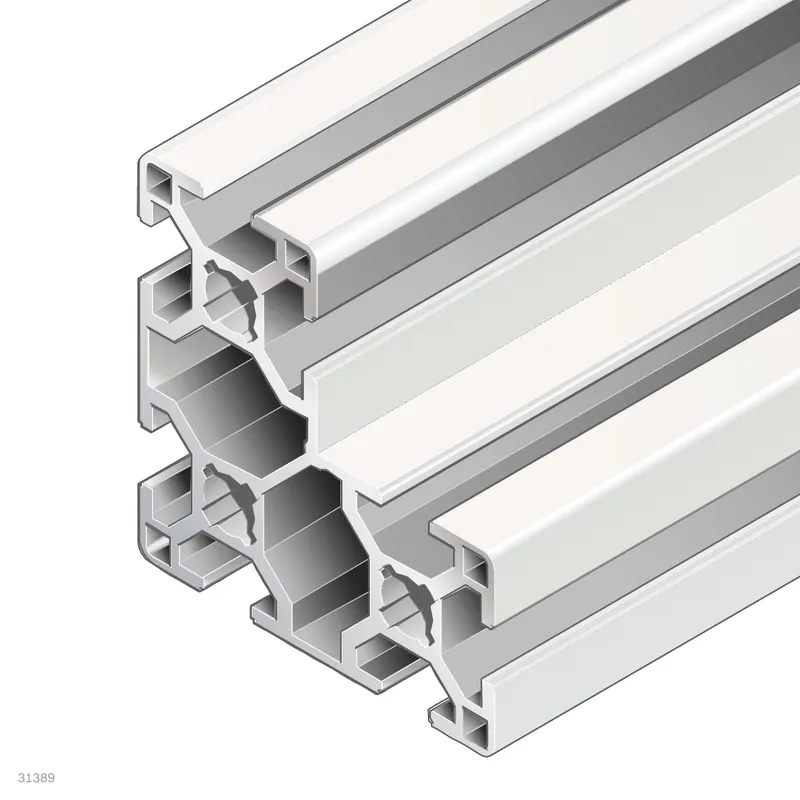

Strut profile 30x60x60 Q&E

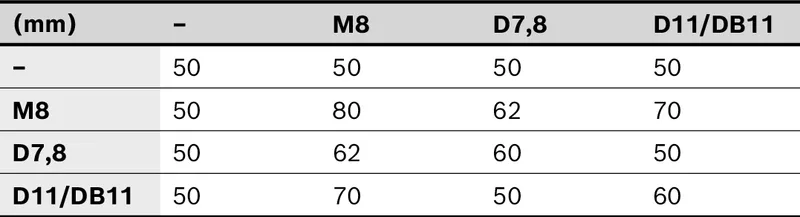

Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing

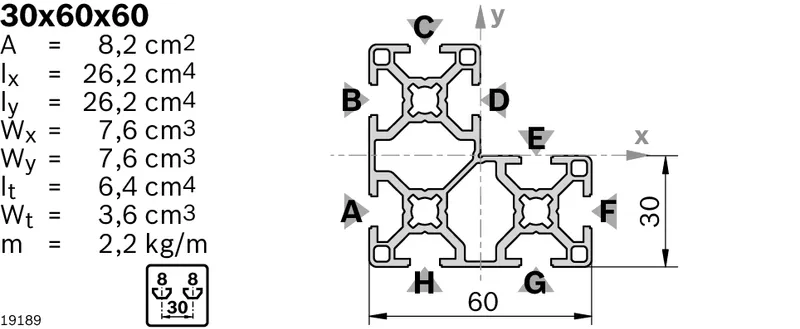

Cross-section	30x60x60
Modular dimension [mm]	30
Profile slot	8
Dimensions	30x60x60
Open slots	8.0
Profile type	angled
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	M8 / D7.8 / D11 / DB11
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	2.2
Area moment of inertia in x-direction [lx] [cm⁴]	26.2
Area moment of inertia in y-direction [ly] [cm⁴]	26.2
Profile surface [A] [cm²]	8.2
Moment of resistance in the x-direction [Wx] [cm³]	7.6
Moment of resistance in the y-direction [Wy] [cm³]	7.6
Torsional moment of inertia [It] [cm⁴]	6.4
Moment of torsion resistance [Wt] [cm³]	3.6
Notice	DGmax = 45°, Lmin1 / Lmin2 = 404/508mm
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	4900
Standard profile finishing [L max] [mm]	6000
Recommended accessories	Cover cap 30x30, black; Cover cap 30x30, signal gray
Weight [kg]	0
