Bosch Rexroth 3842992926

STRUT PROFILE 30X60 M8/M8

MPN: 3842992926
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842992926?

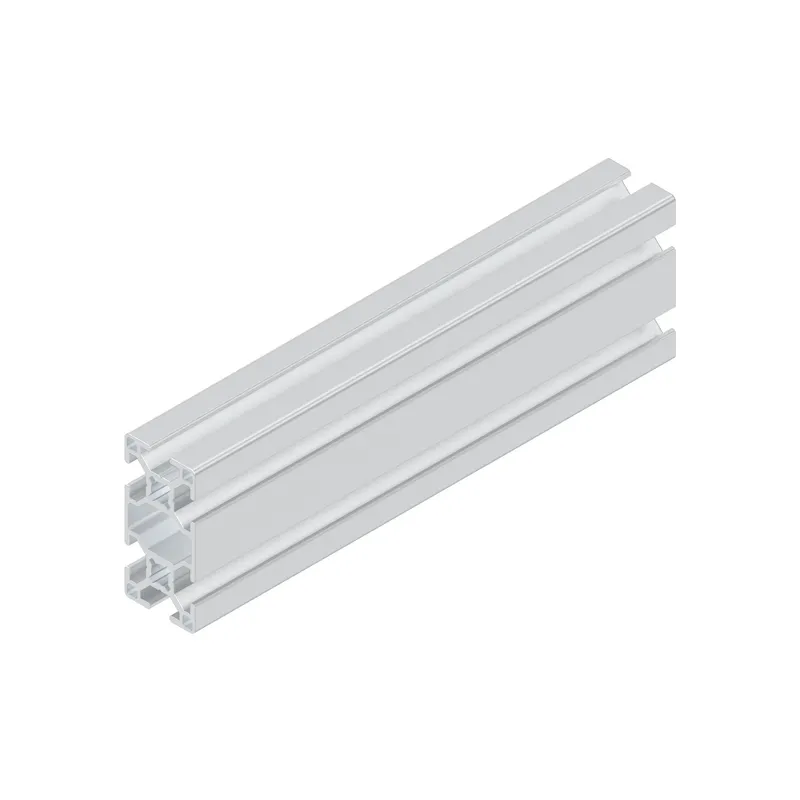

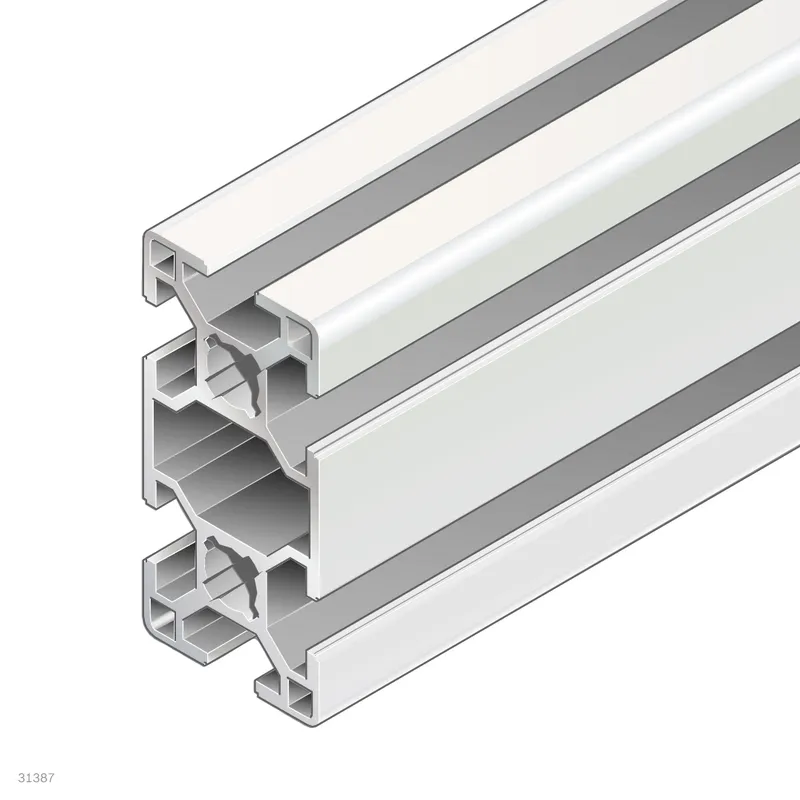

Strut profile 30x60 M8/M8

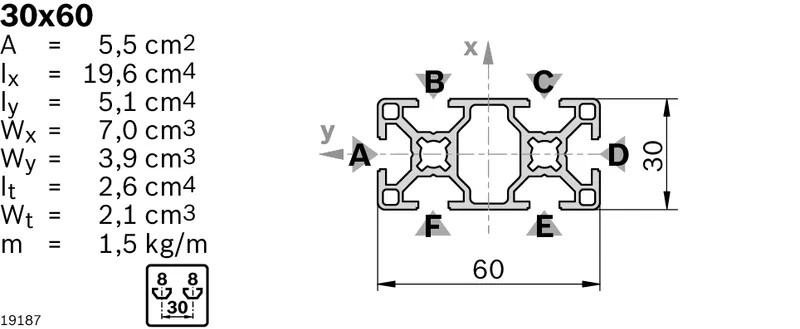

Specifications

Condition on delivery	Profile finishing
Cross-section	30x60
Modular dimension [mm]	30
Profile slot	8
Dimensions	30x60
Open slots	6.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	80
Packaging unit	1
Material	Aluminum, anodized
Mass [m] [kg]	1.5
Area moment of inertia in x-direction [lx] [cm⁴]	19.6
Area moment of inertia in y-direction [ly] [cm⁴]	5.1
Profile surface [A] [cm²]	5.5
Moment of resistance in the x-direction [Wx] [cm³]	7
Moment of resistance in the y-direction [Wy] [cm³]	3.9
Torsional moment of inertia [It] [cm⁴]	2.6
Moment of torsion resistance [Wt] [cm³]	2.1
Profile adaption	D11: in slots B/F, C/E; D11V: in slots A/D; M8: in all core holes
Recommended accessories	Cover cap 30x60, black; Cover cap 30x60, signal gray; Cover cap with hole 30x30, black; Cover cap with hole 30x30, signal gray; Cover cap 30x30, black; Cover cap 30x30, signal gray
Weight [kg]	0
