Electrical accessories for linear axes Parts
























Compare Electrical accessories for linear axes
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Electrical accessories for linear axes | Use | Permissible ambient temperature (min. ... max.) | Operating voltage (min. … max.) | Weight [kg] |
|---|---|---|---|---|---|

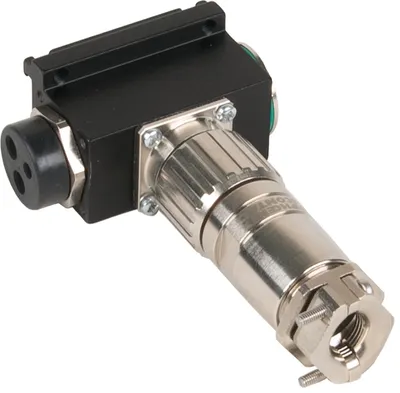

| R117560102 | Socket and connector | Socket and connector | -25 °C ... +85 °C | 10 V DC ... 30 V DC | 0.15 |
| R117500153 | Socket and connector | Socket and connector | -20 °C ... +125 °C | — | 0.23 |
| R141400061 | Socket and connector | Socket and connector | -20 °C ... +125 °C | 10 V DC ... 30 V DC | 0.22 |
| R141400060 | Socket and connector | Socket and connector | — | — | 0.22 |

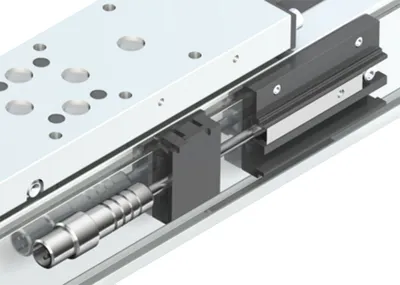

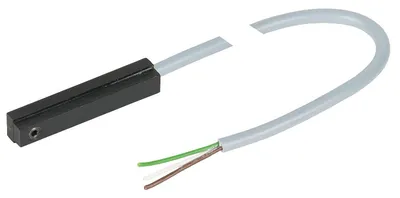

| R913011323 | Magnetic sensors | Reference, limit switch | -40 °C ... +85 °C | 30 V | 0.16 |
| R037530007 | Magnetic sensors | Limit switch | — | — | 0.04 |
| R347601703 | Magnetic sensors | Limit switch | -40 °C ... +85 °C | 3.8 V ... 30 V | 0.01 |
| R037530008 | Magnetic sensors | Reference/limit switch | — | — | 0.03 |
| R913047322 | Passive distributor | — | — | — | 0.01 |
| R117500161 | Control strip with attachments | — | — | — | 0.1 |
| R117500160 | Control strip with attachments | — | — | — | 0.22 |
| R117500159 | Control strip with attachments | — | — | — | 0.19 |
| R901420158 | Inductive sensors | Reference switch | -40 °C ... +70 °C | 10 V ... 30 V | 0.02 |
| R345304004 | Inductive sensors | Reference switch | -40 °C ... +70 °C | 10 V DC ... 30 V DC | 0.06 |
| R901420156 | Inductive sensors | Reference switch | -40 °C ... +70 °C | 10 V ... 30 V | 0.02 |
| R345304003 | Inductive sensors | Reference switch | -40 °C ... +70 °C | 10 V DC ... 30 V DC | 0.06 |
| R901420152 | Inductive sensors | Limit switch | -40 °C ... +70 °C | 10 V ... 30 V | 0.03 |
| R345304002 | Inductive sensors | Limit switch | -40 °C ... +70 °C | 10 V DC ... 30 V DC | 0.06 |
| R901420149 | Inductive sensors | Limit switch | -40 °C ... +70 °C | 10 V ... 30 V | 0.02 |
| R345304001 | Inductive sensors | Limit switch | -40 °C ... +70 °C | 10 V DC ... 30 V DC | 0.06 |

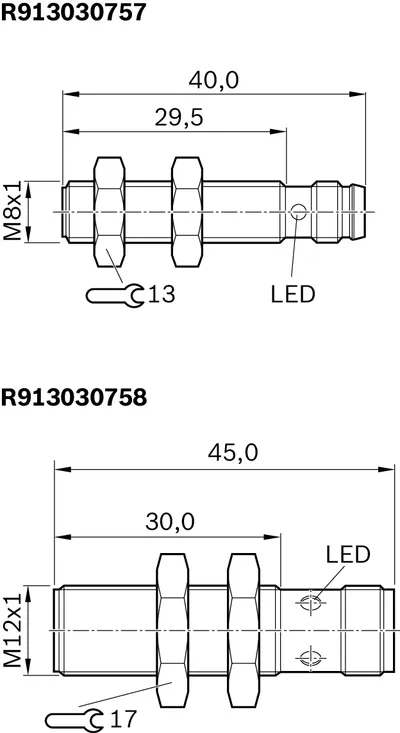

| R913030758 | Proximity switch | Reference switch | -25 °C ... +70 °C | 10 V DC ... 30 V DC | 0.03 |
| R913030757 | Proximity switch | Limit switch | -25 °C ... +70 °C | 10 V DC ... 30 V DC | 0.02 |

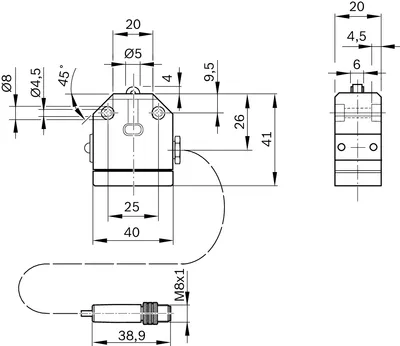

| R913048217 | Mechanical switch with M8x1 connector | Limit switch | -5 °C ... +70 °C | 10 V DC ... 30 V DC | 0.08 |
| R913048216 | Mechanical switch with M8x1 connector | Reference switch | -5 °C ... +70 °C | 10 V DC ... 30 V DC | 0.08 |
