Bosch Rexroth R901420158

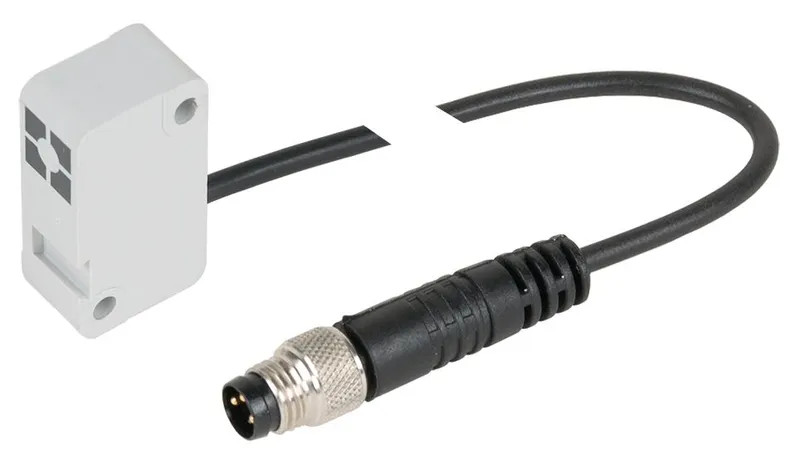

PROXIMITY SWITCH BES517-399-NO-C-S49-00,2

MPN: R901420158
Category: Electrical accessories for linear axes

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901420158?

Bosch Rexroth PROXIMITY SWITCH BES517-399-NO-C-S49-00,2, manufacturer part number R901420158. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Electrical accessories for linear axes	Inductive sensors
Use	Reference switch
Connection type	Cable 0.2 m and connector M8 x 1, 3-pin with knurled screw
Switching function version	NPN/NO
Permissible ambient temperature (min. ... max.)	-40 °C ... +70 °C
Cable cross-section	3 x 0.14 mm²
Operating voltage (min. … max.)	10 V ... 30 V
Dynamic bending radius [mm]	12
Static bending radius [mm]	12
Bending cycles	‒
Weight [kg]	0.02
Function indicator	yes
Functional principle	inductive
Dynamic bending radius footnote	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote bending radius, static	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Bending cycles footnote	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote cable diameter d with tolerance	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote cable cross-section	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Suitable for drag chains footnote	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Weld spark-resistant footnote	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Torsion-resistant footnote	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Cable diameter D [mm]	3.5
Cable diameter D tolerance [mm]	±0.15
Short-circuit protection	yes
Load current [A]	≤200
Maximum permissible starting speed	depending on the length of the switching cam
Mean time to dangerous failure (MTTFd) [Years]	585
Switching frequency [Hz]	2500
Suitable for drag chains	No
Protection class	IP65
Weld spark-resistant	no
Torsion-resistant	no
Reverse polarity protection	yes
