Bosch Rexroth R345304002

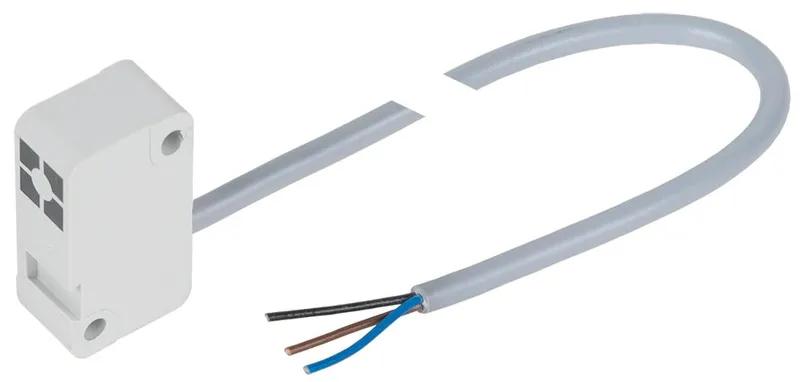

PROXIMITY SWITCH BES517-352-NO-C-03

MPN: R345304002
Category: Electrical accessories for linear axes

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R345304002?

Bosch Rexroth PROXIMITY SWITCH BES517-352-NO-C-03, manufacturer part number R345304002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Electrical accessories for linear axes	Inductive sensors
Use	Limit switch
Connection type	Line 3 m, 3-pin, free line end
Switching function version	NPN/NC
Permissible ambient temperature (min. ... max.)	-40 °C ... +70 °C
Cable cross-section	3 x 0.14 mm²
Operating voltage (min. … max.)	10 V DC ... 30 V DC
Dynamic bending radius [mm]	12
Static bending radius [mm]	12
Bending cycles	‒
Weight [kg]	0.06
Function indicator	yes
Functional principle	inductive
Bending radius for flexible installation footnote	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote bending radius, static	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Bending cycles footnote	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote cable diameter d with tolerance	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote cable cross-section	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Suitable for drag chains footnote	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Weld spark-resistant footnote	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Torsion-resistant footnote	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Cable diameter D [mm]	3.5
Cable diameter D tolerance [mm]	±0.15
Compatible	CKK, CKR, MKK, MKR, MLR, OBB, TKK
Short-circuit protection	no
Load current [A]	≤200
Mean time to dangerous failure (MTTFd) [Years]	585
Switching frequency [Hz]	2500
Suitable for drag chains	No
Protection class	IP65
Weld spark-resistant	yes
Torsion-resistant	yes
Reverse polarity protection	no
