Bosch Rexroth R913048216

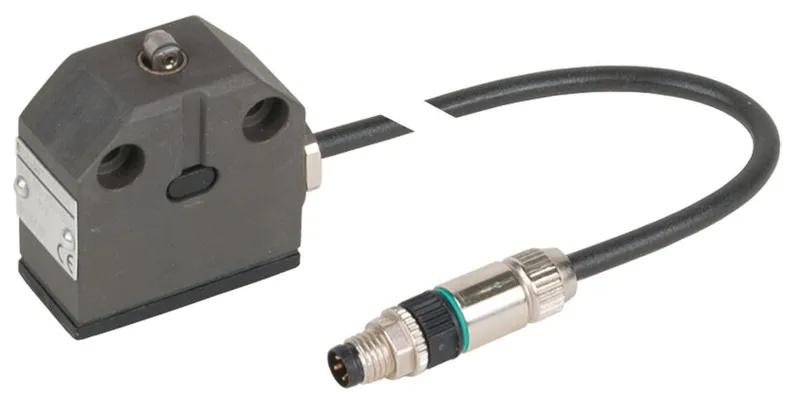

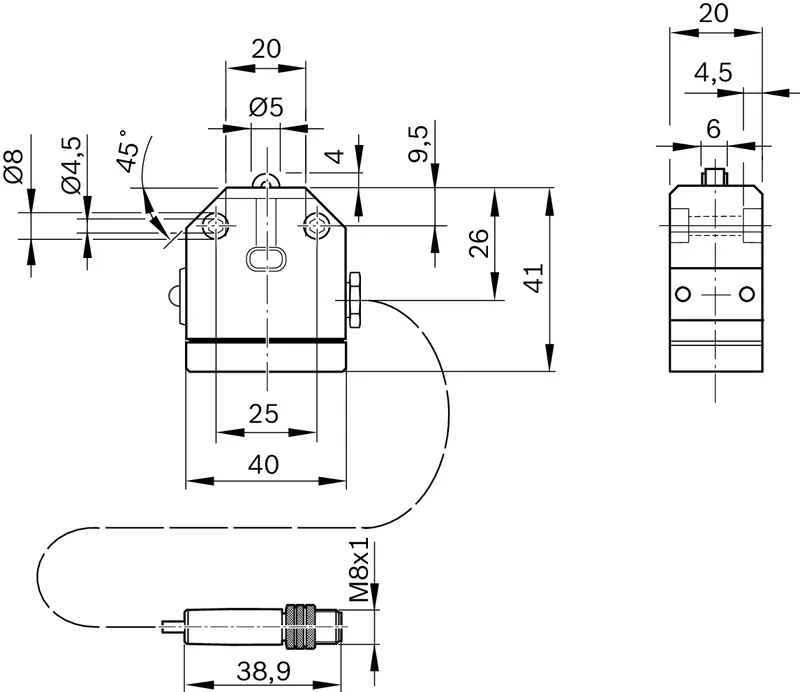

POSITION SWITCH BNS 819-X1003-99-R-10

MPN: R913048216
Category: Electrical accessories for linear axes

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R913048216?

Bosch Rexroth POSITION SWITCH BNS 819-X1003-99-R-10, manufacturer part number R913048216. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Electrical accessories for linear axes	Mechanical switch with M8x1 connector
Use	Reference switch
Connection type	Cable 0.2 m and connector M8 x 1, 3-pin with knurled screw
Switching function version	NPN/NO
Permissible ambient temperature (min. ... max.)	-5 °C ... +70 °C
B10d value	5x10<sup>6</sup> (wet area); 10x10<sup>6</sup> (dependent on current load (dry area))
Operating voltage (min. … max.)	10 V DC ... 30 V DC
Dynamic bending radius [mm]	12
Static bending radius [mm]	12
Bending cycles	‒
Weight [kg]	0.08
Functional principle	mechanical, roller
Bending radius for flexible installation footnote	Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote bending radius, static	Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Bending cycles footnote	Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote cable diameter d with tolerance	Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote cable cross-section	Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Suitable for drag chains footnote	Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Weld spark-resistant footnote	Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Torsion-resistant footnote	Technical data only for the cast-on connection line at the mechanical switch. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Cable diameter D [mm]	4.3
Cable diameter D tolerance [mm]	±0.2
Compatible	CKK, CKR, MKK/MKR-065/080/110/145/165, MLR-080/110, OBB, TKL
Short-circuit protection	yes
Load current [A]	≤0.2
Max. permissible approach speed [m/s]	1
Switching frequency [Hz]	3300
Suitable for drag chains	No
Protection class	IP65
Weld spark-resistant	yes
Torsion-resistant	yes
Reverse polarity protection	yes
