Bosch Rexroth R117560102

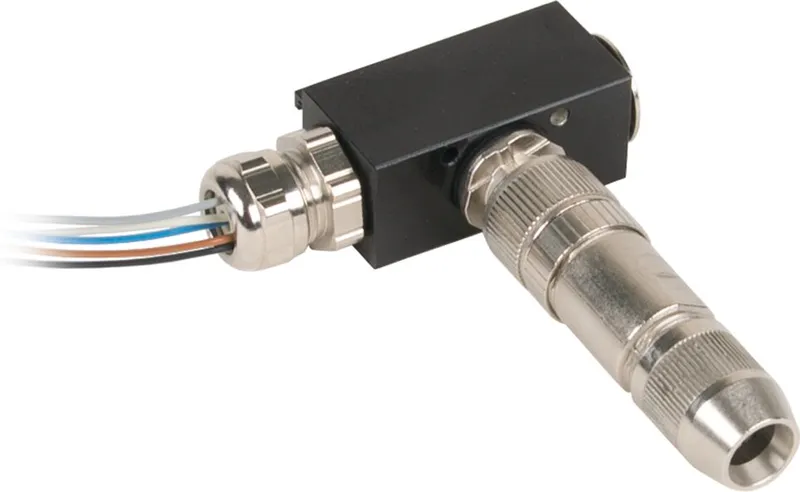

SOCKET-PLUG-COMBINATION BG.

MPN: R117560102
Category: Electrical accessories for linear axes

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R117560102?

Bosch Rexroth SOCKET-PLUG-COMBINATION BG., manufacturer part number R117560102. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Connection type 1	Male connector, straight, M12x1, 5-pin, spring-cage connection
Electrical accessories for linear axes	Socket and connector
Use	Socket and connector
Connection type 2	Coupling / flange socket M12x1, 5-pin, with 0.5 m cable
Version	angled, for suspension in the lateral slot of the linear motion system
Connection cross-section (min. … max.)	0.14 mm² ... 0.5 mm²
Certifications and approvals	‒
Permissible ambient temperature (min. ... max.)	-25 °C ... +85 °C
Operating voltage (min. … max.)	10 V DC ... 30 V DC
Designation	for CKK/CKR-070, MKK/MKR-040
Weight [kg]	0.15
Cable diameter D (min. … max.)	4 mm ... 8 mm
Housing cable bushing	Cable gland M16x1.5 with seal (bore 3x3.5 mm) incl. cap and blind plug
Cable bushing, connector	Bolting with pull relief
Maximum operating current per contact [A]	4
Protection class	‒
