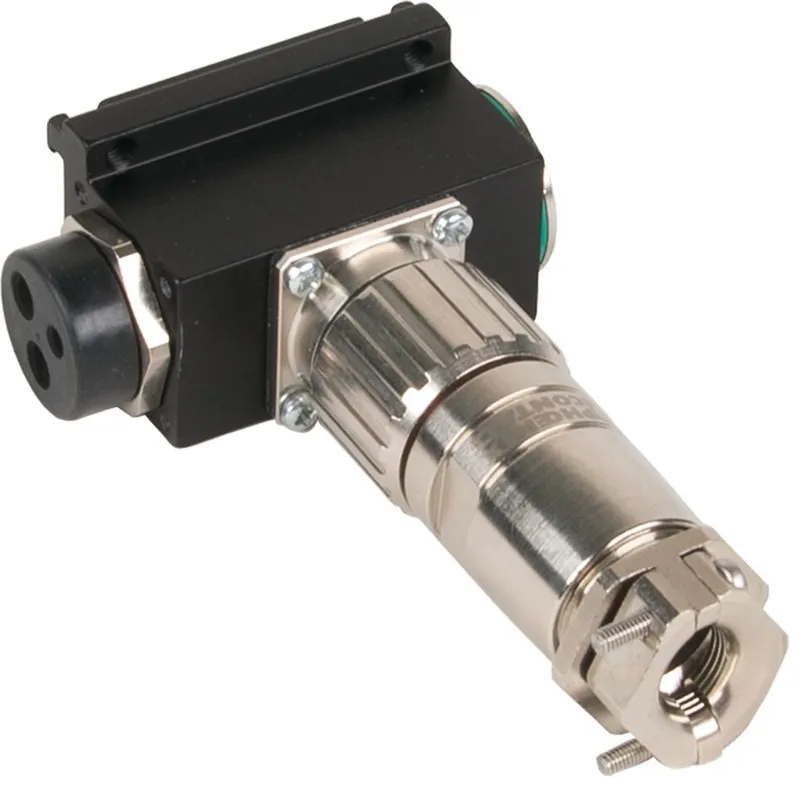

Bosch Rexroth R117500153

SOCKET-PLUG-COMBINATION BG.

MPN
R117500153
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R117500153?

Bosch Rexroth SOCKET-PLUG-COMBINATION BG., manufacturer part number R117500153. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Connection type 1Male connector, straight, 16-pin, soldered connection
Electrical accessories for linear axesSocket and connector
UseSocket and connector
Connection type 2Coupling / flange socket, 16-pin, soldered connection
Versionangled, for suspension in the lateral slot of the linear motion system
Connection cross-section (min. … max.)0.14 mm² ... 1 mm²
Certifications and approvals‒
Permissible ambient temperature (min. ... max.)-20 °C ... +125 °C
Designationfor CKK/CKR-090/110/145/200, MKx-065/080/110/145/165, MLR-080/110, OBB, AGK, TKK
Weight [kg]0.23
Cable diameter D (min. … max.)10 mm ... 14 mm
Housing cable bushing1 seal with bore 2x5.5 mm, 1x3.5 mm 1 adaptable seal, max. 14 mm diameter incl. cap and dummy plug
Cable bushing, connectorBolting with pull relief
Maximum operating current per contact [A]8
Option number17/7
Protection class‒
