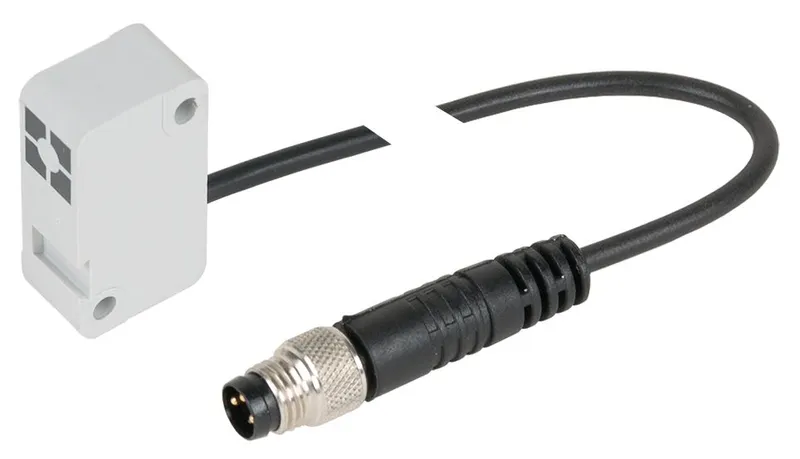

PROXIMITY SWITCH BES517-352-NO-C-S49-00,2

Name: PROXIMITY SWITCH BES517-352-NO-C-S49-00,2
Brand: Bosch Rexroth
SKU: R901420152

MPN: R901420152 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Electrical accessories for linear axes
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R901420152 be shipped?

R901420152 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R901420152 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R901420152 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901420152, subject to availability and destination.

Specifications

Electrical accessories for linear axes	Inductive sensors
Use	Limit switch
Connection type	Cable 0.2 m and connector M8 x 1, 3-pin with knurled screw
Switching function version	NPN/NC
Permissible ambient temperature (min. ... max.)	-40 °C ... +70 °C
Cable cross-section	3 x 0.14 mm²
Operating voltage (min. … max.)	10 V ... 30 V
Dynamic bending radius [mm]	12
Static bending radius [mm]	12
Bending cycles	‒
Weight [kg]	0.03
Function indicator	yes
Functional principle	inductive
Dynamic bending radius footnote	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote bending radius, static	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Bending cycles footnote	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote cable diameter d with tolerance	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote cable cross-section	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Suitable for drag chains footnote	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Weld spark-resistant footnote	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Torsion-resistant footnote	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Cable diameter D [mm]	3.5
Cable diameter D tolerance [mm]	±0.15
Short-circuit protection	yes
Load current [A]	≤200
Maximum permissible starting speed	depending on the length of the switching cam
Mean time to dangerous failure (MTTFd) [Years]	585
Switching frequency [Hz]	2500
Suitable for drag chains	No
Protection class	IP65
Weld spark-resistant	no
Torsion-resistant	no
Reverse polarity protection	yes
