Bosch Rexroth R913011323

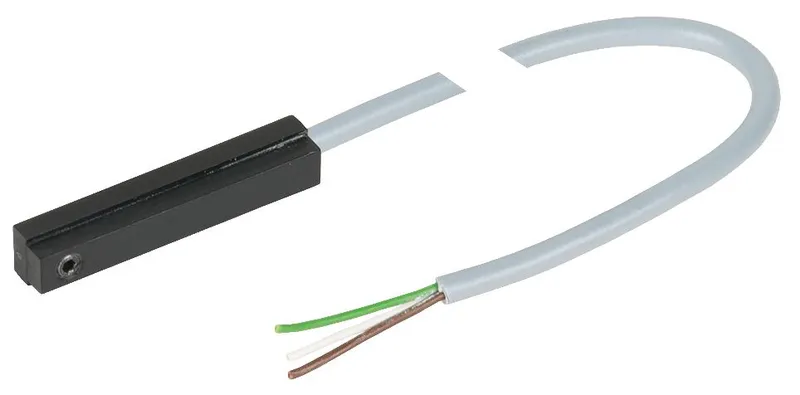

SENSOR REED 636/7-C008-SW

MPN: R913011323
Category: Electrical accessories for linear axes

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R913011323?

Bosch Rexroth SENSOR REED 636/7-C008-SW, manufacturer part number R913011323. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Electrical accessories for linear axes	Magnetic sensors
Use	Reference, limit switch
Connection type	Cable 2.0 m, 3-pin
Galvanized connection ends	no
Switching function version	REED/changeover contact: (NC: C+NC, NO: C+NO)
Certifications and approvals	‒
Permissible ambient temperature (min. ... max.)	-40 °C ... +85 °C
Cable cross-section	3 x 0.14 mm²
Activation point (dimension x) [mm]	9
Operating voltage (min. … max.)	30 V
Dynamic bending radius	‒
Static bending radius	‒
Bending cycles	‒
Weight [kg]	0.16
Switch-on suppression	no
Function indicator	no
Functional principle	magnetic
Dynamic bending radius footnote	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote bending radius, static	Technical data only for the cast-on connection line at the sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Bending cycles footnote	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote cable diameter d with tolerance	Technical data only for the cast-on connection line at the sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote cable cross-section	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Suitable for drag chains footnote	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Weld spark-resistant footnote	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Torsion-resistant footnote	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

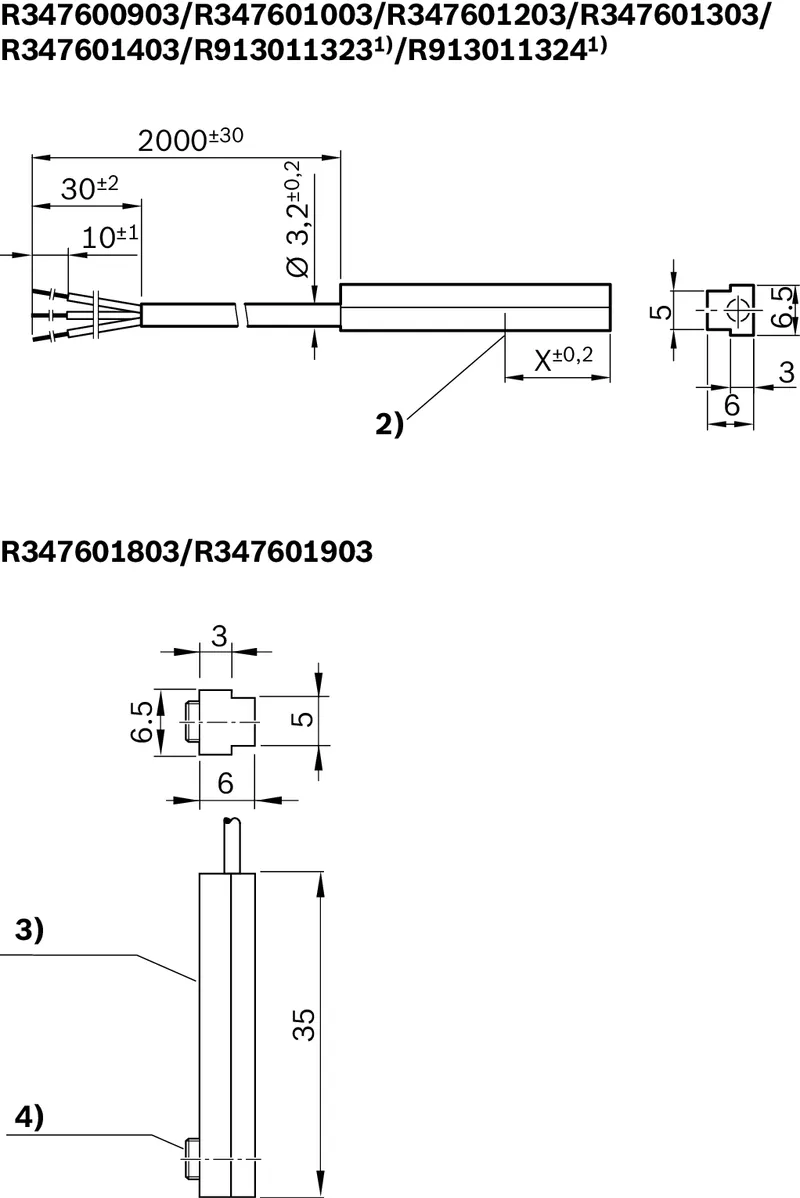

Cable diameter D [mm]	3.2
Cable diameter D tolerance [mm]	±0.2
Compatible	MKK/MKR-040
Short-circuit protection	yes
Load current [A]	500
Max. permissible approach speed [m/s]	2
MTTFd (per EN ISO 13849-1) [Years]	‒
Pulse extension	yes
Suitable for drag chains	No
Protection class	IP66
Weld spark-resistant	yes
Torsion-resistant	yes
Reverse polarity protection	yes
