Linear bushings Parts
Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Maximum dynamic load capacity Cmax [N] | Length of linear bushing [mm] | Weight [kg] | Dimension L [mm] |
|---|---|---|---|---|---|
| R074252000 | 20.0 | 1300.0 | 80.0 | 0.24 | 80 |
| R074221630 | 16.0 | 860.0 | 68.0 | 0.15 | 68 |

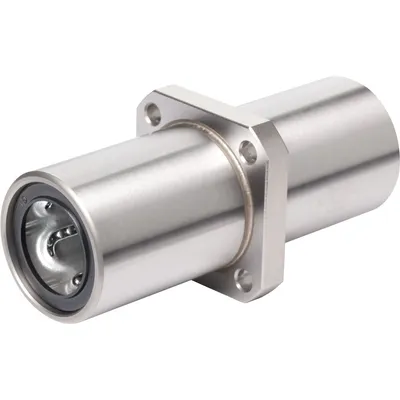

| R074251600 | 16.0 | 860.0 | 68.0 | 0.15 | 68 |
| R074221230 | 12.0 | 750.0 | 61.0 | 0.12 | 61 |
| R074251200 | 12.0 | 750.0 | 61.0 | 0.12 | 61 |
| R074120830 | 8.0 | 390.0 | 46.0 | 0.06 | 46 |
| R074150800 | 8.0 | 390.0 | 46.0 | 0.06 | 46 |
| R074124030 | 40.0 | 3000.0 | 151.0 | 1.63 | 151 |
| R074154000 | 40.0 | 3000.0 | 151.0 | 1.65 | 151 |
| R074123030 | 30.0 | 2150.0 | 123.0 | 0.8 | 123 |
| R074153000 | 30.0 | 2150.0 | 123.0 | 0.79 | 123 |
| R074122530 | 25.0 | 1350.0 | 112.0 | 0.54 | 112 |
| R074152500 | 25.0 | 1350.0 | 112.0 | 0.53 | 112 |
| R074122030 | 20.0 | 1300.0 | 80.0 | 0.24 | 80 |
| R074152000 | 20.0 | 1300.0 | 80.0 | 0.24 | 80 |
| R074121630 | 16.0 | 860.0 | 68.0 | 0.15 | 68 |
| R074151600 | 16.0 | 860.0 | 68.0 | 0.15 | 68 |

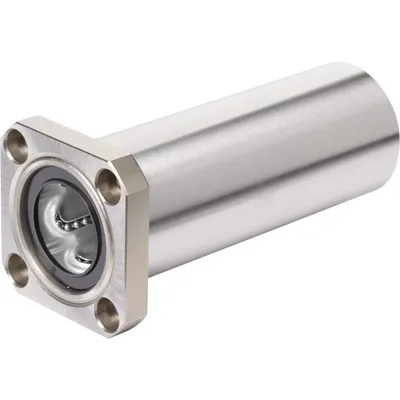

| R074121230 | 12.0 | 750.0 | 61.0 | 0.12 | 61 |
| R074151200 | 12.0 | 750.0 | 61.0 | 0.12 | 61 |

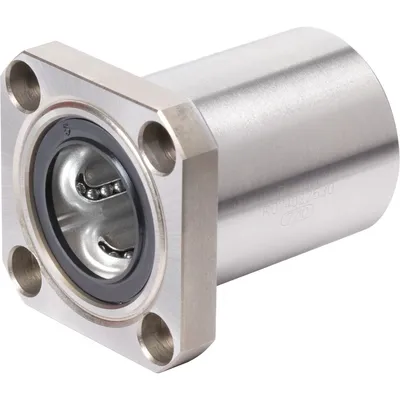

| R074020830 | 8.0 | 240.0 | 25.0 | 0.04 | 25 |
| R074050800 | 8.0 | 240.0 | 25.0 | 0.04 | 25 |
| R074050530 | 5.0 | 185.0 | 22.0 | 0.03 | 22 |
| R074050500 | 5.0 | 185.0 | 22.0 | 0.03 | 22 |
| R074024030 | 40.0 | 1820.0 | 80.0 | 0.98 | 80 |
Common to all listed parts
| Series | Standard (metal) |
| Type | Linear bushing |
| Seal | 2 integrated wiper seals |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Dimension L tolerance [mm] | ±0.3 |
