Linear bushings Parts
Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Maximum dynamic load capacity Cmax [N] | Length of linear bushing [mm] | Outer diameter D [mm] | Breakaway force [N] |
|---|---|---|---|---|---|
| R065825144 | 12.0 | 870.0 | 28.0 | 19.0 | 1.5 |

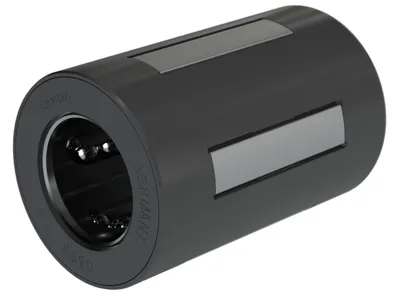

| R065826134 | 10.0 | 500.0 | 26.0 | 17.0 | 1 |
| R065826144 | 10.0 | 720.0 | 26.0 | 17.0 | 1 |
| R065800830 | 8.0 | 410.0 | 24.0 | 15.0 | 0.8 |
| R065820830 | 8.0 | 410.0 | 24.0 | 15.0 | 0.8 |
| R065820840 | 8.0 | 580.0 | 24.0 | 15.0 | 0.8 |
| R065810830 | 8.0 | 410.0 | 24.0 | 15.0 | 0.8 |
| R065810840 | 8.0 | 580.0 | 24.0 | 15.0 | 0.8 |
| R065800800 | 8.0 | 580.0 | 24.0 | 15.0 | 0.8 |
| R065805030 | 50.0 | 5030.0 | 70.0 | 62.0 | 10 |
| R065825030 | 50.0 | 5030.0 | 70.0 | 62.0 | 10 |
| R065825040 | 50.0 | 7180.0 | 70.0 | 62.0 | 10 |

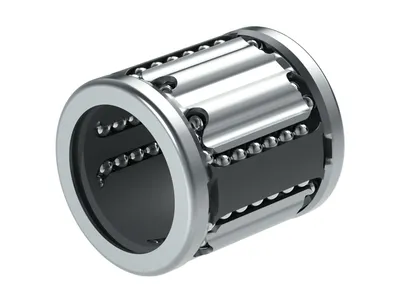

| R065815030 | 50.0 | 5030.0 | 70.0 | 62.0 | 10 |
| R065815040 | 50.0 | 7180.0 | 70.0 | 62.0 | 10 |
| R065805000 | 50.0 | 7180.0 | 70.0 | 62.0 | 10 |
| R065804030 | 40.0 | 4470.0 | 60.0 | 52.0 | 8 |
| R065824030 | 40.0 | 4470.0 | 60.0 | 52.0 | 8 |
| R065824040 | 40.0 | 6380.0 | 60.0 | 52.0 | 8 |
| R065814030 | 40.0 | 4470.0 | 60.0 | 52.0 | 8 |
| R065814040 | 40.0 | 6380.0 | 60.0 | 52.0 | 8 |
| R065804000 | 40.0 | 6380.0 | 60.0 | 52.0 | 8 |
| R065803030 | 30.0 | 2700.0 | 50.0 | 40.0 | 6 |
| R065823030 | 30.0 | 2700.0 | 50.0 | 40.0 | 6 |
| R065823040 | 30.0 | 3250.0 | 50.0 | 40.0 | 6 |
Common to all listed parts
| Format of linear bushings | – Closed |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
