Linear bushings Parts
Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dynamic load capacity C [N] | Outer diameter D [mm] | Weight [kg] | Static load capacity C0 [N] | Dimension D [mm] |
|---|---|---|---|---|---|

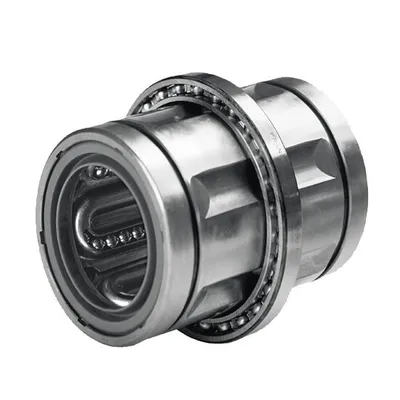

| R066325000 | 8260.0 | 95.0 | 1.33 | 6470.0 | 95 |
| R066324000 | 3870.0 | 78.0 | 0.54 | 3270.0 | 78 |
| R066323000 | 2390.0 | 65.0 | 0.43 | 1960.0 | 65 |
| R066322500 | 1630.0 | 52.0 | 0.2 | 1360.0 | 52 |
| R066322000 | 1020.0 | 47.0 | 0.17 | 870.0 | 47 |
| R066321600 | 720.0 | 42.0 | 0.15 | 620.0 | 42 |

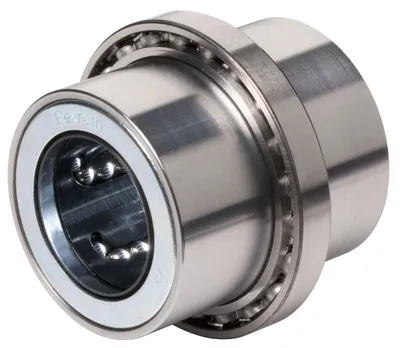

| R066321200 | 480.0 | 37.0 | 0.09 | 420.0 | 37 |
| R066708000 | 21000.0 | 140.0 | 8.17 | 16300.0 | 140 |
| R066508000 | 21000.0 | 140.0 | 8.29 | 16300.0 | 140 |
| R066700800 | 320.0 | 24.0 | 0.05 | 240.0 | 24 |
| R066500800 | 320.0 | 24.0 | 0.04 | 240.0 | 24 |
| R066706000 | 11500.0 | 110.0 | 3.93 | 9160.0 | 110 |
| R066506000 | 11500.0 | 110.0 | 3.78 | 9160.0 | 110 |
| R066705000 | 8260.0 | 92.0 | 2.15 | 6470.0 | 92 |
| R066505000 | 8260.0 | 92.0 | 2.31 | 6470.0 | 92 |
| R066700500 | 180.0 | 19.0 | 0.04 | 140.0 | 19 |
| R066500500 | 180.0 | 19.0 | 0.03 | 140.0 | 19 |

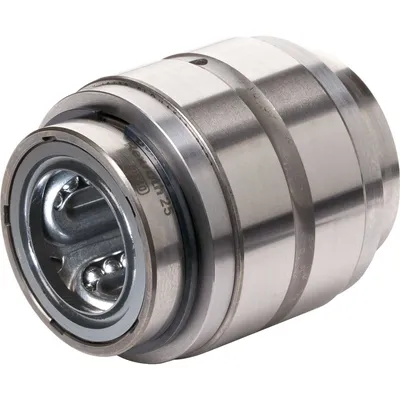

| R066704000 | 5170.0 | 80.0 | 1.43 | 3810.0 | 80 |
| R066504000 | 5170.0 | 80.0 | 1.46 | 3810.0 | 80 |
| R066703000 | 2820.0 | 57.0 | 0.57 | 2230.0 | 57 |
| R066503000 | 2820.0 | 57.0 | 0.58 | 2230.0 | 57 |
| R066702500 | 2080.0 | 50.0 | 0.37 | 1560.0 | 50 |
| R066502500 | 2080.0 | 50.0 | 0.39 | 1560.0 | 50 |
| R066702000 | 1170.0 | 42.0 | 0.21 | 860.0 | 42 |
Common to all listed parts
| Version | Standard |
| Series | Combined linear and rotary motion (rotation) |
| Type | Linear bushing |
| Lubrication | Not lubricated |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
