Linear bushings Parts
Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum dynamic load capacity Cmax [N] | Length of linear bushing [mm] | Outer diameter D [mm] | Weight [kg] | Breakaway force [N] |
|---|---|---|---|---|---|
| R074054000 | 1820.0 | 80.0 | 62.0 | 0.97 | 24 |
| R074023030 | 1320.0 | 68.0 | 47.0 | 0.48 | 18 |
| R074053000 | 1320.0 | 68.0 | 47.0 | 0.48 | 18 |
| R074022530 | 830.0 | 58.0 | 40.0 | 0.31 | 14 |
| R074052500 | 830.0 | 58.0 | 40.0 | 0.31 | 14 |
| R074022030 | 800.0 | 45.0 | 32.0 | 0.16 | 12 |

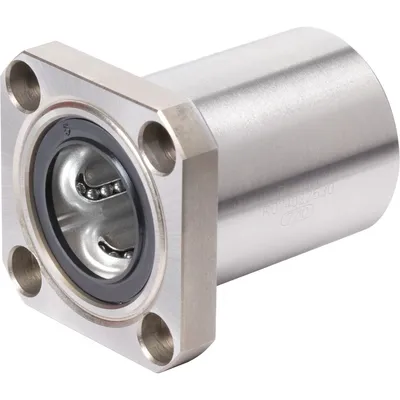

| R074052000 | 800.0 | 45.0 | 32.0 | 0.16 | 12 |
| R074021630 | 530.0 | 36.0 | 26.0 | 0.1 | 9 |
| R074051600 | 530.0 | 36.0 | 26.0 | 0.1 | 9 |
| R074021230 | 460.0 | 32.0 | 22.0 | 0.08 | 6 |
| R074051200 | 460.0 | 32.0 | 22.0 | 0.08 | 6 |

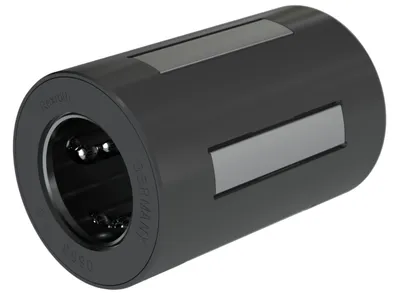

| R065826234 | 410.0 | 24.0 | 15.0 | 0.01 | 0.8 |
| R065826244 | 580.0 | 24.0 | 15.0 | 0.01 | 0.8 |
| R065825634 | 4470.0 | 60.0 | 52.0 | 0.16 | 8 |
| R065825644 | 6380.0 | 60.0 | 52.0 | 0.15 | 8 |

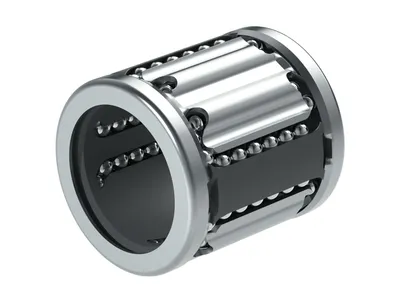

| R065825534 | 2700.0 | 50.0 | 40.0 | 0.09 | 6 |
| R065825544 | 3250.0 | 50.0 | 40.0 | 0.09 | 6 |
| R065825434 | 2050.0 | 40.0 | 35.0 | 0.07 | 4.5 |
| R065825444 | 2930.0 | 40.0 | 35.0 | 0.07 | 4.5 |
| R065825334 | 990.0 | 30.0 | 28.0 | 0.04 | 3 |
| R065825344 | 1410.0 | 30.0 | 28.0 | 0.04 | 3 |
| R065825234 | 780.0 | 30.0 | 24.0 | 0.03 | 2 |
| R065825244 | 1120.0 | 30.0 | 24.0 | 0.03 | 2 |
| R065825134 | 610.0 | 28.0 | 19.0 | 0.02 | 1.5 |
Common to all listed parts
| Type | Linear bushing |
| Seal | 2 integrated wiper seals |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
