Linear bushings Parts
Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Length of linear bushing [mm] | Outer diameter D [mm] | Weight [kg] | Dimension D [mm] |
|---|---|---|---|---|---|
| R066502000 | 20.0 | 45.0 | 42.0 | 0.21 | 42 |
| R066701600 | 16.0 | 36.0 | 34.0 | 0.11 | 34 |

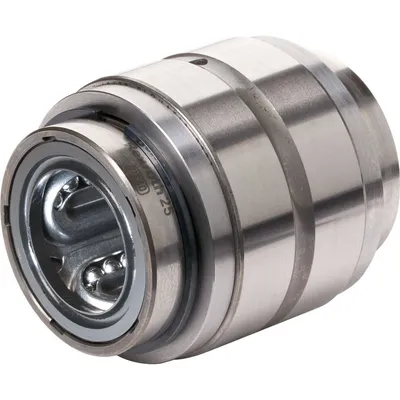

| R066501600 | 16.0 | 36.0 | 34.0 | 0.11 | 34 |
| R066701200 | 12.0 | 32.0 | 30.0 | 0.08 | 30 |
| R066501200 | 12.0 | 32.0 | 30.0 | 0.09 | 30 |
| R067828045 | 80.0 | 200.0 | 145.0 | 10.85 | 145 |
| R067808000 | 80.0 | 200.0 | 145.0 | 10.9 | 145 |
| R067826045 | 60.0 | 150.0 | 110.0 | 4.86 | 110 |
| R067806000 | 60.0 | 150.0 | 110.0 | 4.85 | 110 |
| R067825045 | 50.0 | 125.0 | 90.0 | 2.92 | 90 |
| R067805000 | 50.0 | 125.0 | 90.0 | 2.86 | 90 |
| R067824045 | 40.0 | 100.0 | 75.0 | 1.53 | 75 |
| R067804000 | 40.0 | 100.0 | 75.0 | 1.53 | 75 |

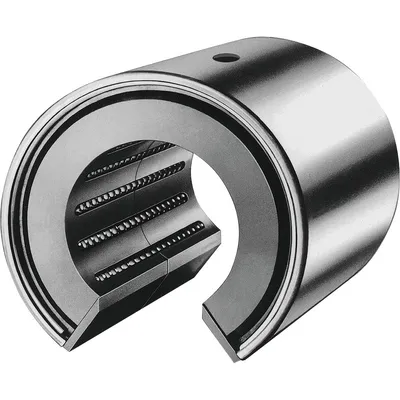

| R067823045 | 30.0 | 75.0 | 60.0 | 0.86 | 60 |
| R067803000 | 30.0 | 75.0 | 60.0 | 0.85 | 60 |
| R074220830 | 8.0 | 46.0 | 16.0 | 0.06 | 16 |
| R074250800 | 8.0 | 46.0 | 16.0 | 0.06 | 16 |
| R074224030 | 40.0 | 151.0 | 62.0 | 1.65 | 62 |
| R074254000 | 40.0 | 151.0 | 62.0 | 1.66 | 62 |
| R074223030 | 30.0 | 123.0 | 47.0 | 0.8 | 47 |
| R074253000 | 30.0 | 123.0 | 47.0 | 0.79 | 47 |
| R074222530 | 25.0 | 112.0 | 40.0 | 0.53 | 40 |
| R074252500 | 25.0 | 112.0 | 40.0 | 0.53 | 40 |

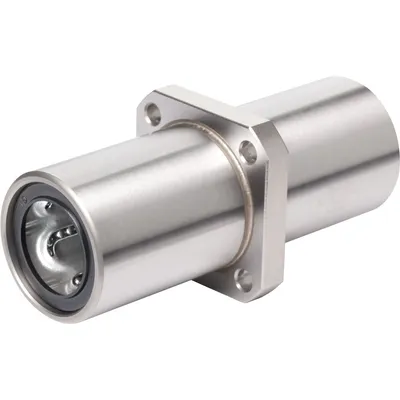

| R074222030 | 20.0 | 80.0 | 32.0 | 0.24 | 32 |
Common to all listed parts
| Type | Linear bushing |
| Lubrication | Not lubricated |
