Linear bushings Parts
Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Maximum dynamic load capacity Cmax [N] | Outer diameter D [mm] | Breakaway force [N] | Dimension D [mm] |
|---|---|---|---|---|---|
| R065811640 | 16.0 | 1120.0 | 24.0 | 2 | 24 |
| R065801600 | 16.0 | 1120.0 | 24.0 | 2 | 24 |
| R065801430 | 14.0 | 630.0 | 21.0 | 1.8 | 21 |
| R065821430 | 14.0 | 630.0 | 21.0 | 1.8 | 21 |
| R065821440 | 14.0 | 900.0 | 21.0 | 1.8 | 21 |
| R065811430 | 14.0 | 630.0 | 21.0 | 1.8 | 21 |
| R065811440 | 14.0 | 900.0 | 21.0 | 1.8 | 21 |
| R065801400 | 14.0 | 900.0 | 21.0 | 1.8 | 21 |
| R065801230 | 12.0 | 610.0 | 19.0 | 1.5 | 19 |
| R065825140 | 12.0 | — | — | — | — |
| R065821230 | 12.0 | 610.0 | 19.0 | 1.5 | 19 |

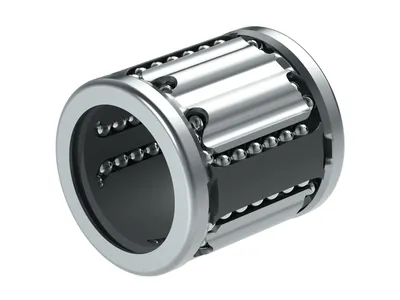

| R065821240 | 12.0 | 870.0 | 19.0 | 1.5 | 19 |
| R065811230 | 12.0 | 610.0 | 19.0 | 1.5 | 19 |
| R065811240 | 12.0 | 870.0 | 19.0 | 1.5 | 19 |
| R065801200 | 12.0 | 870.0 | 19.0 | 1.5 | 19 |
| R065801030 | 10.0 | 500.0 | 17.0 | 1 | 17 |
| R065821030 | 10.0 | 500.0 | 17.0 | 1 | 17 |

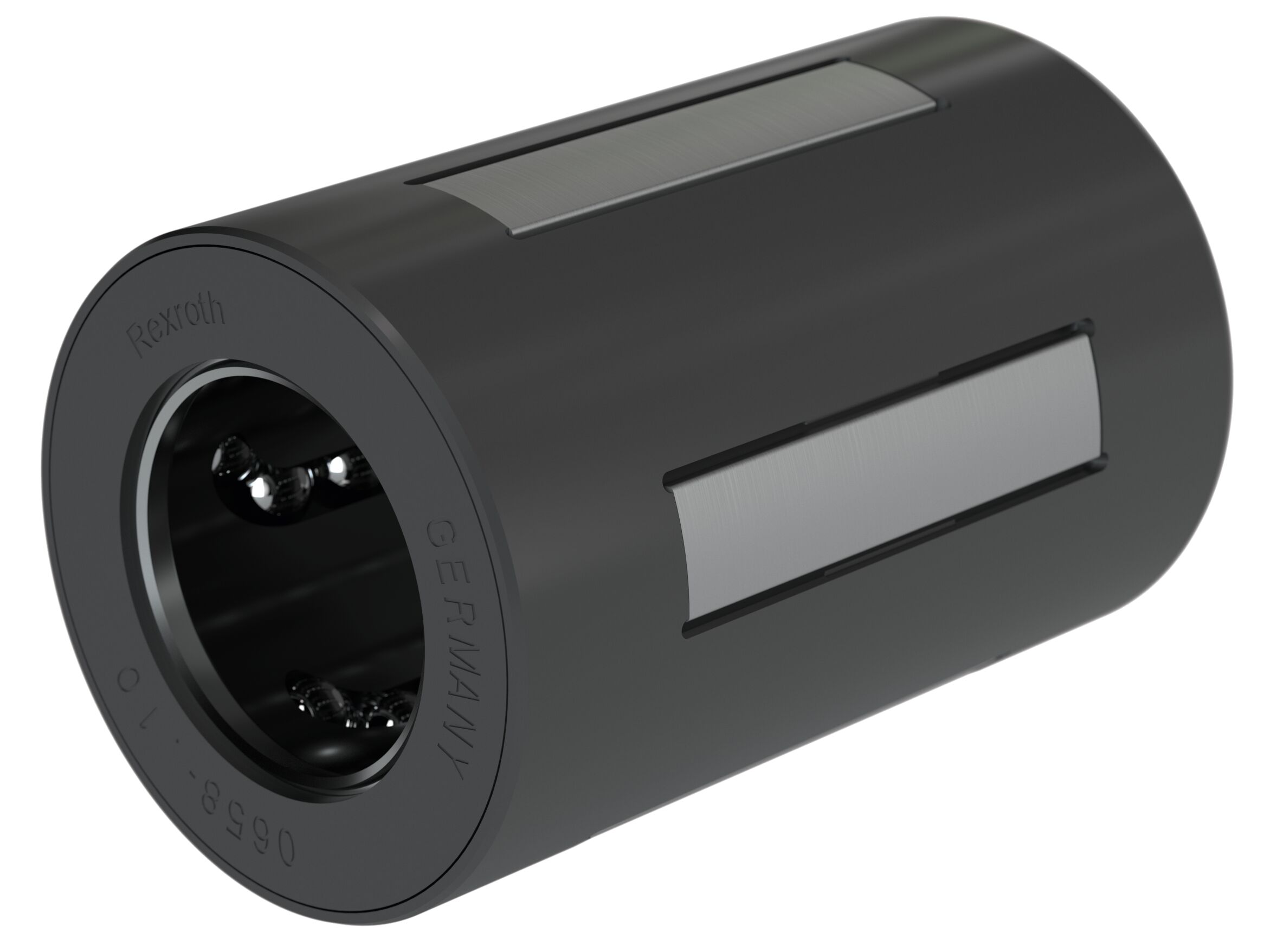

| R065821040 | 10.0 | 720.0 | 17.0 | 1 | 17 |
| R065811030 | 10.0 | 500.0 | 17.0 | 1 | 17 |
| R065811040 | 10.0 | 720.0 | 17.0 | 1 | 17 |
| R065801000 | 10.0 | 720.0 | 17.0 | 1 | 17 |
Common to all listed parts
| Format of linear bushings | – Closed |
| Series | Compact |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
