Bosch Rexroth R074152000

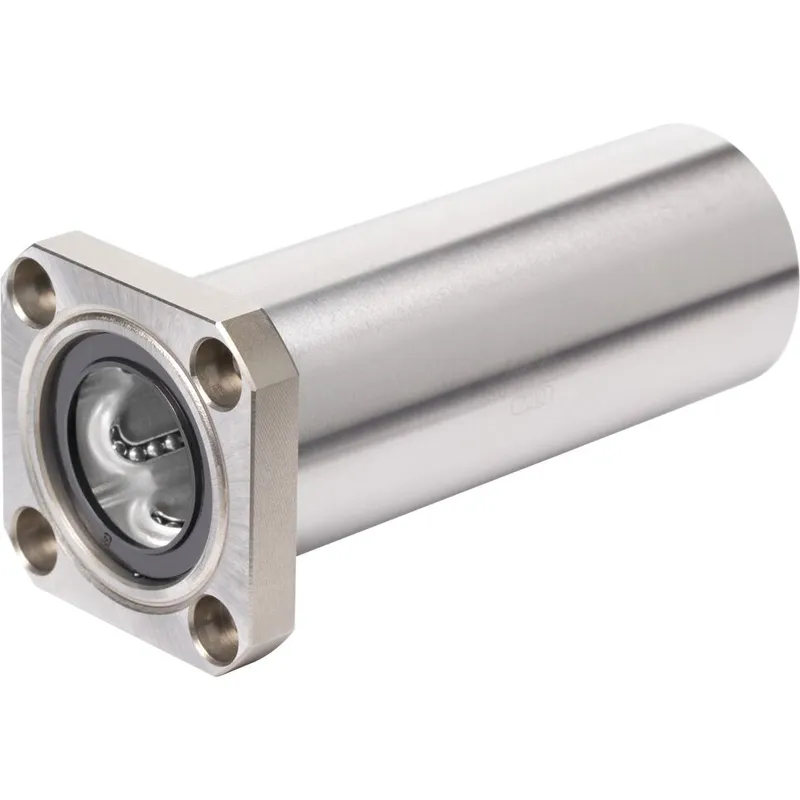

FLANGE LINEAR BUSHING KBMFT-20-DD

MPN: R074152000
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R074152000?

Flange linear bushing

Standard (metal)

Flanged, tandem

Shaft diameter d = 20

With two seals

Version: Standard

Rugged all-metal design for harsh environments and heavy contamination

Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life

For use in woodworking, foundries, cement plants

Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.

Integrated wiper seals

Hardened and ground outer sleeve

POM ball retainer

Balls made of rolling bearing steel

Specifications

Shaft diameter d [mm]	20.0
Version	Standard
Format of linear bushings	FT - Flanged, tandem
Series	Standard (metal)
Type	Linear bushing
Seal	2 integrated wiper seals
Lubrication	Not lubricated
Maximum dynamic load capacity Cmax [N]	1300.0
Maximum acceleration rate amax [m/s²]	100.0
Maximum permissible linear speed vmax [m/s]	2.5
Length of linear bushing [mm]	80.0
Outer diameter D [mm]	32.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	Higher temperatures are only admissible at linear bushings without wiper seals with ball retainers made of steel. Make allowance for reductions in load capacity.
Weight [kg]	0.24
Static longitudinal moment load capacity ML0 [Nm]	26
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote shaft radial clearance h6	Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	12
Dimension B (profiled rail systems) [mm]	42
Dimension D [mm]	32
Dimension D1 [mm]	54
Dimension D2 [mm]	43
Dimension L [mm]	80
Dimension L tolerance [mm]	±0.3
Dimension L1 [mm]	8
Dimension S [mm]	5.5
Dimension V [mm]	5.1
