Bosch Rexroth R074252000

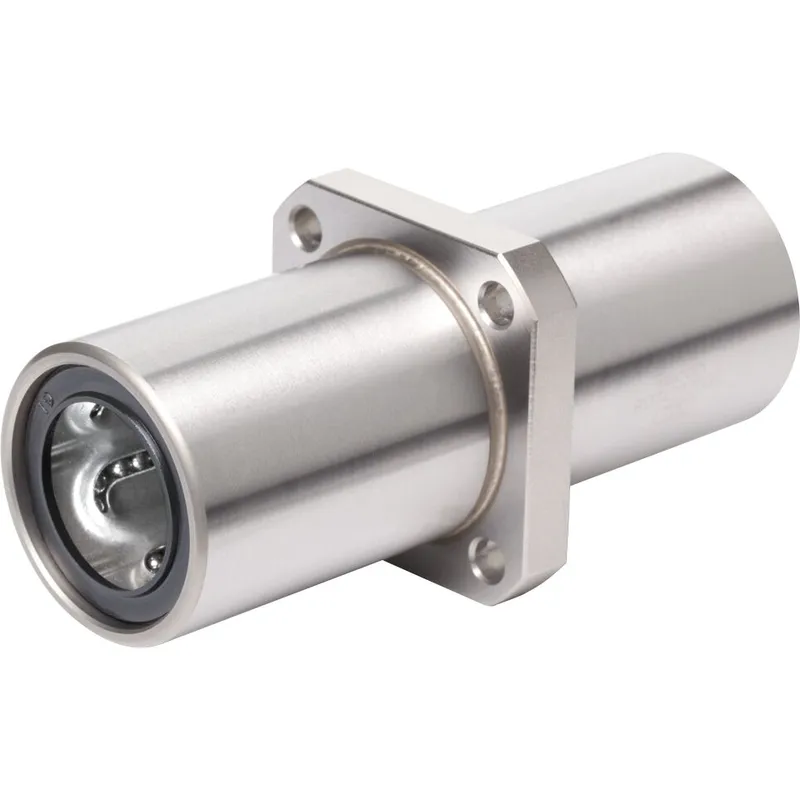

FLANGE LINEAR BUSHING KBMM-20-DD

MPN: R074252000
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R074252000?

Flange linear bushing

Standard (metal)

Central flanged

Shaft diameter d = 20

With two seals

Version: Standard

Rugged all-metal design with steel ball retainer for harsh environments and heavy contamination

Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life

For use in woodworking, foundries, cement plants

Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.

Integrated wiper seals

Hardened and ground outer sleeve

POM ball retainer

Balls made of rolling bearing steel

Specifications

Shaft diameter d [mm]	20.0
Version	Standard
Format of linear bushings	M - Central flanged
Series	Standard (metal)
Type	Linear bushing
Seal	2 integrated wiper seals
Lubrication	Not lubricated
Maximum dynamic load capacity Cmax [N]	1300.0
Maximum acceleration rate amax [m/s²]	100.0
Maximum permissible linear speed vmax [m/s]	2.5
Length of linear bushing [mm]	80.0
Outer diameter D [mm]	32.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.
Weight [kg]	0.24
Static longitudinal moment load capacity ML0 [Nm]	26
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote shaft radial clearance h6	Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	12
Dimension B (profiled rail systems) [mm]	42
Dimension D [mm]	32
Dimension D1 [mm]	54
Dimension D2 [mm]	43
Dimension L [mm]	80
Dimension L tolerance [mm]	±0.3
Dimension L1 [mm]	8
Dimension L2 [mm]	36
Dimension S [mm]	5.5
Dimension V [mm]	5.1
