Linear bushings Parts
Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Length of linear bushing [mm] | Outer diameter D [mm] | Weight [kg] | Dimension D [mm] |
|---|---|---|---|---|---|
| R066804000 | 40.0 | 56.0 | 56.0 | 0.19 | 56 |
| R066803030 | 30.0 | 44.0 | 44.0 | 0.11 | 44 |

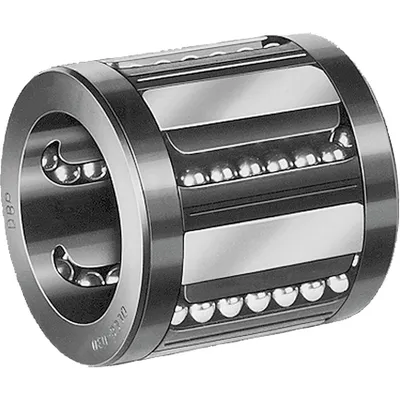

| R066803000 | 30.0 | 44.0 | 44.0 | 0.11 | 44 |
| R066802530 | 25.0 | 37.0 | 37.0 | 0.07 | 37 |
| R066802500 | 25.0 | 37.0 | 37.0 | 0.07 | 37 |
| R066802030 | 20.0 | 30.0 | 30.0 | 0.04 | 30 |
| R066802000 | 20.0 | 30.0 | 30.0 | 0.04 | 30 |
| R066801630 | 16.0 | 28.0 | 25.0 | 0.03 | 25 |
| R066801600 | 16.0 | 28.0 | 25.0 | 0.03 | 25 |
| R066801230 | 12.0 | 24.0 | 20.0 | 0.02 | 20 |
| R066801200 | 12.0 | 24.0 | 20.0 | 0.02 | 20 |
| R066420800 | 8.0 | 25.0 | 42.0 | 0.12 | 42 |
| R066426000 | 60.0 | 125.0 | 140.0 | 3.16 | 140 |
| R066425000 | 50.0 | 100.0 | 115.0 | 1.85 | 115 |
| R066420500 | 5.0 | 22.0 | 28.0 | 0.07 | 28 |
| R066424000 | 40.0 | 66.0 | 95.0 | 0.88 | 95 |
| R066423000 | 30.0 | 54.0 | 80.0 | 0.61 | 80 |

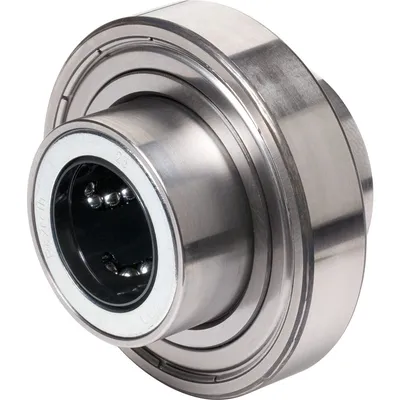

| R066422500 | 25.0 | 45.0 | 68.0 | 0.37 | 68 |
| R066422000 | 20.0 | 38.0 | 62.0 | 0.31 | 62 |
| R066421600 | 16.0 | 34.0 | 55.0 | 0.21 | 55 |
| R066421200 | 12.0 | 30.0 | 47.0 | 0.15 | 47 |
| R066328000 | 80.0 | 165.0 | 150.0 | 5.3 | 150 |

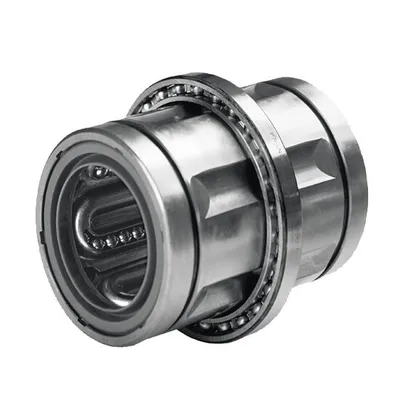

| R066320800 | 8.0 | 25.0 | 32.0 | 0.07 | 32 |
| R066326000 | 60.0 | 125.0 | 115.0 | 2.35 | 115 |
Common to all listed parts
| Type | Linear bushing |
| Lubrication | Not lubricated |
