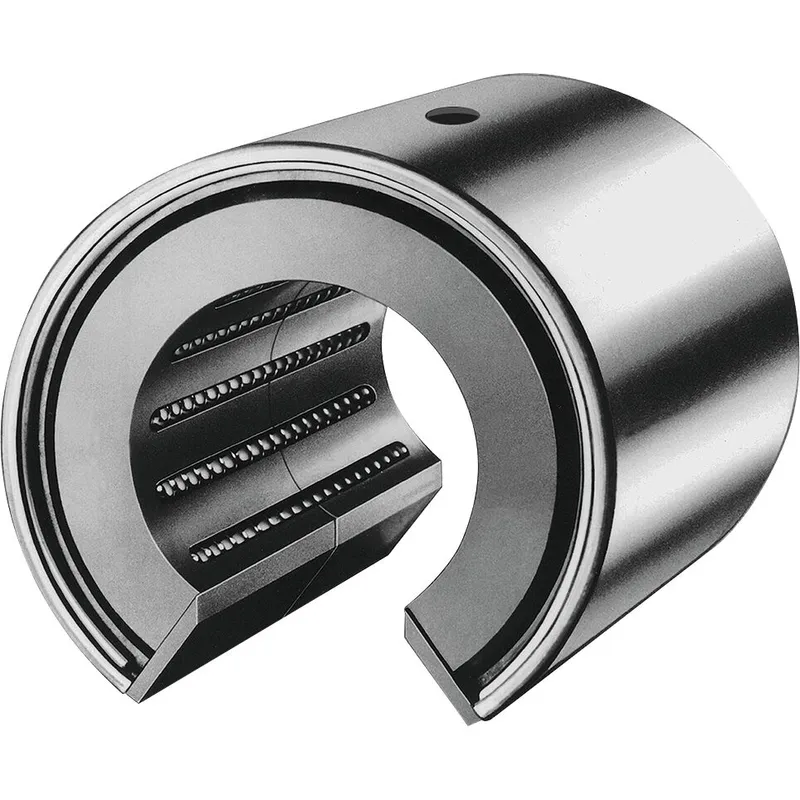

What is the Bosch Rexroth R067808000?

radial linear bushing

Shaft diameter d = 80

Without seal

High-precision linear bushing for moving very heavy loads

Radial ball redirection allows numerous rows of balls and extremely high load ratings

Heavy-duty guide with degrees of freedom in circumferential direction

For applications where other linear guides tend to warp due to imprecise substructures.

Very high rigidity

Extra smooth running

Fully sealed or without wiper seals

Separate wiper seals optional

Relubricatable

Hardened and machined steel sleeve

Ball retainer made of reinforced PA

Balls made of rolling bearing steel

Two retaining rings

Specifications

Shaft diameter d [mm]	80.0
Version	Standard
Format of linear bushings	O - Open
Series	Radial
Type	Linear bushing
Seal	Without wiper seals
Lubrication	Not lubricated
Dynamic load capacity C [N]	54800.0
Note: dynamic load capacity C	The stated load capacities apply for the main direction of loading ρ = 0°.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	2.0
Length of linear bushing [mm]	200.0
Outer diameter D [mm]	145.0
Permissible ambient temperature (min. ... max.)	-20 °C ... +100 °C
Friction coefficient μ	0.001 ... 0.002
Note: friction coefficient μ	Friction coefficients of unsealed radial linear bushings when lubricated with oil.
Weight [kg]	10.9
Static load capacity C0 [N]	61500.0
Note: static load capacity C0	The stated load capacities apply for the main direction of loading ρ = 0°.
Footnote shaft radial clearance h6/bore JS6	Observe the reduction in service life owing to high preload
Footnote shaft radial clearance h6/bore K6	Observe the reduction in service life owing to high preload
Footnote friction force FR	Frictional drag for linear bushings with separate wiper seals
Breakaway force [N]	60
Dimension C h11 [mm]	200
Dimension D [mm]	145
Dimension S1 (profiled rail systems) [mm]	4
Dimension W [mm]	39
