Bosch Rexroth R066502000
ROTARY LINEAR BUSHING KBRON-20
- MPN
- R066502000
- Category
- Linear bushings
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R066502000?
Rotary motion linear bushing
Needle bearing
Shaft diameter d = 20
Without seal
Linear bushing with needle bearing
Precise guiding at high load rating
High speed and low friction
For linear applications with additional rotary motion
For grip and swivel functions
For winding applications
standard linear bushing (closed)
Steel intermediate rings
Retaining rings
Specifications
Specifications
| Shaft diameter d [mm] | 20.0 |
| Version | Standard |
| Format of linear bushings | N - With needle bearing |
| Series | Combined linear and rotary motion (rotation) |
| Type | Linear bushing |
| Seal | Without wiper seals |
| Lubrication | Not lubricated |
| Dynamic load capacity C [N] | 1170.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Length of linear bushing [mm] | 45.0 |
| Outer diameter D [mm] | 42.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.21 |
| Static load capacity C0 [N] | 860.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Retaining ring footnote | Seeger-Orbis GmbH |

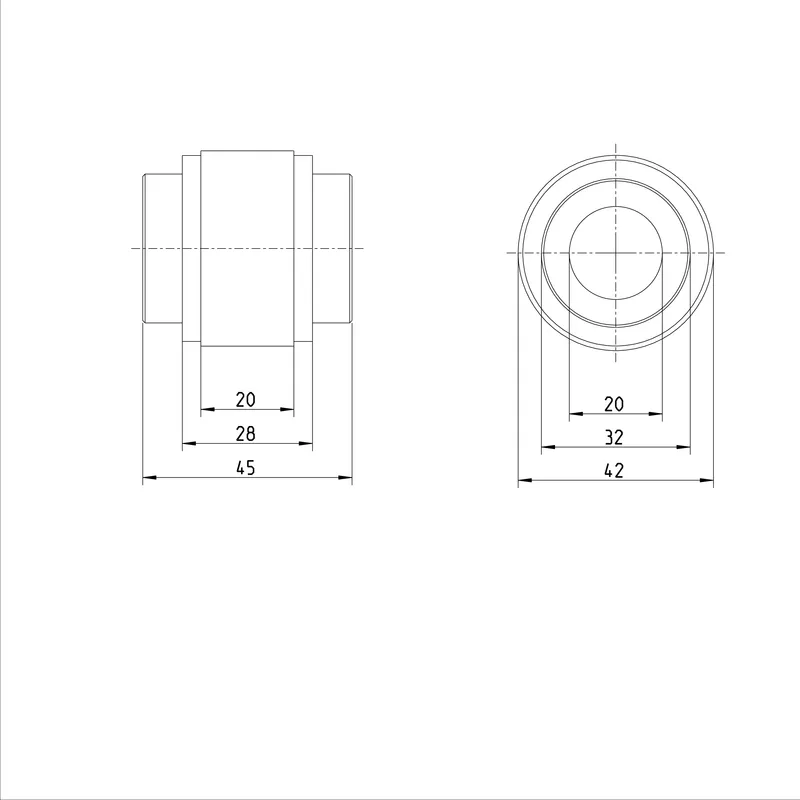

| Dimension A (profiled rail systems) [mm] | 28 |
| Dimension B (profiled rail systems) [mm] | 45 |
| Dimension b [mm] | 20 |
| Dimension C3 H12 [mm] | 31.2 |
| Dimension C4 H13 [mm] | 1.6 |
| Dimension D [mm] | 42 |
| Dimension D1 [mm] | 32 |
| Dimension D2 [mm] | 35.1 |
| Dimension D3 [mm] | 40 |
