Linear bushings Parts
Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Maximum dynamic load capacity Cmax [N] | Length of linear bushing [mm] | Weight [kg] | Dimension D1 [mm] |
|---|---|---|---|---|---|

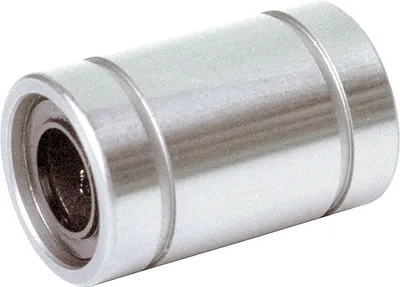

| R060202530 | 25.0 | 830.0 | 58.0 | 0.24 | 37.5 |
| R060202510 | 25.0 | 2480.0 | 58.0 | 0.19 | 38.5 |

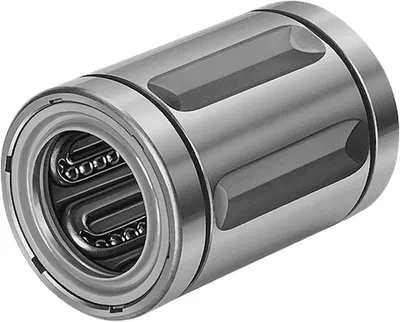

| R060102510 | 25.0 | 2480.0 | 58.0 | 0.19 | 38.5 |
| R060002500 | 25.0 | 2480.0 | 58.0 | 0.19 | 38.5 |
| R060002030 | 20.0 | 800.0 | 45.0 | 0.11 | 30.3 |
| R060202030 | 20.0 | 800.0 | 45.0 | 0.11 | 30.3 |
| R060202010 | 20.0 | 1390.0 | 45.0 | 0.1 | 30.5 |
| R060102010 | 20.0 | 1390.0 | 45.0 | 0.1 | 30.5 |
| R060002000 | 20.0 | 1390.0 | 45.0 | 0.1 | 30.5 |
| R060001630 | 16.0 | 530.0 | 36.0 | 0.07 | 24.9 |
| R060201630 | 16.0 | 530.0 | 36.0 | 0.07 | 24.9 |
| R060201610 | 16.0 | 670.0 | 36.0 | 0.06 | 24.9 |
| R060101610 | 16.0 | 670.0 | 36.0 | 0.06 | 24.9 |
| R060001600 | 16.0 | 670.0 | 36.0 | 0.06 | 24.9 |
| R060001230 | 12.0 | 460.0 | 32.0 | 0.05 | 21 |
| R060201230 | 12.0 | 460.0 | 32.0 | 0.05 | 21 |
| R060201210 | 12.0 | 480.0 | 32.0 | 0.04 | 20.5 |
| R060101210 | 12.0 | 480.0 | 32.0 | 0.04 | 20.5 |
| R060001200 | 12.0 | 480.0 | 32.0 | 0.04 | 20.5 |
| R060001030 | 10.0 | 350.0 | 29.0 | 0.04 | 18 |
| R060201030 | 10.0 | 350.0 | 29.0 | 0.04 | 18 |
| R060231010 | 10.0 | 350.0 | 29.0 | 0.03 | 18 |
| R060031000 | 10.0 | 350.0 | 29.0 | 0.03 | 18 |
| R066804030 | 40.0 | 2050.0 | 56.0 | 0.19 | — |
Common to all listed parts
| Format of linear bushings | – Closed |
| Type | Linear bushing |
| Lubrication | Not lubricated |
| Friction coefficient μ | 0.001 ... 0.004 |
