Bosch Rexroth R066708000

ROTARY LINEAR BUSHING KBRON-80-DD

MPN: R066708000
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

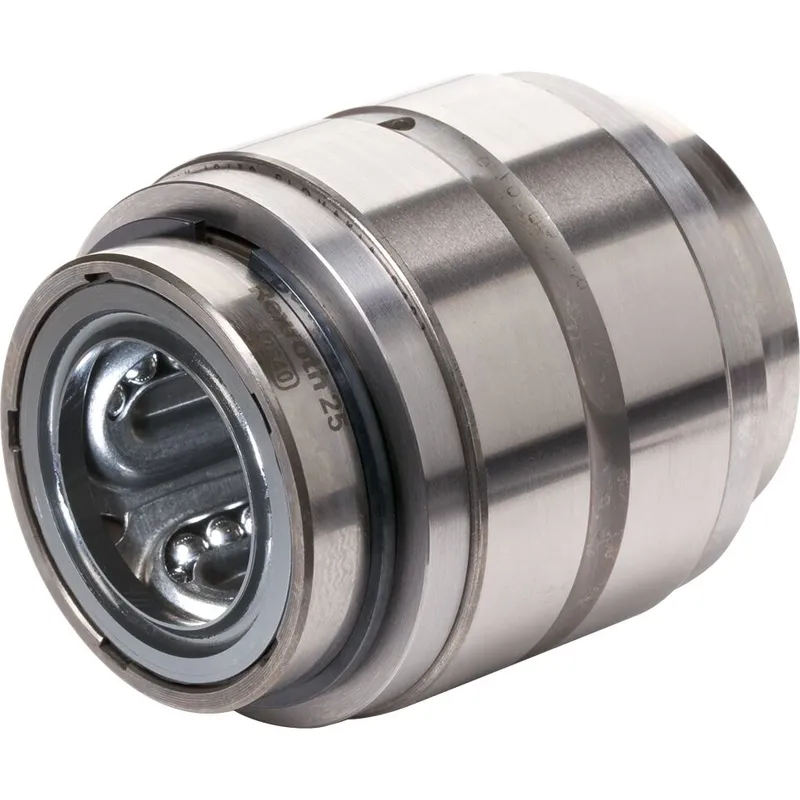

What is the Bosch Rexroth R066708000?

Rotary motion linear bushing

Needle bearing

Shaft diameter d = 80

With two seals

Linear bushing with needle bearing

Precise guiding at high load rating

High speed and low friction

For linear applications with additional rotary motion

For grip and swivel functions

For winding applications

standard linear bushing (closed)

Steel intermediate rings

Retaining rings

Specifications

Shaft diameter d [mm]	80.0
Version	Standard
Format of linear bushings	N - With needle bearing
Series	Combined linear and rotary motion (rotation)
Type	Linear bushing
Seal	2 integrated wiper seals
Lubrication	Not lubricated
Dynamic load capacity C [N]	21000.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	2.0
Length of linear bushing [mm]	165.0
Outer diameter D [mm]	140.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	8.17
Footnote diameter d	Contrary to the illustration, these sizes have two needle bearings.
Static load capacity C0 [N]	16300.0
Note: static load capacity C0	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Retaining ring footnote	Seeger-Orbis GmbH

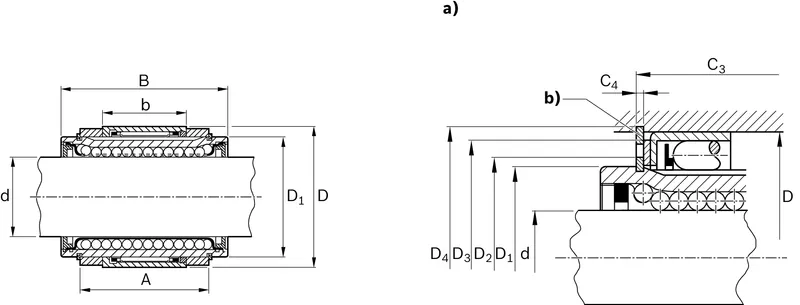

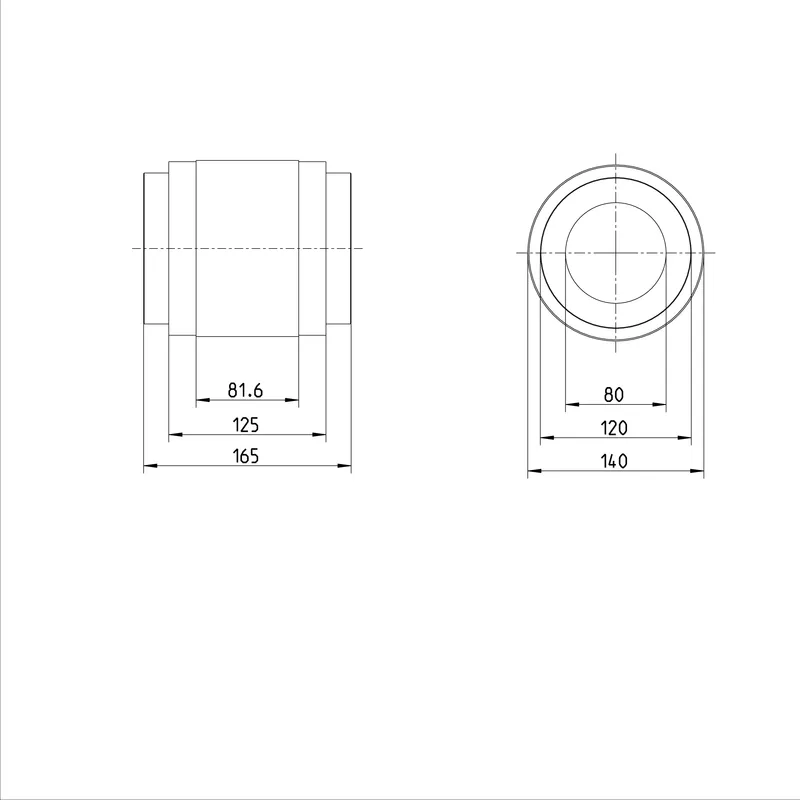

Dimension A (profiled rail systems) [mm]	125
Dimension B (profiled rail systems) [mm]	165
Dimension b [mm]	81.6
Dimension C3 H12 [mm]	130.2
Dimension C4 H13 [mm]	2.7
Dimension D [mm]	140
Dimension D1 [mm]	120
Dimension D2 [mm]	128
Dimension D3 [mm]	138
