Bosch Rexroth R066325000

ROTARY LINEAR BUSHING KBROR-50-DD

MPN: R066325000
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

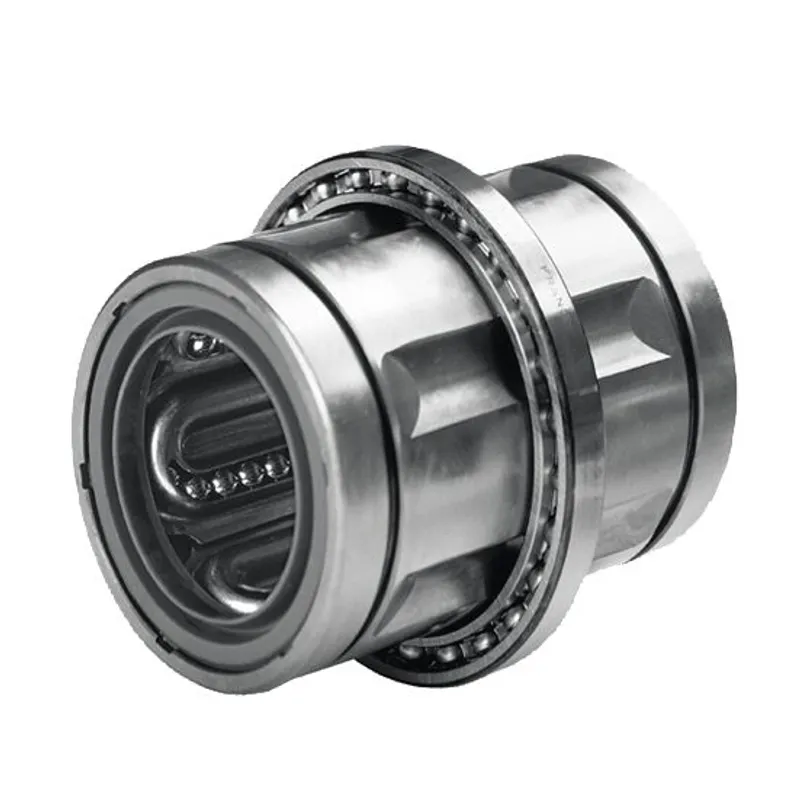

What is the Bosch Rexroth R066325000?

Rotary motion linear bushing

With deep-groove ball bearing

Shaft diameter d = 50

With two seals

Linear bushings with deep-groove ball bearing

Precise guiding at high load rating

High speed and low friction

For linear applications with additional rotary motion

For grip and swivel functions

For winding applications

Maintenance-free sealed shields

segmental linear bushings (for shaft diameters 12 to 40).

Steel sleeve (for shaft diameters 12 to 40).

External seals (for shaft diameters 12 to 40)

Pressed-on deep-groove ball bearing

standard linear bushing (for shaft diameters 5, 8, 50, 60 and 80)

Integrated wiper seals (for shaft diameters 5, 8, 50, 60 and 80)

Specifications

Shaft diameter d [mm]	50.0
Version	Standard
Format of linear bushings	R - With deep-groove ball bearing (series 618)
Series	Combined linear and rotary motion (rotation)
Type	Linear bushing
Seal	2 integrated wiper seals
Lubrication	Not lubricated
Dynamic load capacity C [N]	8260.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	2.0
Length of linear bushing [mm]	100.0
Outer diameter D [mm]	95.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	1.33
Static load capacity C0 [N]	6470.0
Note: static load capacity C0	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

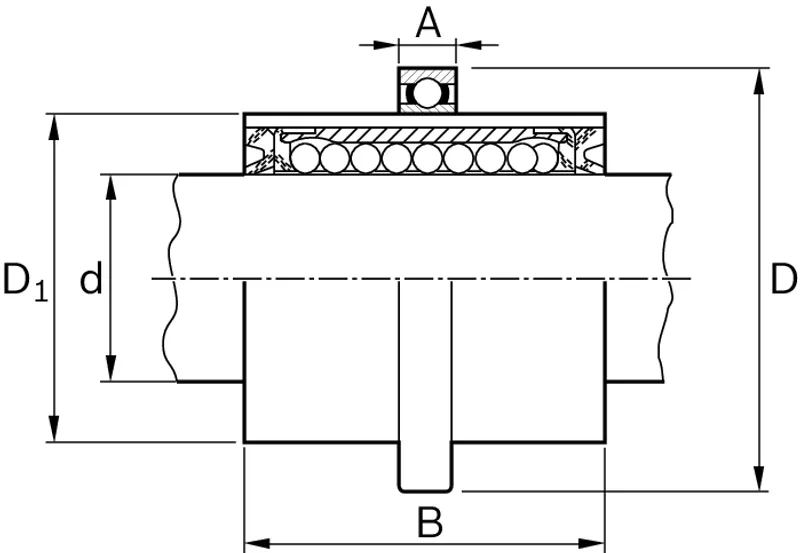

Dimension A (profiled rail systems) [mm]	10
Dimension B (profiled rail systems) [mm]	100
Dimension D [mm]	95
Dimension D1 [mm]	75
