Linear bushings Parts
























Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Maximum dynamic load capacity Cmax [N] | Length of linear bushing [mm] | Weight [kg] | Dimension D1 [mm] |
|---|---|---|---|---|---|
| R061103010 | 30.0 | 2980.0 | 68.0 | 0.31 | 44.5 |
| R061003000 | 30.0 | 2980.0 | 68.0 | 0.31 | 44.5 |
| R061202510 | 25.0 | 2480.0 | 58.0 | 0.19 | 38.5 |
| R061102510 | 25.0 | 2480.0 | 58.0 | 0.19 | 38.5 |
| R061002500 | 25.0 | 2480.0 | 58.0 | 0.19 | 38.5 |
| R061202010 | 20.0 | 1390.0 | 45.0 | 0.1 | 30.5 |
| R061102010 | 20.0 | 1390.0 | 45.0 | 0.1 | 30.5 |
| R061002000 | 20.0 | 1390.0 | 45.0 | 0.1 | 30.5 |
| R061201610 | 16.0 | 670.0 | 36.0 | 0.06 | 24.9 |
| R061101610 | 16.0 | 670.0 | 36.0 | 0.06 | 24.9 |
| R061001600 | 16.0 | 670.0 | 36.0 | 0.06 | 24.9 |

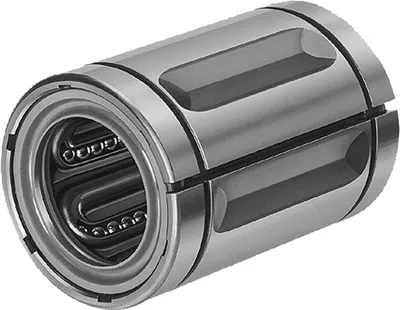

| R061201210 | 12.0 | 480.0 | 32.0 | 0.04 | 20.5 |
| R061101210 | 12.0 | 480.0 | 32.0 | 0.04 | 20.5 |
| R061001200 | 12.0 | 480.0 | 32.0 | 0.04 | 20.5 |

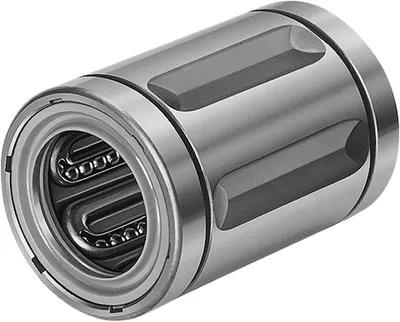

| R060208010 | 80.0 | 22200.0 | 165.0 | 4.56 | 114 |
| R060108010 | 80.0 | 22200.0 | 165.0 | 4.62 | 114 |
| R060008000 | 80.0 | 22200.0 | 165.0 | 4.72 | 114 |

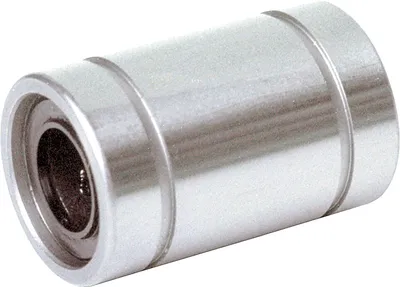

| R060000830 | 8.0 | 240.0 | 25.0 | 0.02 | 15.2 |
| R060200830 | 8.0 | 240.0 | 25.0 | 0.02 | 15.2 |
| R060230810 | 8.0 | 370.0 | 25.0 | 0.02 | 14.7 |
| R060130810 | 8.0 | 370.0 | 25.0 | 0.02 | 14.7 |
| R060030800 | 8.0 | 370.0 | 25.0 | 0.02 | 14.7 |
| R060206010 | 60.0 | 12100.0 | 125.0 | 1.93 | 85 |
| R060106010 | 60.0 | 12100.0 | 125.0 | 1.97 | 85 |
Common to all listed parts
| Series | Standard (metal) |
| Type | Linear bushing |
| Lubrication | Not lubricated |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Friction coefficient μ | 0.001 ... 0.004 |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
