Bosch Rexroth R060230810

STANDARD LINEAR BUSHING KBM-8-DD

MPN: R060230810
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

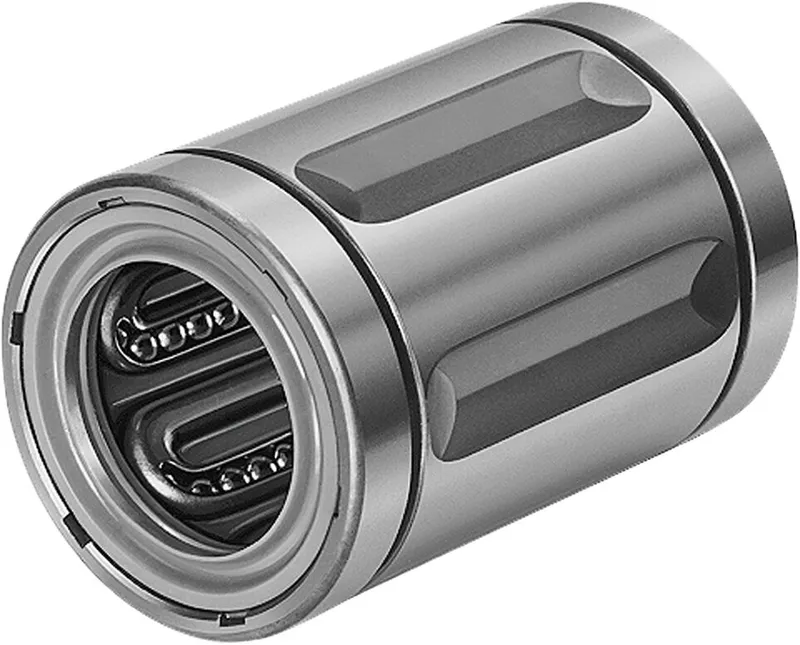

What is the Bosch Rexroth R060230810?

Standard linear bushing

Standard (metal)

Closed

Shaft diameter d = 8

With two seals

Version: Standard

Rugged all-metal design with steel ball retainer for harsh environments and heavy contamination

Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life

Steel ball retainer (shaft diameters 3, 4 and 10 with plastic strip made of POM and shaft diameters 5 and 8 made of PA)

Closed, for self-supporting shafts

Balls made of rolling bearing steel

For use in woodworking, foundries, cement plants

Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.

No wiper seals, come with integrated steel retaining rings; higher temperatures allowed with shaft diameters 12 and higher

Hardened and ground outer sleeve

Specifications

Shaft diameter d [mm]	8.0
Version	Standard
Format of linear bushings	– Closed
Series	Standard (metal)
Type	Linear bushing
Seal	2 integrated wiper seals
Lubrication	Not lubricated
Maximum dynamic load capacity Cmax [N]	370.0
Maximum acceleration rate amax [m/s²]	100.0
Maximum permissible linear speed vmax [m/s]	2.5
Length of linear bushing [mm]	25.0
Outer diameter D [mm]	16.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	Higher temperatures are only admissible at linear bushings without wiper seals with ball retainers made of steel. Make allowance for reductions in load capacity.
Friction coefficient μ	0.001 ... 0.004
Note: friction coefficient μ	Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
Weight [kg]	0.02
Footnote breakaway force	One wiper seal: Multiply value with factor 0.5
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote shaft radial clearance h6	Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7.
Footnote friction force FR	One wiper seal: Multiply value with factor 0.5
Breakaway force [N]	1

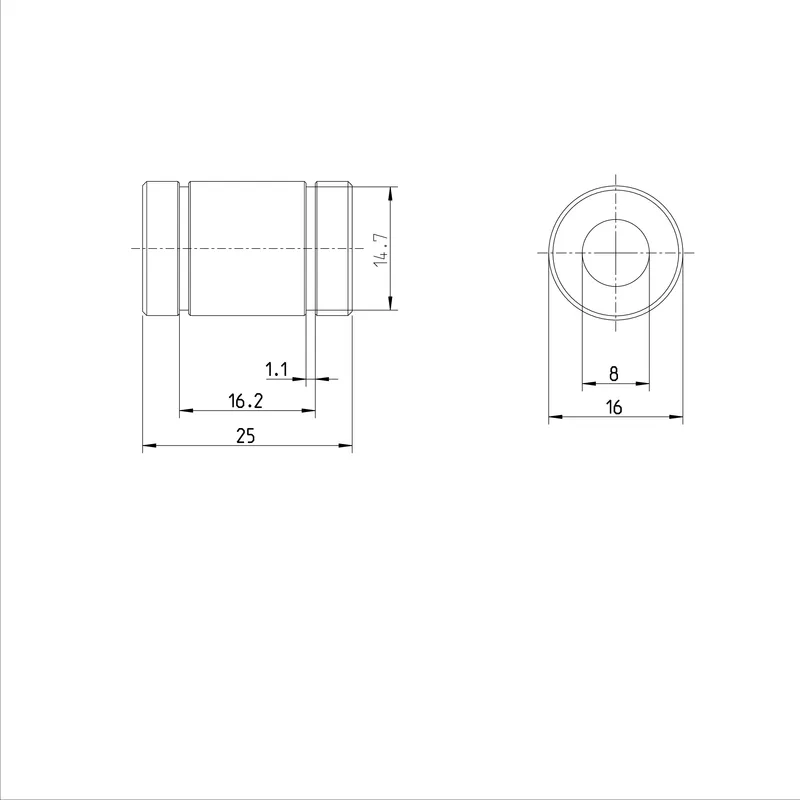

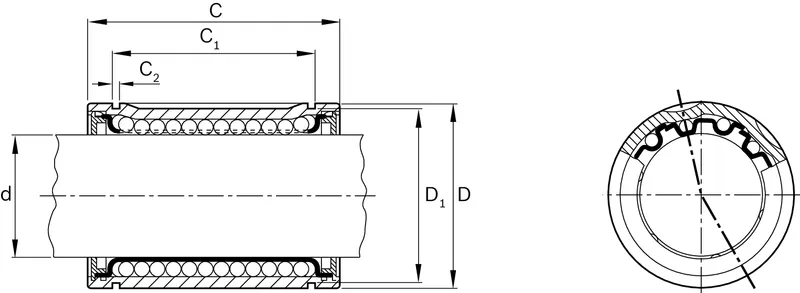

Dimension C h12 [mm]	25
Dimension C1 H13 [mm]	16.2
Dimension C2 [mm]	1.1
Dimension D [mm]	16
Dimension D1 [mm]	14.7
