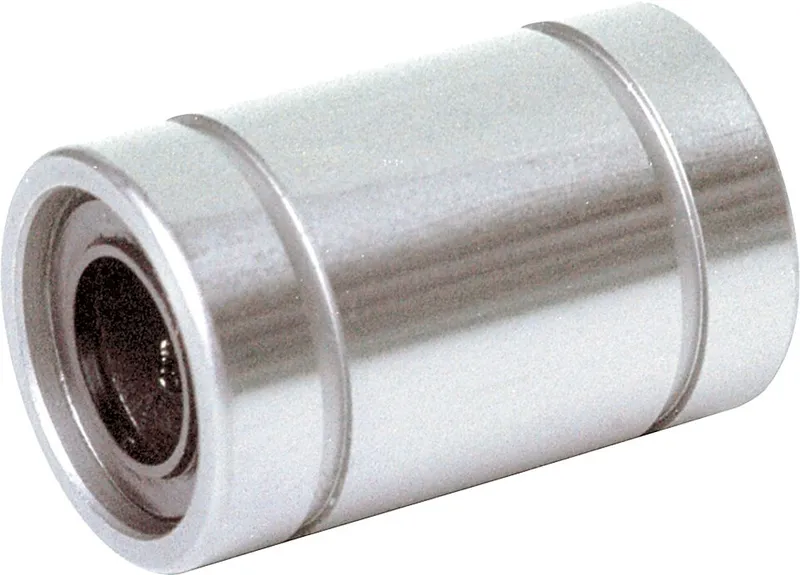

Bosch Rexroth R060000830

STANDARD LINEAR BUSHING KBM-8-NR &

MPN: R060000830
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R060000830?

"standard linear bushing

Standard (metal)

Closed

Shaft diameter d = 8

Without seal

Version: Corrosion-resistant"

Rugged all-metal design with steel ball retainer for harsh environments and heavy contamination

Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life

Optional integrated wiper seals

Stainless steel for the medical, chemistry and food industries

Closed, for self-supporting shafts

For use in woodworking, foundries, cement plants

Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.

Balls made of stainless steel comparable to 1.4125

Hardened and machined outer sleeve made of stainless steel comparable to 1.4125

Ball retainer made of stainless steel comparable to 1.4301

Integrated retaining rings made of stainless steel comparable to 1.4006 or wiper seals

Specifications

Shaft diameter d [mm]	8.0
Version	Corrosion-resistant
Format of linear bushings	– Closed
Series	Standard (metal)
Type	Linear bushing
Seal	Without wiper seals
Lubrication	Not lubricated
Maximum dynamic load capacity Cmax [N]	240.0
Maximum acceleration rate amax [m/s²]	100.0
Maximum permissible linear speed vmax [m/s]	2.5
Length of linear bushing [mm]	25.0
Outer diameter D [mm]	16.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.
Friction coefficient μ	0.001 ... 0.004
Note: friction coefficient μ	Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
Weight [kg]	0.02
Footnote breakaway force	One wiper seal: Multiply value with factor 0.5
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote shaft radial clearance h6	Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7.
Footnote friction force FR	One wiper seal: Multiply value with factor 0.5
Breakaway force [N]	1

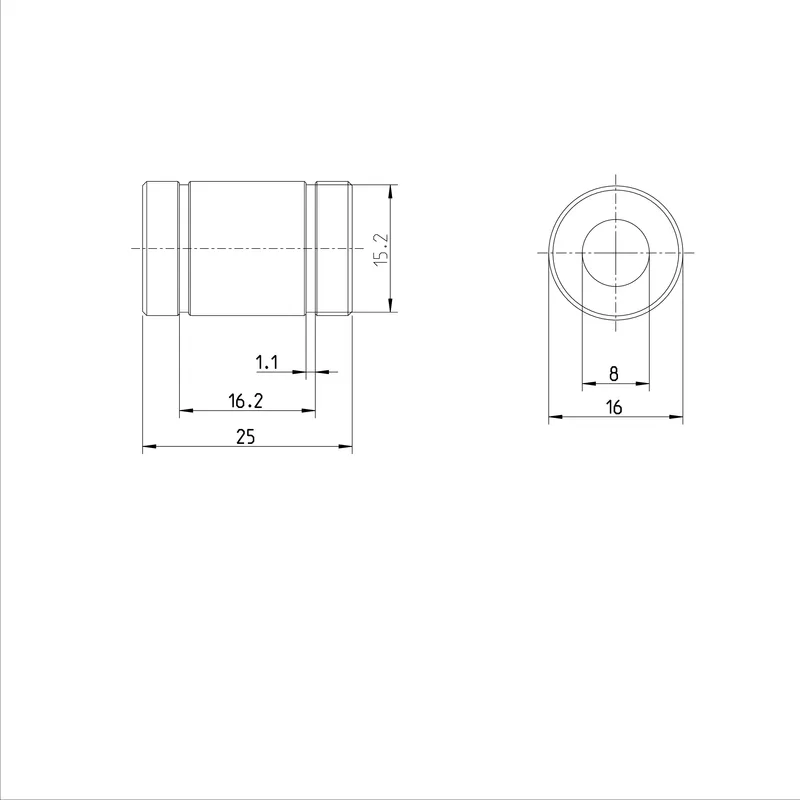

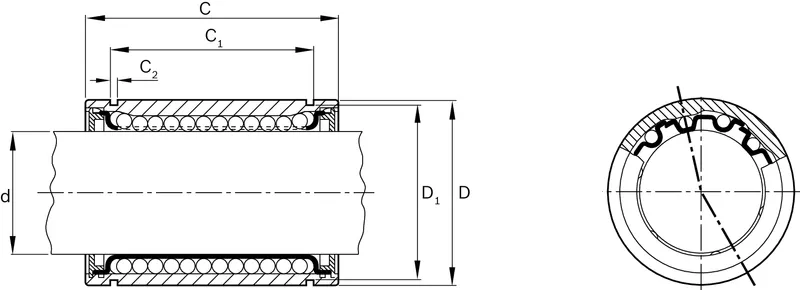

Dimension C h12 [mm]	25
Dimension C1 H13 [mm]	16.2
Dimension C2 [mm]	1.1
Dimension D [mm]	16
Dimension D1 [mm]	15.2
