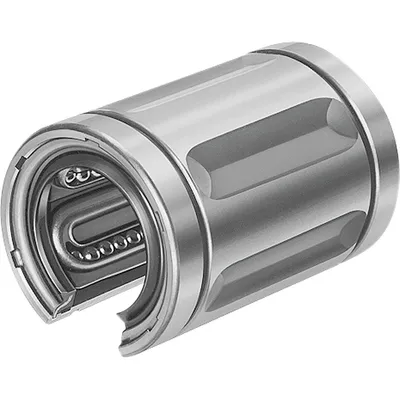

Linear bushings Parts
























Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Length of linear bushing [mm] | Outer diameter D [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R063206000 | 60.0 | 11800.0 | 125.0 | 90.0 | 1.67 |
| R063106000 | 60.0 | 11800.0 | 125.0 | 90.0 | 1.7 |
| R063006000 | 60.0 | 11800.0 | 125.0 | 90.0 | 1.72 |
| R063205005 | 50.0 | 8470.0 | 100.0 | 75.0 | 0.91 |
| R063205000 | 50.0 | 8470.0 | 100.0 | 75.0 | 0.9 |
| R063105000 | 50.0 | 8470.0 | 100.0 | 75.0 | 0.92 |
| R063005000 | 50.0 | 8470.0 | 100.0 | 75.0 | 0.94 |
| R063204005 | 40.0 | 5280.0 | 80.0 | 62.0 | 0.52 |
| R063204000 | 40.0 | 5280.0 | 80.0 | 62.0 | 0.52 |
| R063104000 | 40.0 | 5280.0 | 80.0 | 62.0 | 0.53 |
| R063004000 | 40.0 | 5280.0 | 80.0 | 62.0 | 0.53 |
| R063203005 | 30.0 | 2890.0 | 68.0 | 47.0 | 0.27 |
| R063203000 | 30.0 | 2890.0 | 68.0 | 47.0 | 0.27 |
| R063103000 | 30.0 | 2890.0 | 68.0 | 47.0 | 0.28 |
| R063003000 | 30.0 | 2890.0 | 68.0 | 47.0 | 0.27 |
| R063202505 | 25.0 | 2270.0 | 58.0 | 40.0 | 0.16 |
| R063202500 | 25.0 | 2270.0 | 58.0 | 40.0 | 0.16 |
| R063102500 | 25.0 | 2270.0 | 58.0 | 40.0 | 0.16 |
| R063002500 | 25.0 | 2270.0 | 58.0 | 40.0 | 0.16 |
| R063202005 | 20.0 | 1280.0 | 45.0 | 32.0 | 0.09 |
| R063202000 | 20.0 | 1280.0 | 45.0 | 32.0 | 0.09 |
| R063102000 | 20.0 | 1280.0 | 45.0 | 32.0 | 0.09 |
| R063002000 | 20.0 | 1280.0 | 45.0 | 32.0 | 0.09 |
| R063201600 | 16.0 | 600.0 | 36.0 | 26.0 | 0.05 |
Common to all listed parts
| Version | Standard |
| Format of linear bushings | O - Open |
| Series | Standard (metal) |
| Type | Linear bushing |
| Lubrication | Not lubricated |
| Note: dynamic load capacity C | The load capacities C and C<sub>0</sub> apply for the main direction of loading. |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Friction coefficient μ | 0.001 ... 0.004 |
