Kuka
U514986Small robots Parts
Compare Small robots
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum payload | Rated payload | Maximum reach | A5 | A6 |
|---|---|---|---|---|---|
| U514986 | 10 kg | 5 kg | 1101 mm | 311 °/s | 492 °/s |
| U8161471 | 4.63 kg | 3 kg | 601 mm | 529 °/s | 800 °/s |
| U4555882 | 6.8 kg | 6 kg | 726 mm | 450 °/s | 540 °/s |
| U4612147 | 6.8 kg | 6 kg | 726 mm | 450 °/s | 540 °/s |
| U4560518 | 6.8 kg | 6 kg | 726 mm | 450 °/s | 540 °/s |
| U4557252 | 6.7 kg | 6 kg | 901 mm | 450 °/s | 540 °/s |
| U4612898 | 11.3 kg | 10 kg | 901 mm | 360 °/s | 433 °/s |
| U4613230 | 6.7 kg | 6 kg | 901 mm | 450 °/s | 540 °/s |
| U4560900 | 6.8 kg | 6 kg | 726 mm | 450 °/s | 540 °/s |
| U4613800 | 6.8 kg | 6 kg | 726 mm | 450 °/s | 540 °/s |
| U4613801 | 6.8 kg | 6 kg | 726 mm | 450 °/s | 540 °/s |
| U4607198 | 4.63 kg | 3 kg | 601 mm | 529 °/s | 800 °/s |
| U4612494 | 11.1 kg | 10 kg | 1101 mm | 360 °/s | 433 °/s |
| U4614100 | 6.7 kg | 6 kg | 901 mm | 450 °/s | 540 °/s |
| U4614103 | 11.3 kg | 10 kg | 901 mm | 360 °/s | 433 °/s |
| U4614105 | 11.1 kg | 10 kg | 1101 mm | 360 °/s | 433 °/s |
| U4557210 | 11.1 kg | 10 kg | 1101 mm | 360 °/s | 433 °/s |
| U514987 | 6 kg | 3 kg | 901.5 mm | 388 °/s | 615 °/s |
| U4613772 | 11.1 kg | 10 kg | 1101 mm | 360 °/s | 433 °/s |
| U810113609 | 4.63 kg | 3 kg | 601 mm | 529 °/s | 800 °/s |
| U8190741 | 4.63 kg | 3 kg | 601 mm | 529 °/s | 800 °/s |
| U4612253 | 11.1 kg | 10 kg | 1101 mm | 360 °/s | 433 °/s |

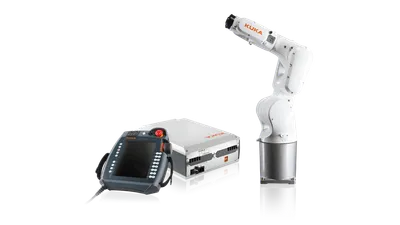

| U4558103 | 11.1 kg | 10 kg | 1101 mm | 360 °/s | 433 °/s |
| U1029611 | 11.1 kg | 10 kg | 1101 mm | 360 °/s | 433 °/s |
Common to all listed parts
| Mounting position | Floor, Ceiling, Wall, Desired angle |
| Number of axes | 6 |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
