Kuka U4612898

KR 10 R900-2 incl. KR C5 micro

MPN: U4612898
Category: Small robots

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U4612898?

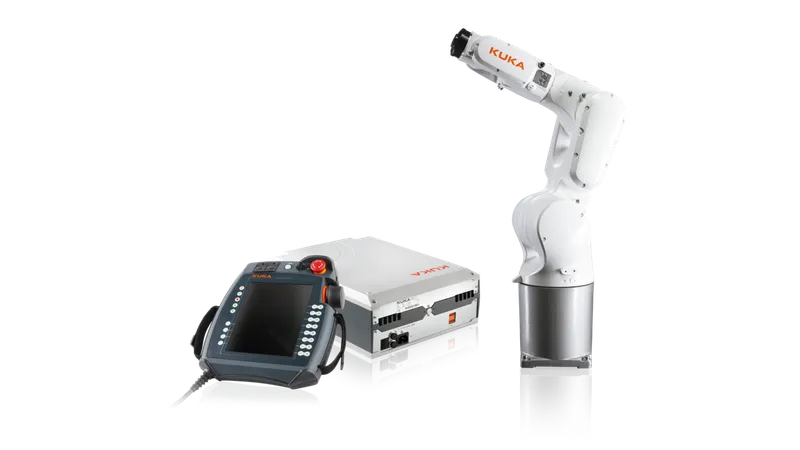

Kuka KR 10 R900-2 incl. KR C5 micro, manufacturer part number U4612898. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	11.3 kg
Rated payload	10 kg
Maximum reach	901 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.02 mm
Number of axes	6
Ambient temperature during operation	0 °C to 45 °C (273 K to 318 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP20
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
Cleanroom class (ISO 14644-1)	Class 4 at 80% override
A1	300 °/s
A2	225 °/s
A3	330 °/s
A4	360 °/s
A5	360 °/s
A6	433 °/s
Height	134
Depth	392 mm
Maximum number of servo axes	6
Rated supply voltage	AC 1x 200 V - 240 V
Mains frequency	50...60 Hz
Mains side fusing	1x 16 A slow-blowing, type C
Rated connected load	1.3 kVA
