Home / Kuka / Small robots / Kuka U4612253

Kuka

Kuka U4612253

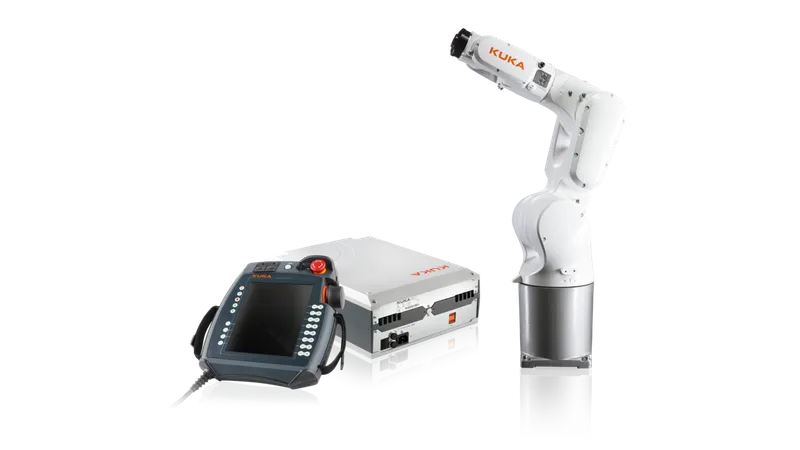

KR 10 R1100-2 incl. KR C5 micro

MPN: U4612253
Category: Small robots

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U4612253?

Kuka KR 10 R1100-2 incl. KR C5 micro, manufacturer part number U4612253. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	11.1 kg
Rated payload	10 kg
Maximum reach	1101 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.02 mm
Number of axes	6
Ambient temperature during operation	0 °C to 45 °C (273 K to 318 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP20
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
Cleanroom class (ISO 14644-1)	Class 4 at 80% override
A1	300 °/s
A2	225 °/s
A3	330 °/s
A4	360 °/s
A5	360 °/s
A6	433 °/s
Height	134
Depth	392 mm
Maximum number of servo axes	6
Rated supply voltage	AC 1x 200 V - 240 V
Mains frequency	50...60 Hz
Mains side fusing	1x 16 A slow-blowing, type C
Rated connected load	1.3 kVA

U4612253: frequently asked questions

When can U4612253 be shipped?

U4612253 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U4612253 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U4612253 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U4612253, subject to availability and destination.
