Kuka U8190741

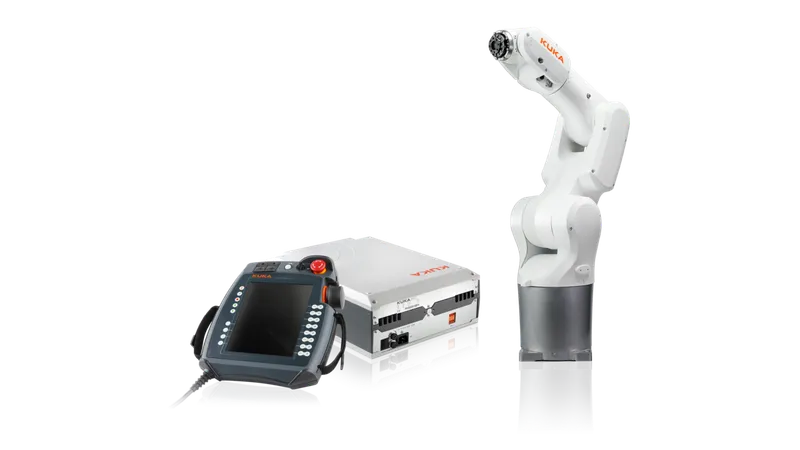

KR 4 R600 incl. KR C5 micro
- MPN
- U8190741
- Category
- Small robots
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Kuka U8190741?
Kuka KR 4 R600 incl. KR C5 micro, manufacturer part number U8190741. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Maximum payload | 4.63 kg |
| Rated payload | 3 kg |
| Maximum reach | 601 mm |
| Mounting position | Floor, Ceiling, Wall, Desired angle |
| Pose repeatability (ISO 9283) | 0.015 mm |
| Number of axes | 6 |
| Ambient temperature during operation | 0 °C to 55 °C (273 K to 328 K) |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
| Protection rating (IEC 60529) | IP20 |
| Prot. rating, in-line wrist (IEC 60529) | IP40 |
| Cleanroom class (ISO 14644-1) | Class 5 at 30% override |
| A1 | 336 °/s |
| A2 | 336 °/s |
| A3 | 488 °/s |
| A4 | 600 °/s |
| A5 | 529 °/s |
| A6 | 800 °/s |
| Height | 134 |
| Depth | 392 mm |
| Maximum number of servo axes | 6 |
| Rated supply voltage | AC 1x 200 V - 240 V |
| Mains frequency | 50...60 Hz |
| Mains side fusing | 1x 16 A slow-blowing, type C |
| Rated connected load | 1.3 kVA |
U8190741: frequently asked questions
When can U8190741 be shipped?
U8190741 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up U8190741 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for U8190741 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U8190741, subject to availability and destination.
