Kuka U4614105
- MPN
- U4614105
- Category
- Small robots
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Kuka U4614105?

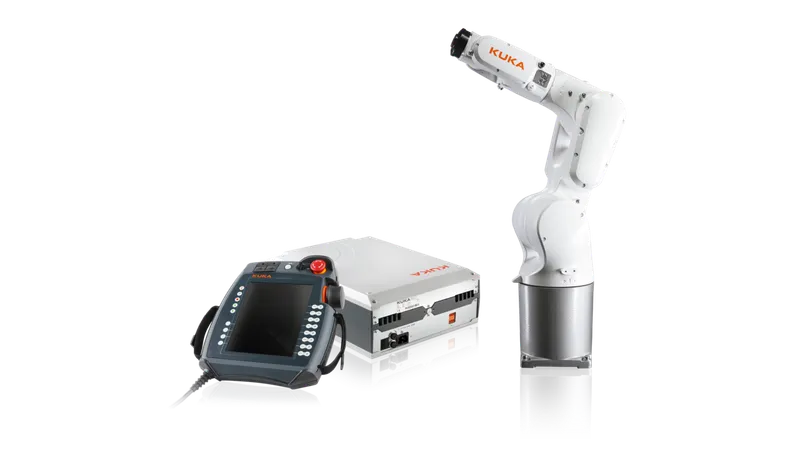

Kuka KR 10 R1100-2, manufacturer part number U4614105. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Maximum payload | 11.1 kg |
| Rated payload | 10 kg |
| Maximum reach | 1101 mm |
| Mounting position | Floor, Ceiling, Wall, Desired angle |
| Pose repeatability (ISO 9283) | 0.02 mm |
| Number of axes | 6 |
| Ambient temperature during operation | 0 °C to 45 °C (273 K to 318 K) |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
| Prot. rating, in-line wrist (IEC 60529) | IP65 / IP67 |
| Cleanroom class (ISO 14644-1) | Class 4 at 80% override |
| A1 | 300 °/s |
| A2 | 225 °/s |
| A3 | 330 °/s |
| A4 | 360 °/s |
| A5 | 360 °/s |
| A6 | 433 °/s |
U4614105: frequently asked questions
When can U4614105 be shipped?
U4614105 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up U4614105 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for U4614105 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U4614105, subject to availability and destination.
