Kuka U4560900

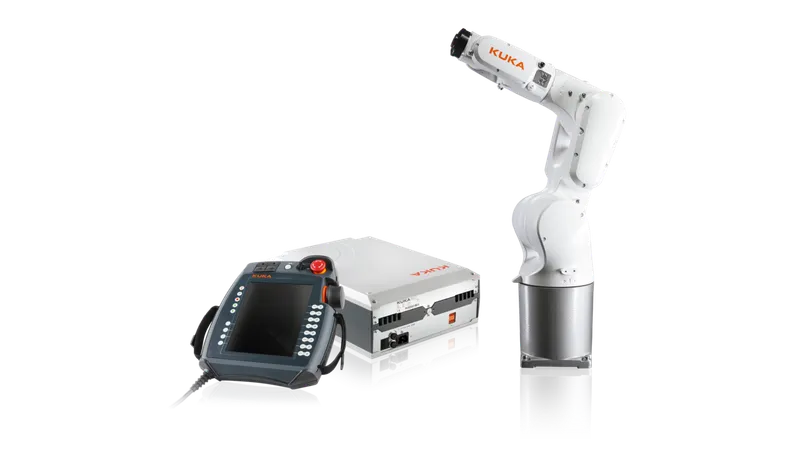

KR 6 R700-2 incl. KR C5 micro
- MPN
- U4560900
- Category
- Small robots
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Kuka U4560900?
Kuka KR 6 R700-2 incl. KR C5 micro, manufacturer part number U4560900. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Maximum payload | 6.8 kg |
| Rated payload | 6 kg |
| Maximum reach | 726 mm |
| Mounting position | Floor, Ceiling, Wall, Desired angle |
| Pose repeatability (ISO 9283) | 0.02 mm |
| Number of axes | 6 |
| Ambient temperature during operation | 0 °C to 45 °C (273 K to 318 K) |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
| Protection rating (IEC 60529) | IP20 |
| Prot. rating, in-line wrist (IEC 60529) | IP65 / IP67 |
| Cleanroom class (ISO 14644-1) | Class 4 at 80% override |
| A1 | 360 °/s |
| A2 | 300 °/s |
| A3 | 360 °/s |
| A4 | 450 °/s |
| A5 | 450 °/s |
| A6 | 540 °/s |
| Height | 134 |
| Depth | 392 mm |
| Maximum number of servo axes | 6 |
| Rated supply voltage | AC 1x 200 V - 240 V |
| Mains frequency | 50...60 Hz |
| Mains side fusing | 1x 16 A slow-blowing, type C |
| Rated connected load | 1.3 kVA |
