Home / Kuka / Small robots / Kuka U4555882

Kuka

Kuka U4555882

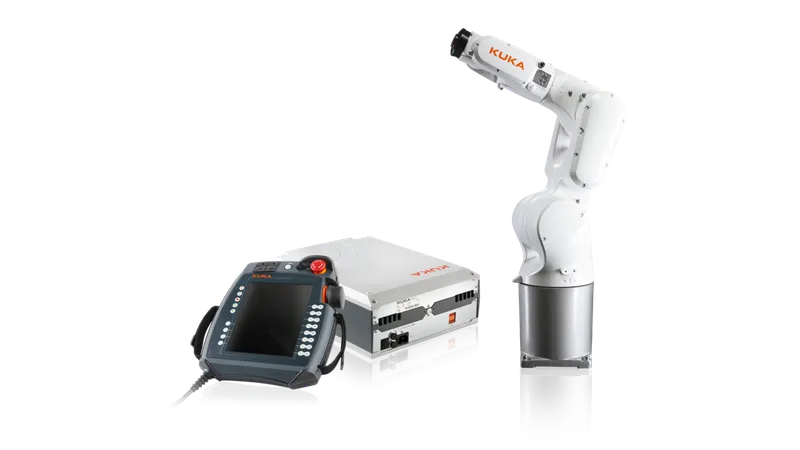

KR 6 R700-2 incl. KR C4 compact RAL 7016

MPN: U4555882
Category: Small robots

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U4555882?

Kuka KR 6 R700-2 incl. KR C4 compact RAL 7016, manufacturer part number U4555882. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	6.8 kg
Rated payload	6 kg
Maximum reach	726 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.02 mm
Number of axes	6
Ambient temperature during operation	0 °C to 45 °C (273 K to 318 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP20
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
Cleanroom class (ISO 14644-1)	Class 4 at 80% override
A1	360 °/s
A2	300 °/s
A3	360 °/s
A4	450 °/s
A5	450 °/s
A6	540 °/s
Height	271
Depth	500 mm
Maximum number of servo axes	6
Rated supply voltage	AC 2x 208 V, AC 1x 230 V
Mains frequency	50...60 Hz
Rated connected load	2 kVA

U4555882: frequently asked questions

When can U4555882 be shipped?

U4555882 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U4555882 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U4555882 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U4555882, subject to availability and destination.
