Home / Kuka / Small robots / Kuka U810113609

Kuka

Kuka U810113609

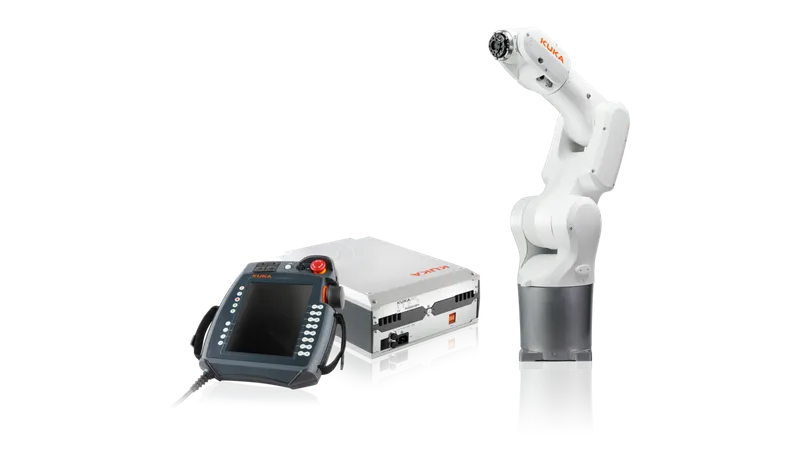

KR 4 R600 incl. KR C5 micro

MPN: U810113609
Category: Small robots

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Kuka parts? We buy surplus →

What is the Kuka U810113609?

Kuka KR 4 R600 incl. KR C5 micro, manufacturer part number U810113609. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	4.63 kg
Rated payload	3 kg
Maximum reach	601 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.015 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP20
Prot. rating, in-line wrist (IEC 60529)	IP40
Cleanroom class (ISO 14644-1)	Class 5 at 30% override
A1	336 °/s
A2	336 °/s
A3	488 °/s
A4	600 °/s
A5	529 °/s
A6	800 °/s
Height	134
Depth	392 mm
Maximum number of servo axes	6
Rated supply voltage	AC 1x 200 V - 240 V
Mains frequency	50...60 Hz
Mains side fusing	1x 16 A slow-blowing, type C
Rated connected load	1.3 kVA

U810113609: frequently asked questions

When can U810113609 be shipped?

U810113609 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U810113609 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U810113609 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U810113609, subject to availability and destination.
