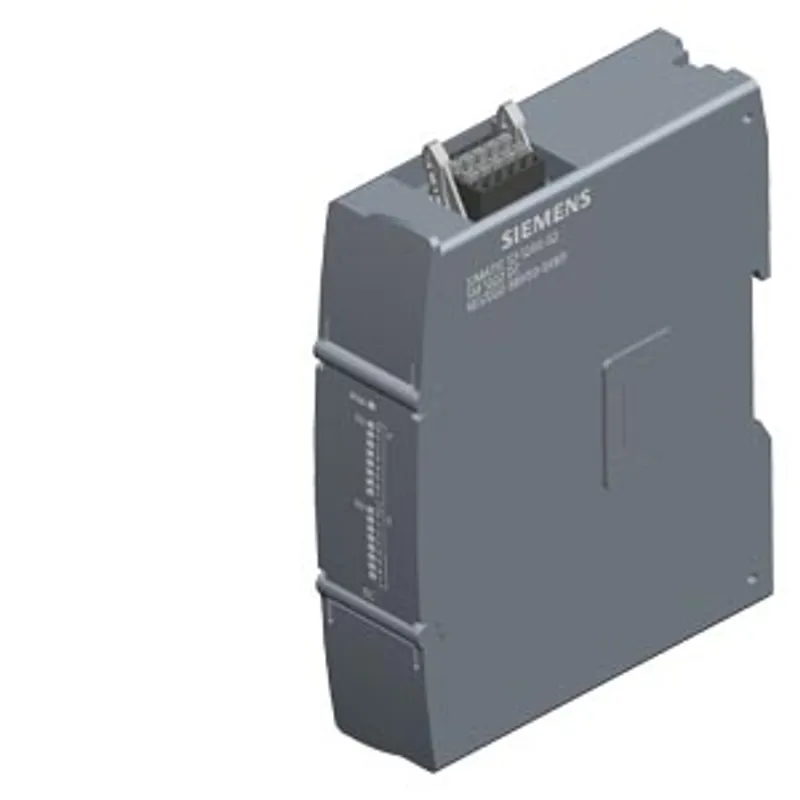

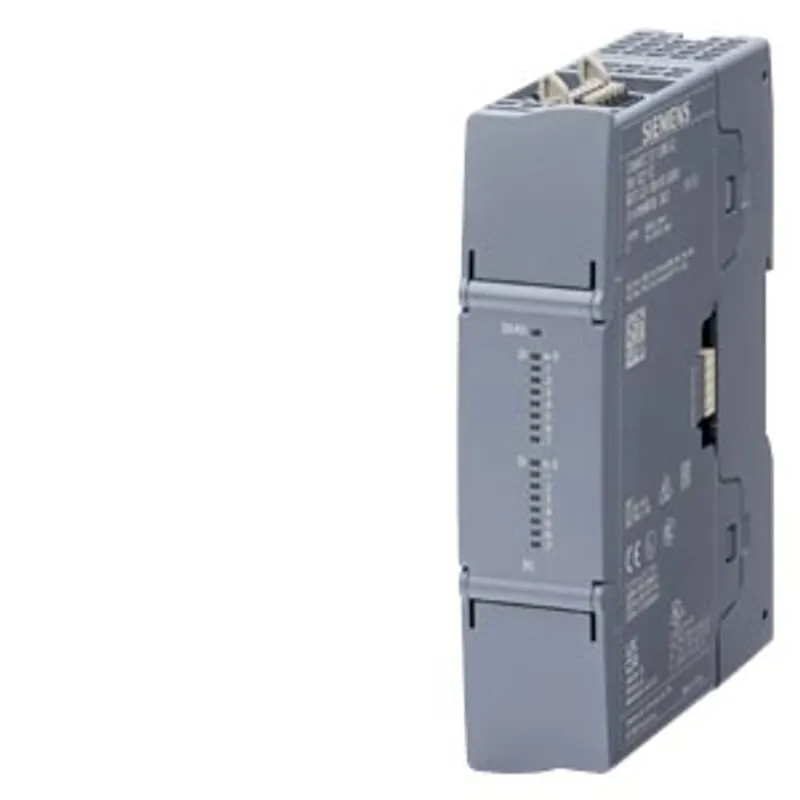

Siemens 6ES7222-5BH50-0XB0

SIMATIC S7-1200 G2: SM 1222 digital output, 16 DO; outputs: 16x DO, 24 V DC 0.5 A, sourcing transistor

MPN
6ES7222-5BH50-0XB0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7222-5BH50-0XB0?

SIMATIC S7-1200 G2: SM 1222 digital output, 16 DO; outputs: 16x DO, 24 V DC 0.5 A, sourcing transistor

Specifications

General information

Product type designationSM 1222, DQ 16x 24 V DC/0.5 A

Supply voltage

Rated value (DC)24 V
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V

Input current

from backplane bus 5 V DC, max.120 mA
Digital outputs — from load voltage L+, max.45 mA

Power loss

Power loss, typ.3.5 W

Digital outputs

Number of digital outputs16
Number of digital outputs — in groups of8
Short-circuit protectionNo; to be provided externally
Limitation of inductive shutdown voltage totyp. (L+) -40 V, 1 W dissipation
Switching capacity of the outputs — with resistive load, max.0.5 A
Switching capacity of the outputs — on lamp load, max.5 W
Output voltage — Rated value (DC)24 V
Output voltage — for signal "0", max.0.1 V; with 10 kOhm load
Output voltage — for signal "1", min.L+ (-0.5 V)
Output current — for signal "1" rated value0.5 A
Output current — for signal "0" residual current, max.10 µA
Output delay with resistive load — "0" to "1", max.50 µs
Output delay with resistive load — "1" to "0", max.200 µs
Total current of the outputs (per group) — horizontal installation — up to 50 °C, max.4 A; Current per mass (Group of 8)
Cable length — shielded, max.500 m
Cable length — unshielded, max.150 m

Interrupts/diagnostics/status information

Diagnostics functionYes
Alarms — Diagnostic alarmYes
Diagnoses — Monitoring the supply voltageYes
Diagnostics indication LED — DIAG LEDYes
Diagnostics indication LED — for status of the outputsYes

Potential separation

Potential separation digital outputs — between the channels, in groups of8
Potential separation digital outputs — between the channels and backplane bus707 V DC (type test)

Isolation

Isolation tested with707 V DC (type test)

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech
CE markYes
CSA approvalNo
UL approvalYes
cULusYes
FM approvalNo
RCM (formerly C-TICK)Yes
KC approvalYes
Marine approvalNo
Ecological footprint — environmental product declarationYes; type 2 acc. to ISO 14021
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]40.3 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]7.79 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]32.5 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]-0.089 kg

Ambient conditions

Free fall — Fall height, max.0.3 m; five times, in product package
Ambient temperature during operation — horizontal installation, min.-20 °C
Ambient temperature during operation — horizontal installation, max.60 °C; at max. voltages and max. specification
Ambient temperature during operation — vertical installation, min.-20 °C
Ambient temperature during operation — vertical installation, max.50 °C; at max. voltages and max. specification
Ambient temperature during operation — permissible temperature change5°C to 55°C, 3°C / minute
Ambient temperature during storage/transportation — min.-40 °C
Ambient temperature during storage/transportation — max.70 °C
Air pressure acc. to IEC 60068-2-13 — Operation, min.540 hPa
Air pressure acc. to IEC 60068-2-13 — Operation, max.1 140 hPa
Air pressure acc. to IEC 60068-2-13 — Storage/transport, min.540 hPa
Air pressure acc. to IEC 60068-2-13 — Storage/transport, max.1 140 hPa
Altitude during operation relating to sea level — Installation altitude, min.-1 000 m
Altitude during operation relating to sea level — Installation altitude, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Relative humidity — Operation at 25 ℃ without condensation, max.95 %
Vibrations — Vibration resistance during operation acc. to IEC 60068-2-63.5 mm from 5 - 8.4 Hz, 1g from 8.4 - 150 Hz
Vibrations — Operation, tested according to IEC 60068-2-6Yes
Shock testing — tested according to IEC 60068-2-27Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms
Pollutant concentrations — SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free
Pollutant concentrations — SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free

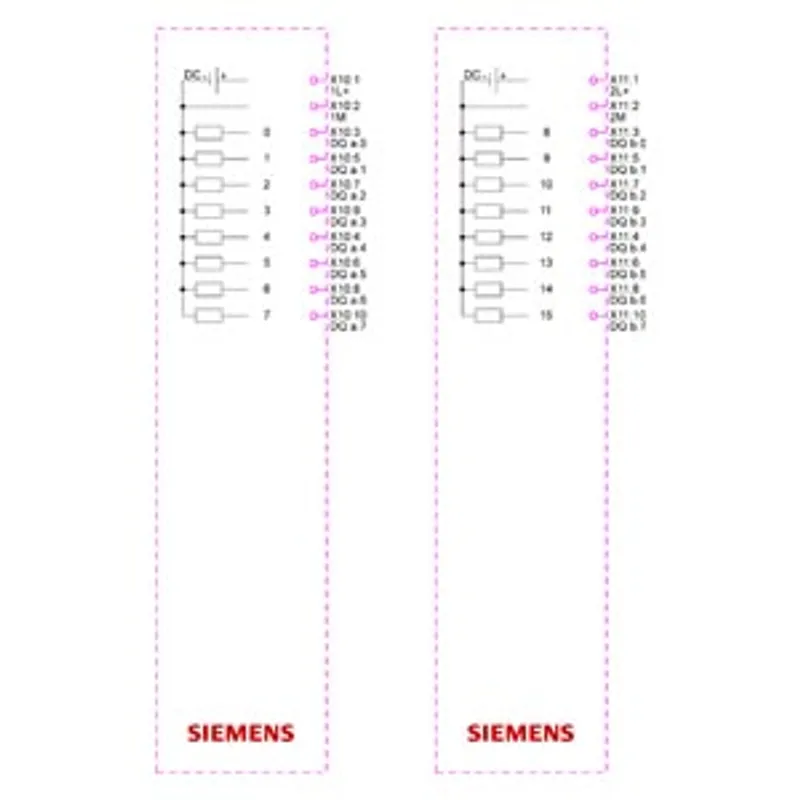

Connection method

required front connectorNo

Mechanics/material

Enclosure material (front) — plasticYes

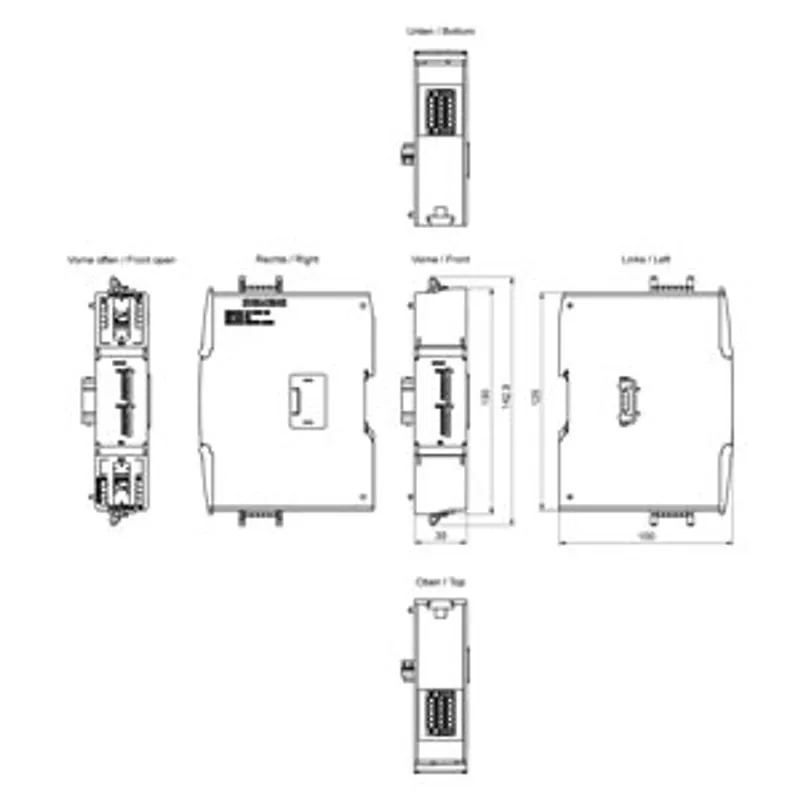

Dimensions

Width30 mm
Height125 mm
Depth100 mm

Weights

Weight, approx.173 g
