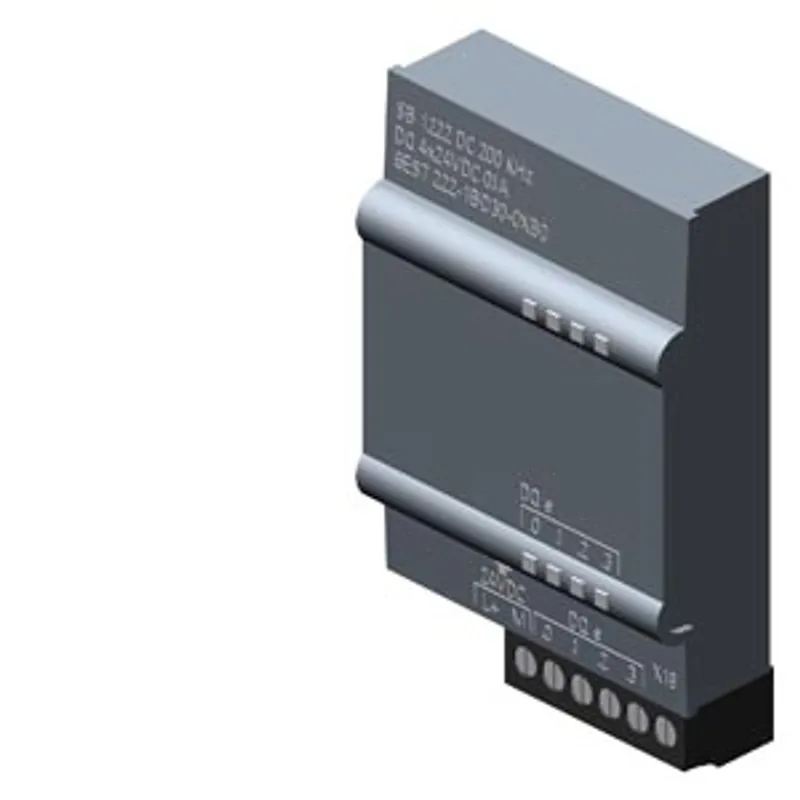

Siemens 6ES7222-1BD30-0XB0
SIMATIC S7-1200, Digital output SB 1222, 4 DQ, 24 V DC 200 kHz
- MPN
- 6ES7222-1BD30-0XB0
- Category
- SB 1222 digital output modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7222-1BD30-0XB0?
SIMATIC S7-1200, Digital output SB 1222, 4 DQ, 24 V DC 200 kHz
Specifications
General information
| Product type designation | SB 1222, DQ 4x24 V DC 200 kHz |
Input current
| from backplane bus 5 V DC, typ. | 35 mA |
Power loss
| Power loss, typ. | 0.5 W |

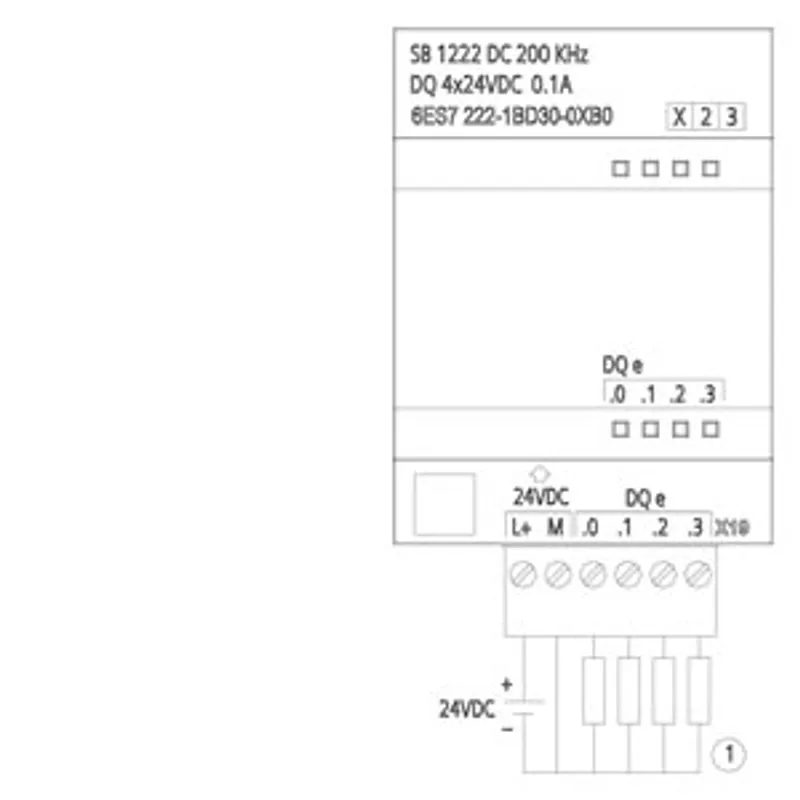

Digital outputs
| Number of digital outputs | 4; MOSFET, solid-state (current-sinking/current-sourcing) |
| Number of digital outputs — in groups of | 4 |
| Short-circuit protection | No |
| Switching capacity of the outputs — with resistive load, max. | 0.1 A |
| Load resistance range — upper limit | 11 Ω |
| Output voltage — Rated value (DC) | 24 V |
| Output voltage — for signal "0", max. | 1 V; with 10 kOhm load |
| Output voltage — for signal "1", min. | L+ (-1.5 V) |
| Output current — for signal "1" rated value | 0.1 A |
| Output current — for signal "1" permissible range, max. | 0.1 A |
| Cable length — shielded, max. | 50 m |
Interrupts/diagnostics/status information
| Diagnostics indication LED — for status of the outputs | Yes |
Standards, approvals, certificates
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during operation — horizontal installation, min. | -20 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -20 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, max. | 1 080 hPa |
| Relative humidity — Operation at 25 ℃ without condensation, max. | 95 % |
Mechanics/material
| Enclosure material (front) — Plastic | Yes |

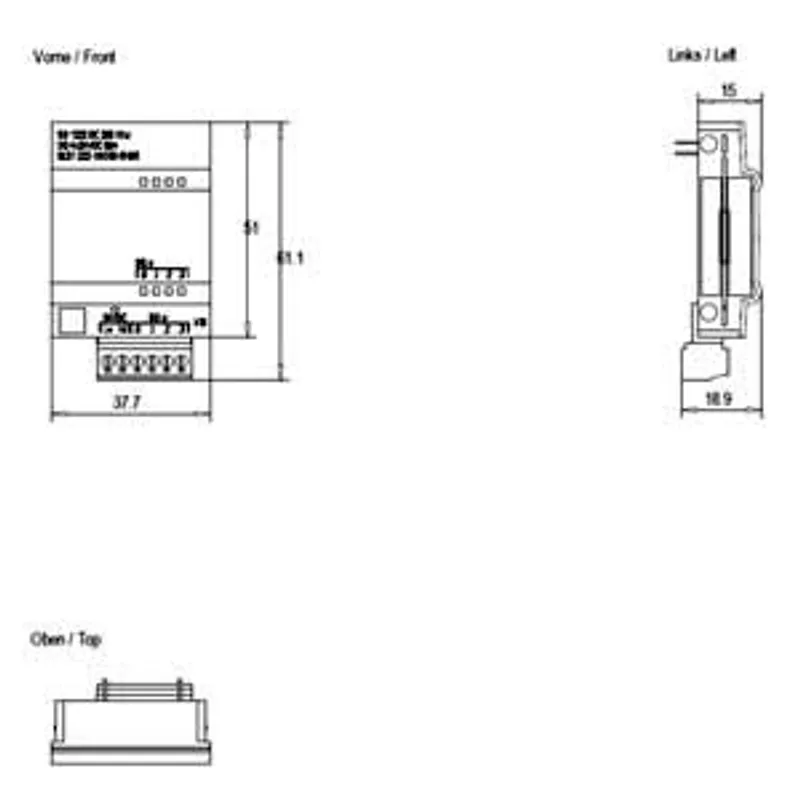

Dimensions
| Width | 38 mm |
| Height | 62 mm |
| Depth | 21 mm |
Weights
| Weight, approx. | 35 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7222-1BD30-0XB0: frequently asked questions
When can 6ES7222-1BD30-0XB0 be shipped?
6ES7222-1BD30-0XB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7222-1BD30-0XB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7222-1BD30-0XB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7222-1BD30-0XB0, subject to availability and destination.
