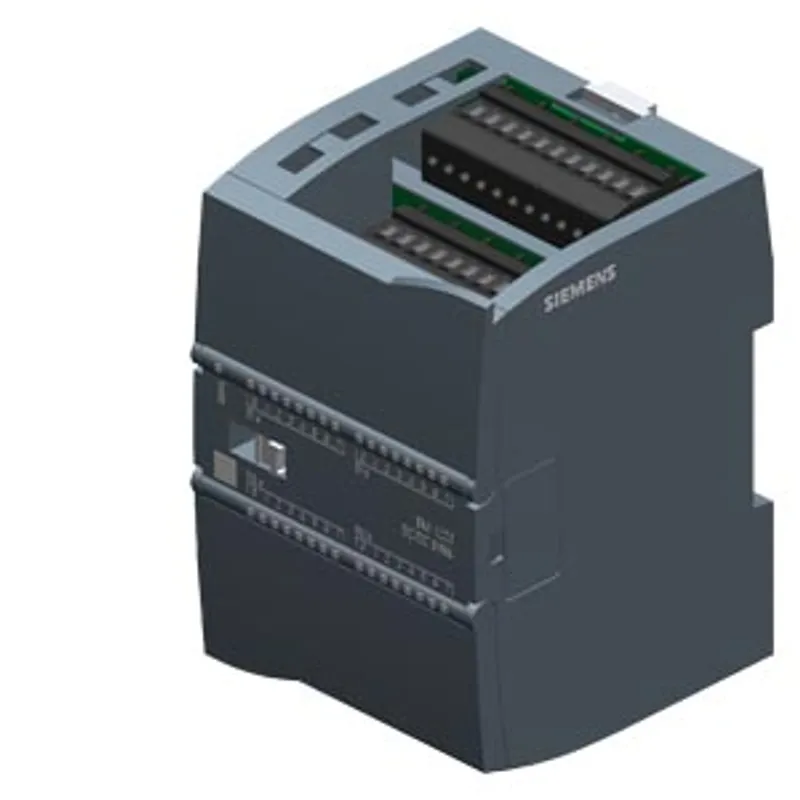

Siemens 6ES7223-1BL32-1XB0
SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC; sourcing/sinking input, 16 DO
- MPN
- 6ES7223-1BL32-1XB0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7223-1BL32-1XB0?
SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC; sourcing/sinking input, 16 DO, sourcing (sinking output), NPN transistor 0.5 A
Specifications
General information
| Product type designation | SM 1223, DI 16x24 V DC, DO 16x 24 V DC Sink |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| from backplane bus 5 V DC, max. | 185 mA |
| Digital inputs — from load voltage L+ (without load), max. | 4 mA; per channel |
Output voltage
| Power supply to the transmitters — present | Yes |
Power loss
| Power loss, typ. | 4.5 W |
Digital inputs
| Number of digital inputs | 16 |
| Number of digital inputs — in groups of | 2 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Number of simultaneously controllable inputs — all mounting positions — up to 40 °C, max. | 16 |
| Number of simultaneously controllable inputs — horizontal installation — up to 40 °C, max. | 16 |
| Number of simultaneously controllable inputs — horizontal installation — up to 50 °C, max. | 16 |
| Number of simultaneously controllable inputs — vertical installation — up to 40 °C, max. | 16 |
| Input voltage — Rated value (DC) | 24 V |
| Input voltage — for signal "0" | 5 V DC at 1 mA |
| Input voltage — for signal "1" | 15 V DC at 2.5 mA |
| Input current — for signal "0", max. (permissible quiescent current) | 1 mA |
| Input current — for signal "1", min. | 2.5 mA |
| Input current — for signal "1", typ. | 4 mA |
| Input delay (for rated value of input voltage) — for standard inputs — parameterizable | Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four |
| Input delay (for rated value of input voltage) — for interrupt inputs — Parameterizable | Yes |
| Cable length — shielded, max. | 500 m |
| Cable length — unshielded, max. | 300 m |
Digital outputs
| Number of digital outputs | 16; Transistor current sinking |
| Number of digital outputs — in groups of | 1 |
| Short-circuit protection | Yes; 1 to 3.5 A |
| Limitation of inductive shutdown voltage to | Typ 45 V |
| Switching capacity of the outputs — with resistive load, max. | 0.5 A |
| Switching capacity of the outputs — on lamp load, max. | 5 W |
| Output voltage — Rated value (DC) | 24 V |
| Output voltage — for signal "0", max. | L+ minus 0.75 V DC with 10k Load |
| Output voltage — for signal "1", min. | 0,5 V |
| Output current — for signal "1" rated value | 0.5 A |
| Output current — for signal "1" permissible range, max. | 0.5 A |
| Output current — for signal "0" residual current, max. | 75 µA |
| Output delay with resistive load — "0" to "1", max. | 20 µs |
| Output delay with resistive load — "1" to "0", max. | 350 µs |
| Total current of the outputs (per group) — horizontal installation — up to 50 °C, max. | 8 A; Current per mass |
| Relay outputs — Switching capacity of contacts — with inductive load, max. | 0.5 A |
| Relay outputs — Switching capacity of contacts — on lamp load, max. | 5 W |
| Relay outputs — Switching capacity of contacts — with resistive load, max. | 0.5 A |
| Cable length — shielded, max. | 500 m |
| Cable length — unshielded, max. | 150 m |
Interrupts/diagnostics/status information
| Alarms — Diagnostic alarm | Yes |
| Diagnostics indication LED — for status of the inputs | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
Potential separation
| Potential separation digital inputs — between the channels, in groups of | 2 |
| Potential separation digital outputs — between the channels, in groups of | 1 |
| Potential separation digital outputs — between the channels and backplane bus | 500 V AC |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during operation — horizontal installation, min. | -20 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -20 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Ambient temperature during operation — permissible temperature change | 5°C to 55°C, 3°C / minute |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, max. | 1 080 hPa |
| Relative humidity — Operation at 25 ℃ without condensation, max. | 95 % |
Connection method
| required front connector | Yes |
Mechanics/material
| Enclosure material (front) — plastic | Yes |

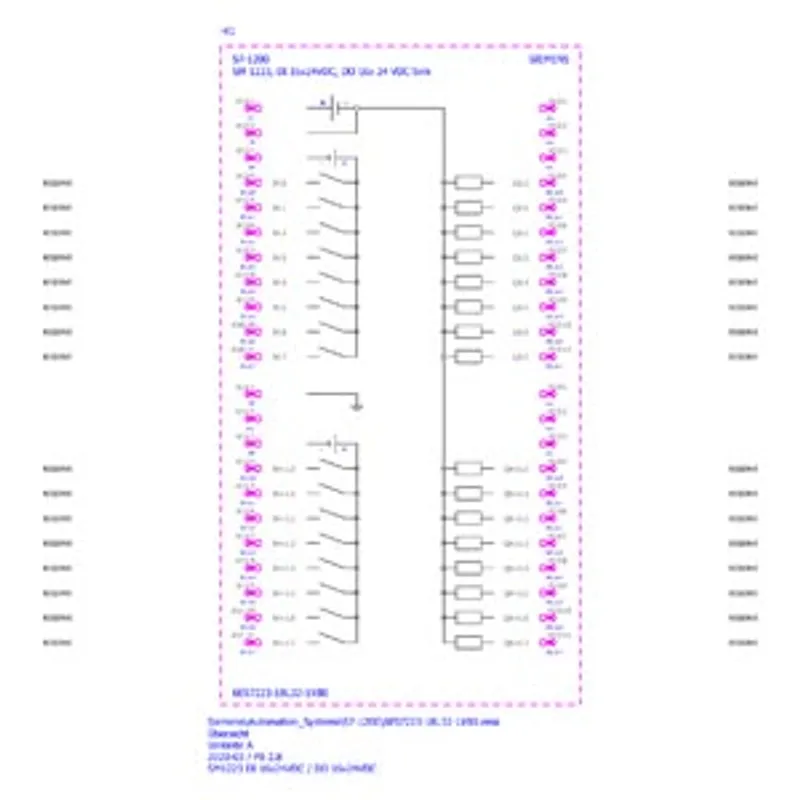

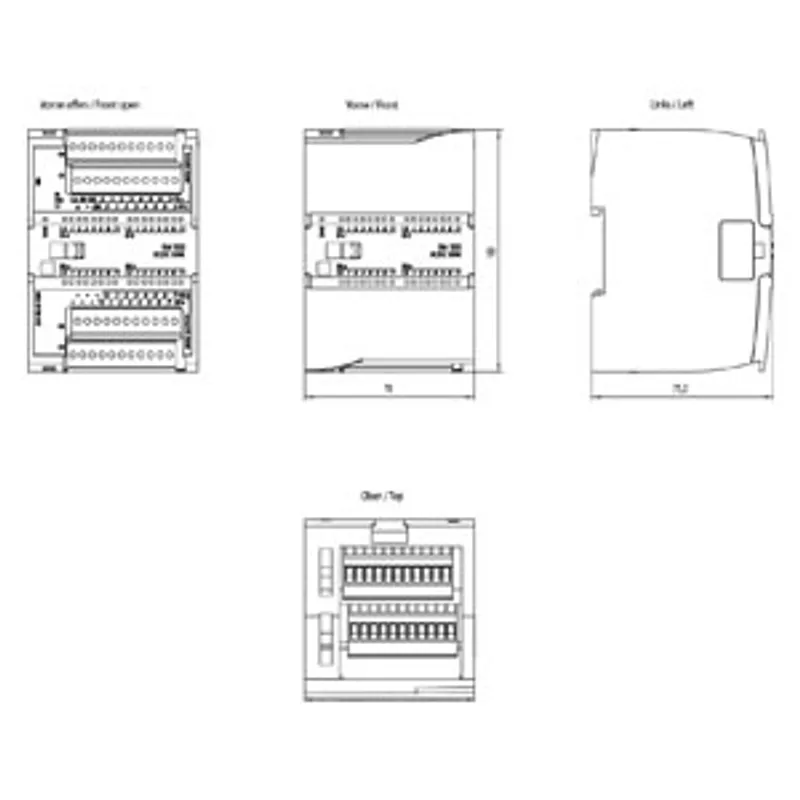

Dimensions
| Width | 70 mm |
| Height | 100 mm |
| Depth | 75 mm |
Weights
| Weight, approx. | 310 g |
