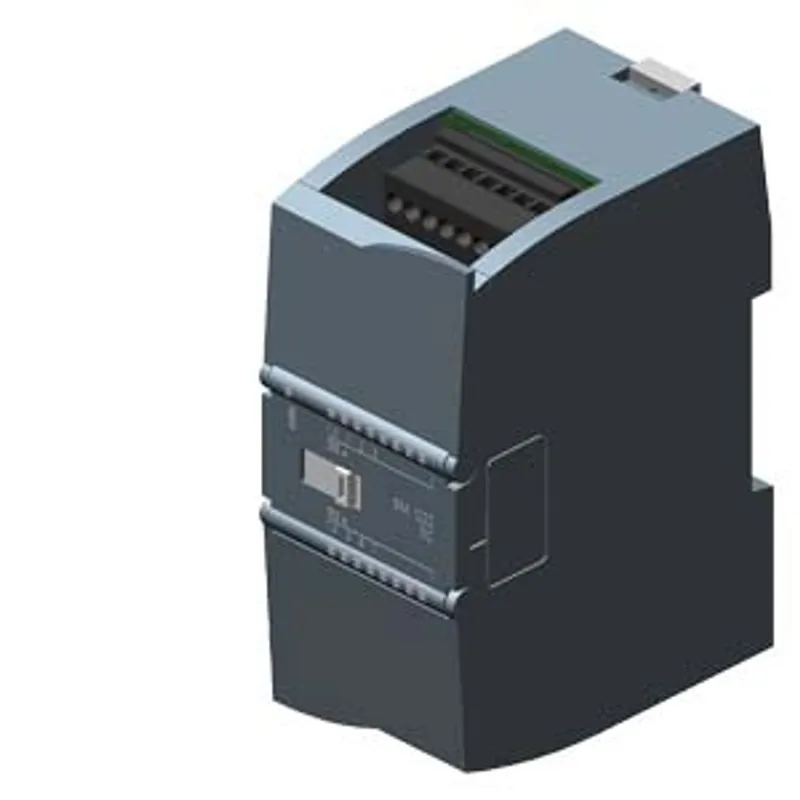

Siemens 6ES7222-1BF32-0XB0
SIMATIC S7-1200, Digital output SM 1222, 8 DO, 24 V DC, transistor 0.5 A
- MPN
- 6ES7222-1BF32-0XB0
- Category
- SM 1222 digital output modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7222-1BF32-0XB0?
SIMATIC S7-1200, Digital output SM 1222, 8 DO, 24 V DC, transistor 0.5 A
Specifications
General information
| Product type designation | SM 1222, DQ 8x24 V DC/0.5 A |
Supply voltage
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| from backplane bus 5 V DC, max. | 120 mA |
Power loss
| Power loss, typ. | 1.5 W |
Digital outputs
| Number of digital outputs | 8 |
| Number of digital outputs — in groups of | 1 |
| Short-circuit protection | No; to be provided externally |
| Limitation of inductive shutdown voltage to | typ. (L+) -48 V |
| Switching capacity of the outputs — with resistive load, max. | 0.5 A |
| Switching capacity of the outputs — on lamp load, max. | 5 W |
| Output voltage — Rated value (DC) | 24 V |
| Output voltage — for signal "0", max. | 0.1 V; with 10 kOhm load |
| Output voltage — for signal "1", min. | 20 V DC |
| Output current — for signal "1" rated value | 0.5 A |
| Output current — for signal "0" residual current, max. | 10 µA |
| Output delay with resistive load — "0" to "1", max. | 50 µs |
| Output delay with resistive load — "1" to "0", max. | 200 µs |
| Total current of the outputs (per group) — horizontal installation — up to 50 °C, max. | 4 A; Current per mass |
| Cable length — shielded, max. | 500 m |
| Cable length — unshielded, max. | 150 m |
Interrupts/diagnostics/status information
| Alarms — Diagnostic alarm | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
Potential separation
| Potential separation digital outputs — between the channels, in groups of | 1 |
| Potential separation digital outputs — between the channels and backplane bus | 500 V AC |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 68.6 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 8.16 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 60.7 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.334 kg |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during operation — horizontal installation, min. | -20 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -20 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Ambient temperature during operation — permissible temperature change | 5°C to 55°C, 3°C / minute |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, max. | 1 080 hPa |
| Relative humidity — Operation at 25 ℃ without condensation, max. | 95 % |

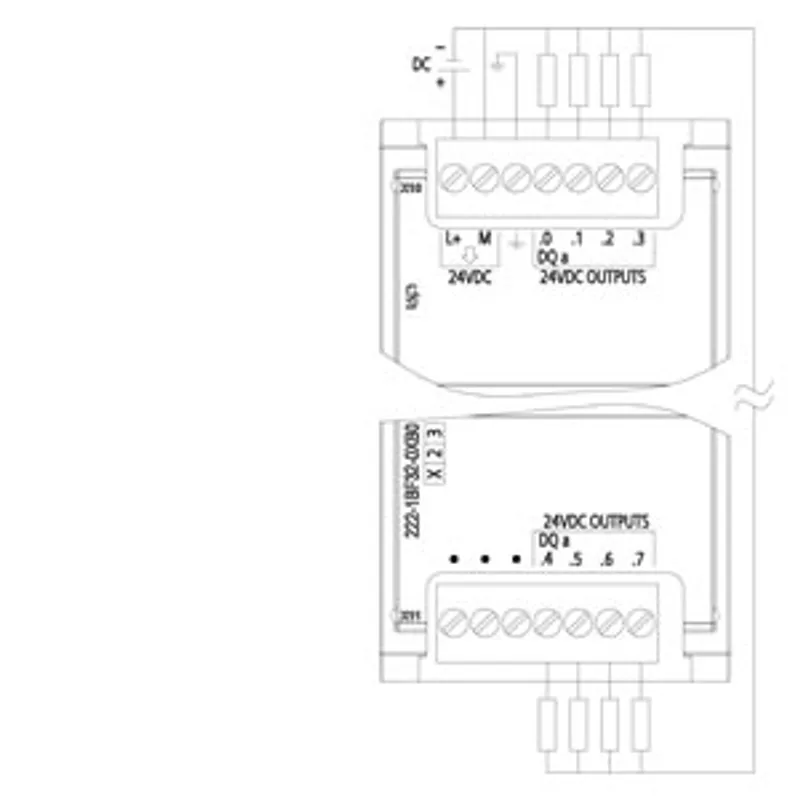

Connection method
| required front connector | Yes |
Mechanics/material
| Enclosure material (front) — Plastic | Yes |

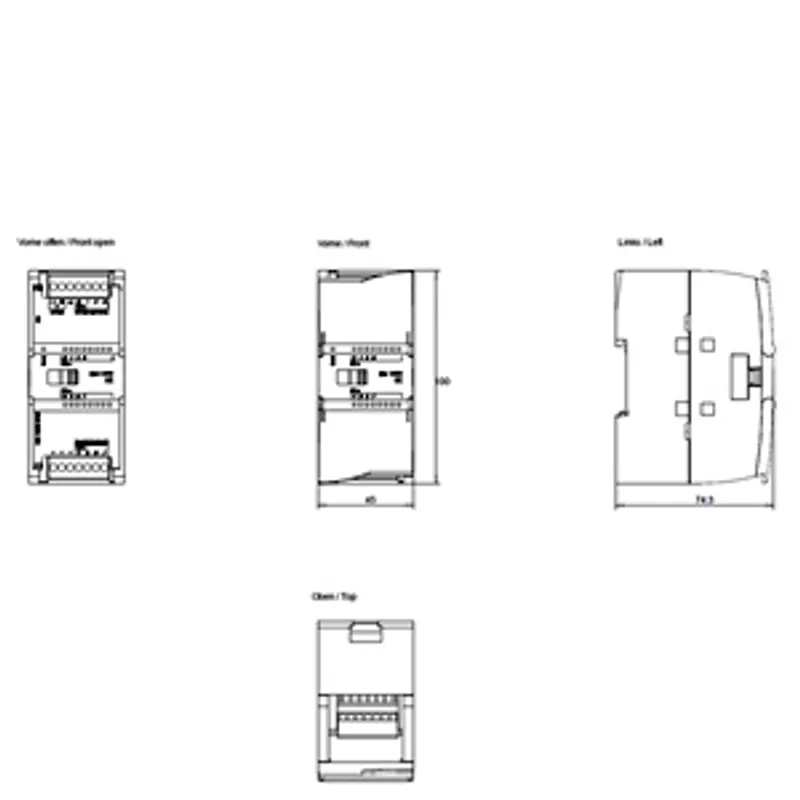

Dimensions
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
Weights
| Weight, approx. | 180 g |
