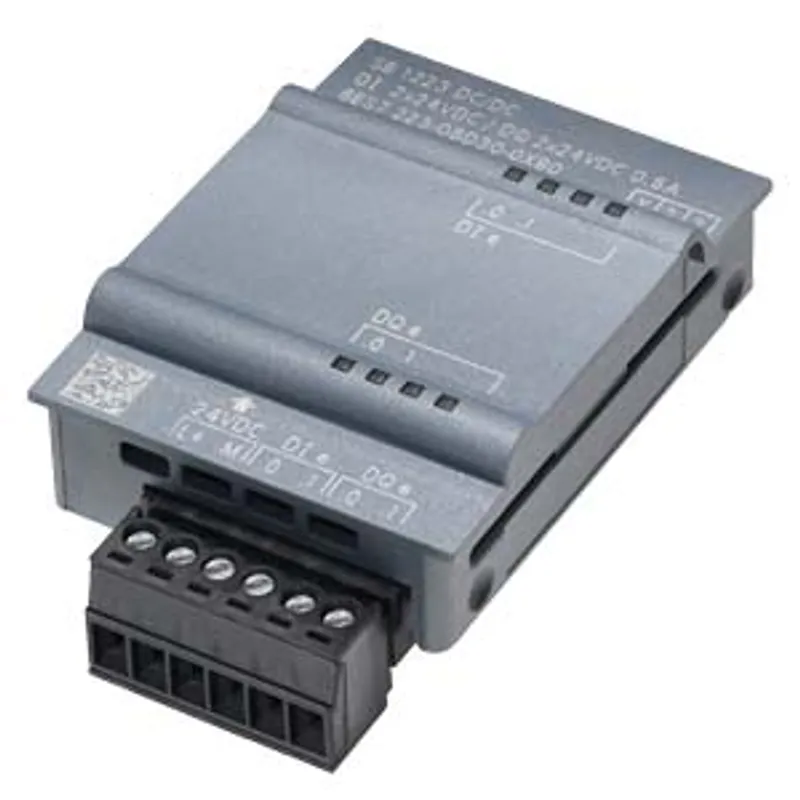

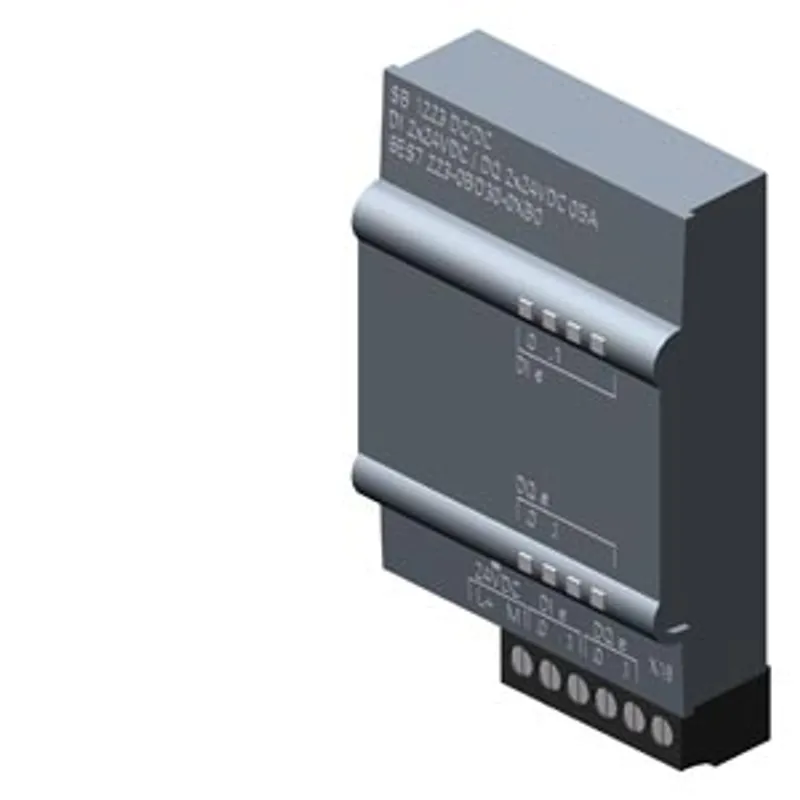

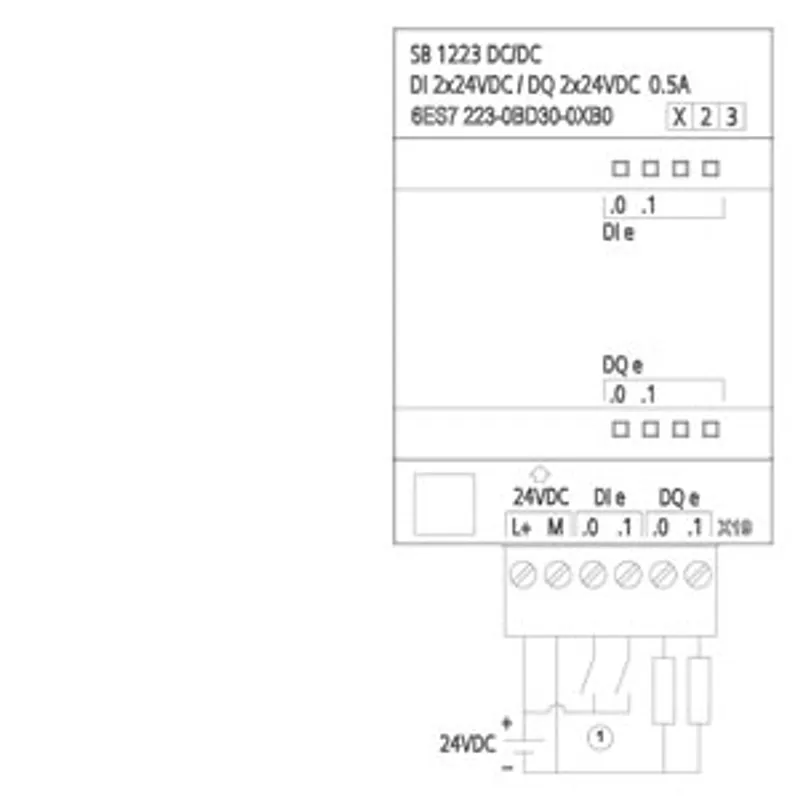

Siemens 6ES7223-0BD30-0XB0
SIMATIC S7-1200, Digital I/O SB 1223, 2 DI/2 DO, 2 DI 24 V DC/2 DO 24 V DC
- MPN
- 6ES7223-0BD30-0XB0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7223-0BD30-0XB0?
SIMATIC S7-1200, Digital I/O SB 1223, 2 DI/2 DO, 2 DI 24 V DC/2 DO 24 V DC
Specifications
General information
| Product type designation | SB 1223, DI 2x24 V DC/DQ 2x24 V DC |
Supply voltage
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| from backplane bus 5 V DC, typ. | 50 mA |
Output voltage
| Power supply to the transmitters — Supply current, max. | 4 mA; per channel |
Power loss
| Power loss, typ. | 1 W |
Digital inputs
| Number of digital inputs | 2; Current-sinking |
| Number of digital inputs — in groups of | 1 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Number of simultaneously controllable inputs — all mounting positions — up to 40 °C, max. | 2 |
| Input voltage — Rated value (DC) | 24 V |
| Input voltage — for signal "0" | 0 to 5 V |
| Input voltage — for signal "1" | +15 to +30 V |
| Input current — for signal "0", max. (permissible quiescent current) | 1 mA |
| Input current — for signal "1", typ. | 7 mA |
| Input delay (for rated value of input voltage) — for standard inputs — parameterizable | Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max. | 2 µs |
| Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max. | 10 µs |
| Input delay (for rated value of input voltage) — for interrupt inputs — Parameterizable | Yes |
| Input delay (for rated value of input voltage) — for technological functions — Parameterizable | Yes |
| Cable length — shielded, max. | 50 m |
Digital outputs
| Number of digital outputs | 2; MOSFET, solid-state (current-sinking/current-sourcing) |
| Number of digital outputs — in groups of | 1 |
| Short-circuit protection | No |
| Switching capacity of the outputs — with resistive load, max. | 0.5 A |
| Switching capacity of the outputs — on lamp load, max. | 5 W |
| Load resistance range — upper limit | 0.6 Ω |
| Output voltage — Rated value (DC) | 24 V |
| Output voltage — for signal "0", max. | 0.1 V; with 10 kOhm load |
| Output voltage — for signal "1", min. | 20 V |
| Output current — for signal "1" rated value | 0.5 A |
| Output current — for signal "1" permissible range, max. | 0.5 A |
| Output current — for signal "0" residual current, max. | 10 µA |
| Cable length — shielded, max. | 50 m |
Interrupts/diagnostics/status information
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED — for status of the inputs | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
Standards, approvals, certificates
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during operation — horizontal installation, min. | -20 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -20 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, max. | 1 080 hPa |
| Relative humidity — Operation at 25 ℃ without condensation, max. | 95 % |
Mechanics/material
| Enclosure material (front) — plastic | Yes |

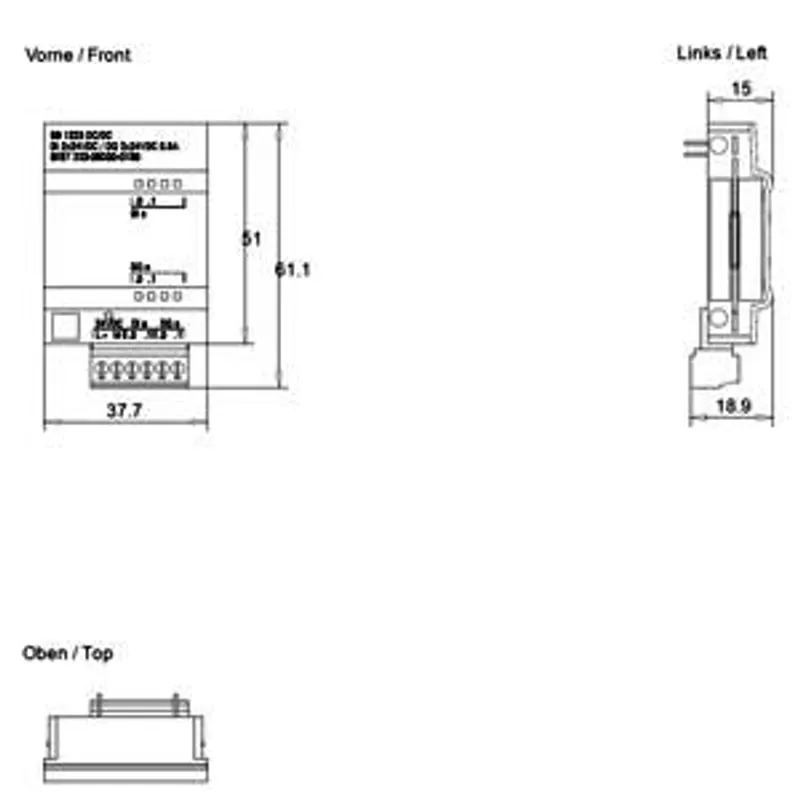

Dimensions
| Width | 38 mm |
| Height | 62 mm |
| Depth | 21 mm |
Weights
| Weight, approx. | 40 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7223-0BD30-0XB0: frequently asked questions
When can 6ES7223-0BD30-0XB0 be shipped?
6ES7223-0BD30-0XB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7223-0BD30-0XB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7223-0BD30-0XB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7223-0BD30-0XB0, subject to availability and destination.
