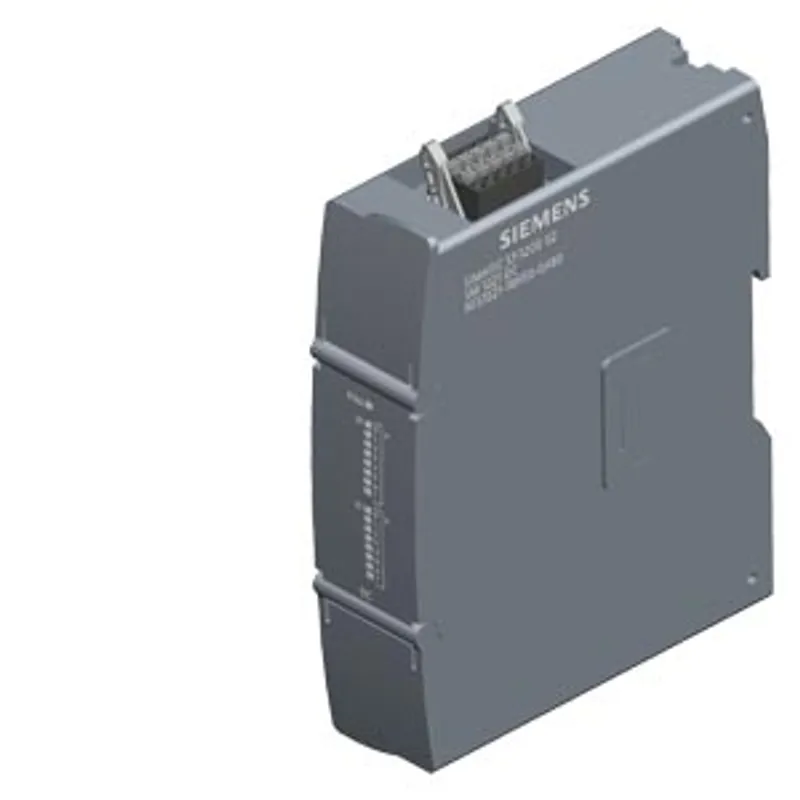

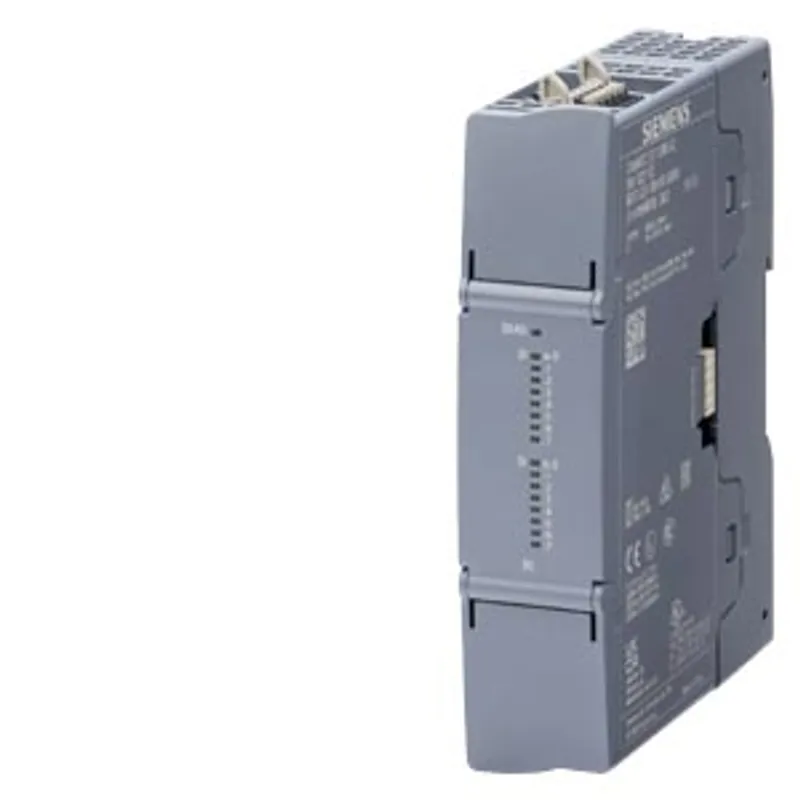

Siemens 6ES7221-1BH50-0XB0

SIMATIC S7-1200 G2: SM 1221 digital input, 16 DI; inputs: 16x DI 24 V DC sink/source

MPN
6ES7221-1BH50-0XB0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7221-1BH50-0XB0?

SIMATIC S7-1200 G2: SM 1221 digital input, 16 DI; inputs: 16x DI 24 V DC sink/source

Specifications

General information

Product type designationSM 1221, DI 16x 24 V DC

Input current

from backplane bus 5 V DC, max.90 mA
Digital inputs — from load voltage L+ (without load), max.4.1 mA; per channel

Power loss

Power loss, typ.3.2 W

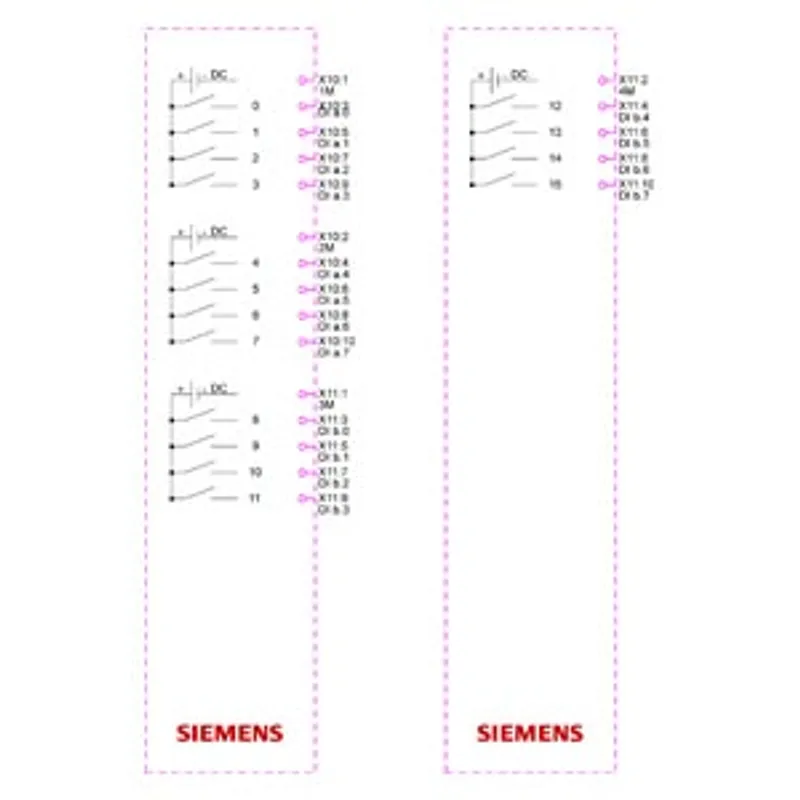

Digital inputs

Number of digital inputs16
Number of digital inputs — in groups of4
Input characteristic curve in accordance with IEC 61131, type 1Yes
Number of simultaneously controllable inputs — horizontal installation — up to 40 °C, max.16
Number of simultaneously controllable inputs — horizontal installation — up to 50 °C, max.16
Number of simultaneously controllable inputs — vertical installation — up to 40 °C, max.16
Input voltage — Rated value (DC)24 V
Input voltage — for signal "0"5 V DC or 0.5 mA
Input voltage — for signal "1"15 V DC at 2.5 mA
Input current — for signal "0", max. (permissible quiescent current)0.5 mA
Input current — for signal "1", min.2.5 mA
Input current — for signal "1", typ.4.1 mA
Input delay (for rated value of input voltage) — for standard inputs — ParameterizableYes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
Input delay (for rated value of input voltage) — for interrupt inputs — ParameterizableNo
Cable length — shielded, max.500 m
Cable length — unshielded, max.300 m

Interrupts/diagnostics/status information

Diagnostics functionYes
Alarms — Diagnostic alarmNo
Diagnoses — Monitoring the supply voltageNo
Diagnostics indication LED — for status of the inputsYes
Diagnostics indication LED — for maintenanceYes

Potential separation

Potential separation digital inputs — between the channels, in groups of4
Potential separation digital inputs — between the channels and backplane busYes; 707 V DC (type test)

Isolation

Isolation tested with707 V DC (type test)

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech
CE markYes
CSA approvalNo
UL approvalYes
cULusYes
FM approvalNo
RCM (formerly C-TICK)Yes
KC approvalYes
Marine approvalNo
Ecological footprint — environmental product declarationYes; type 2 acc. to ISO 14021
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]40.3 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]7.79 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]32.5 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]-0.089 kg

Ambient conditions

Free fall — Fall height, max.0.3 m; five times, in product package
Ambient temperature during operation — horizontal installation, min.-20 °C
Ambient temperature during operation — horizontal installation, max.60 °C; at max. voltages and max. specification
Ambient temperature during operation — vertical installation, min.-20 °C
Ambient temperature during operation — vertical installation, max.50 °C; at max. voltages and max. specification
Ambient temperature during storage/transportation — min.-40 °C
Ambient temperature during storage/transportation — max.70 °C
Air pressure acc. to IEC 60068-2-13 — Operation, min.540 hPa
Air pressure acc. to IEC 60068-2-13 — Operation, max.1 140 hPa
Air pressure acc. to IEC 60068-2-13 — Storage/transport, min.540 hPa
Air pressure acc. to IEC 60068-2-13 — Storage/transport, max.1 140 hPa
Altitude during operation relating to sea level — Installation altitude, min.-1 000 m
Altitude during operation relating to sea level — Installation altitude, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Relative humidity — Operation at 25 ℃ without condensation, max.95 %
Vibrations — Vibration resistance during operation acc. to IEC 60068-2-63.5 mm from 5 - 8.4 Hz, 1g from 8.4 - 150 Hz
Vibrations — Operation, tested according to IEC 60068-2-6Yes
Shock testing — tested according to IEC 60068-2-27Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms
Pollutant concentrations — SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free
Pollutant concentrations — SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free

Connection method

required front connectorNo

Mechanics/material

Enclosure material (front) — plasticYes

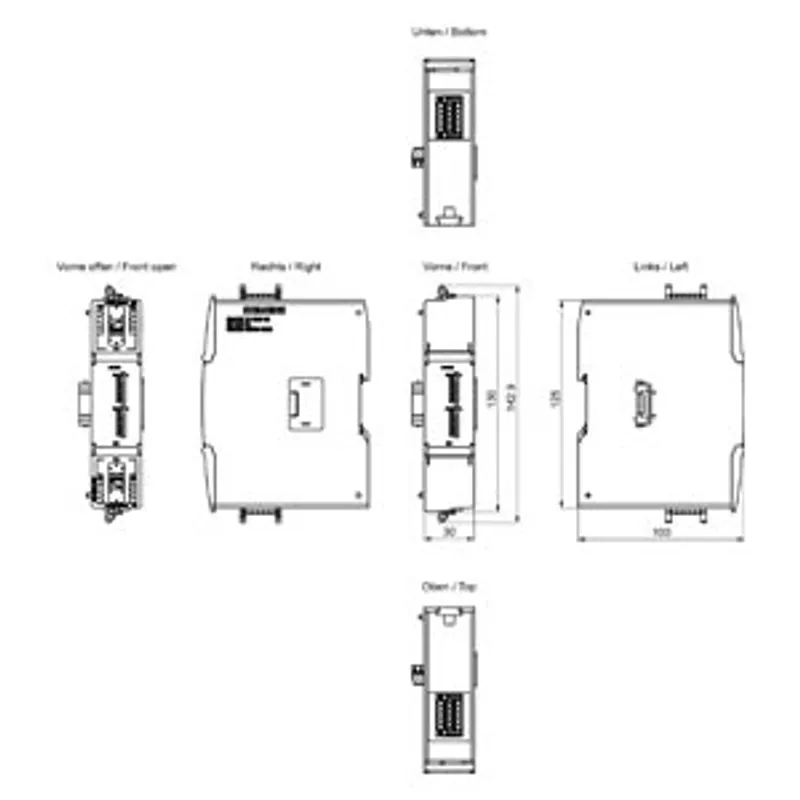

Dimensions

Width30 mm
Height125 mm
Depth100 mm

Weights

Weight, approx.166 g
