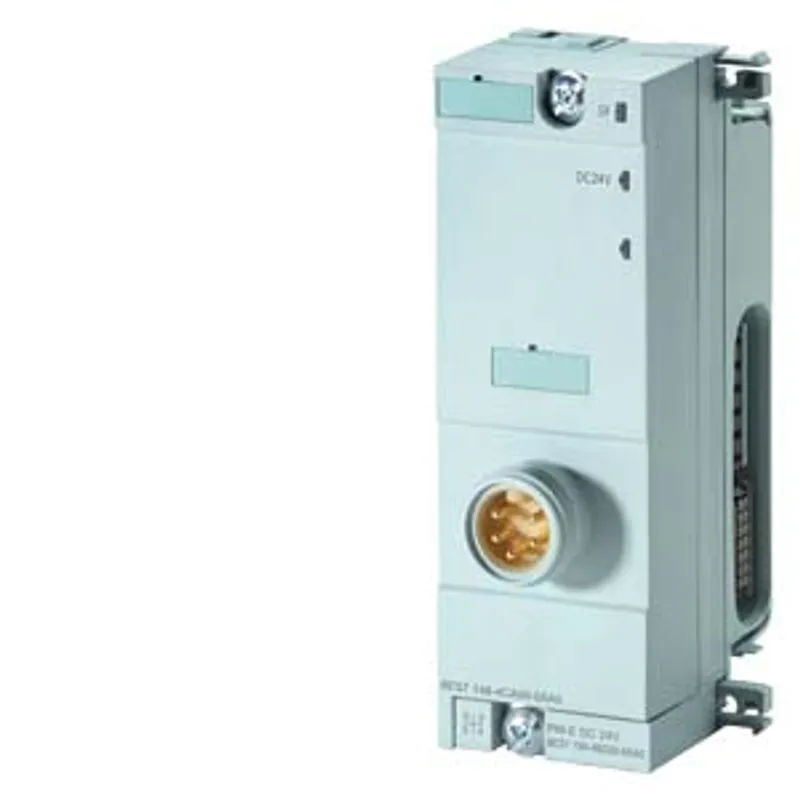

Siemens 6ES7148-4CA00-0AA0
SIMATIC DP, Power module for Electronic modules ET 200 PRO PM-E, 24 V DC, incl. bus module
- MPN
- 6ES7148-4CA00-0AA0
- Category
- PM-E power module
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7148-4CA00-0AA0?

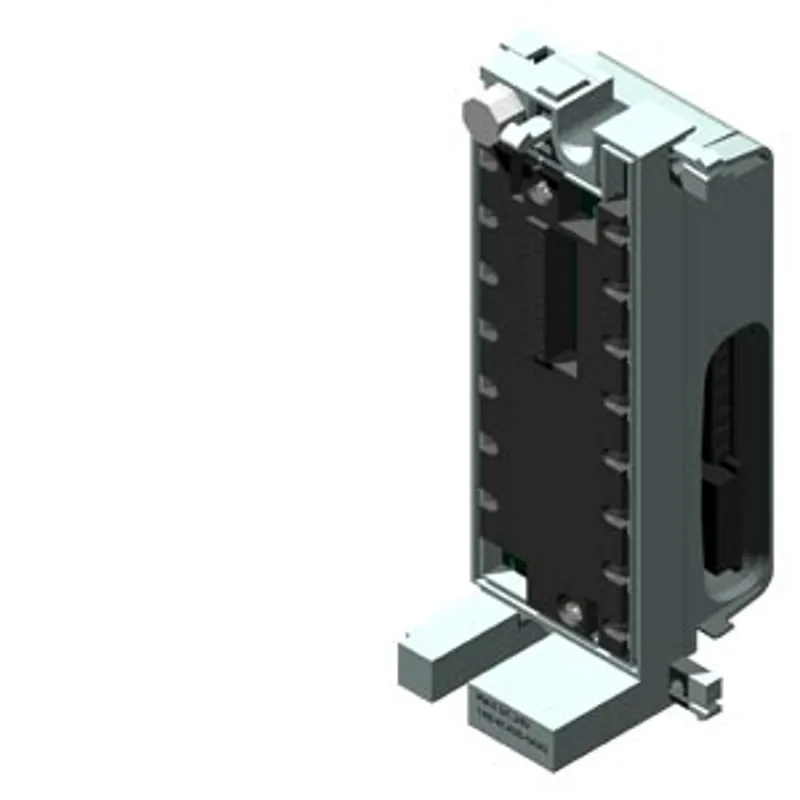

SIMATIC DP, Power module for Electronic modules ET 200 PRO PM-E, 24 V DC, incl. bus module, connection module PM-E 6ES7194-4B.00-0AA0 order separately
Specifications
Supply voltage
| Load voltage 2L+ — Rated value (DC) | 24 V |
| Load voltage 2L+ — Short-circuit protection | Yes; via an exchangeable fuse in the power module |
| Load voltage 2L+ — Reverse polarity protection | Yes; against destruction |
Input current
| from load voltage 2L+, max. | 3 mA |
Current carrying capacity
| max. | 10 A; up to 55 °C (on the internal busbars of the ET 200pro) |
Power loss
| Power loss, typ. | 0.1 W |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Missing load voltage | Yes |
| Diagnostics indication LED — For load voltage monitoring | Yes |
| Diagnostics indication LED — Group error SF (red) | Yes |
Parameter
| Missing load voltage | Potential group of the power module |
Potential separation
| between load voltage and backplane bus | Yes |
Isolation
| Isolation tested with | 707 V DC (type test) |

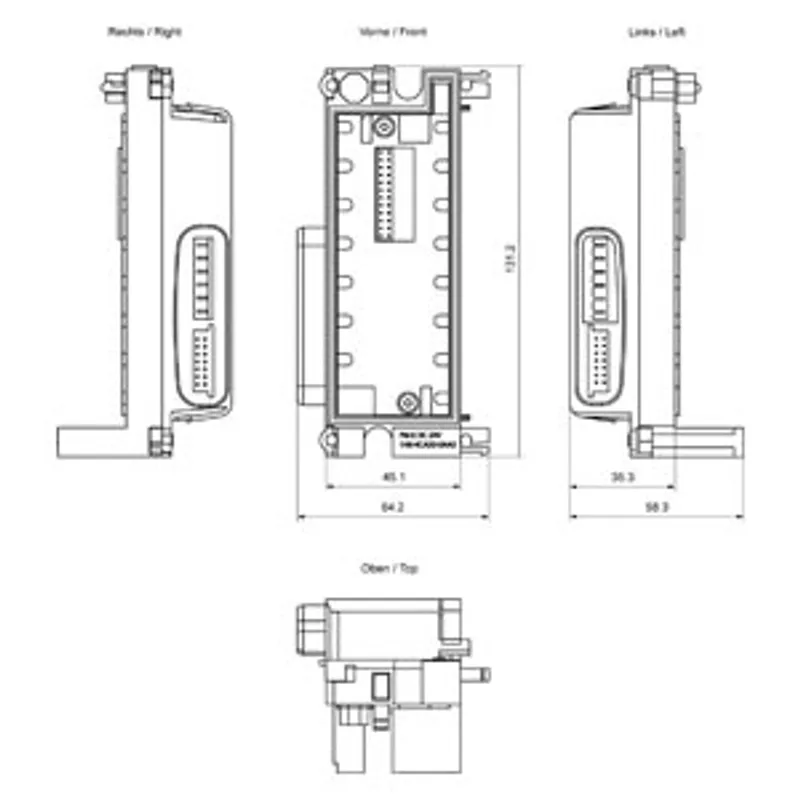

Dimensions
| Width | 45 mm |
| Height | 130 mm |
| Depth | 35 mm |
Weights
| Weight, approx. | 140 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7148-4CA00-0AA0: frequently asked questions
When can 6ES7148-4CA00-0AA0 be shipped?
6ES7148-4CA00-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7148-4CA00-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7148-4CA00-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7148-4CA00-0AA0, subject to availability and destination.
