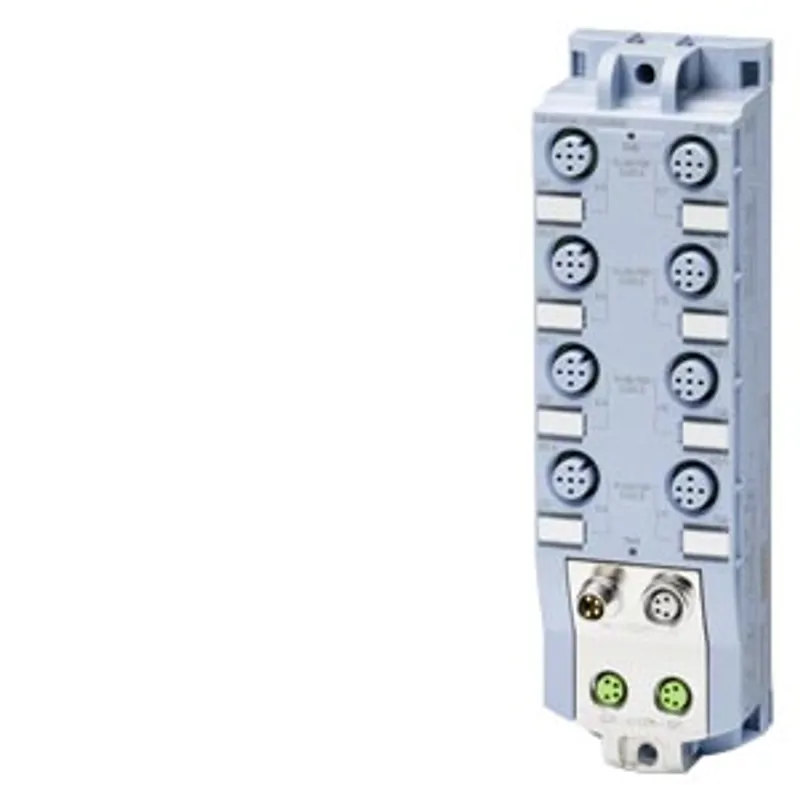

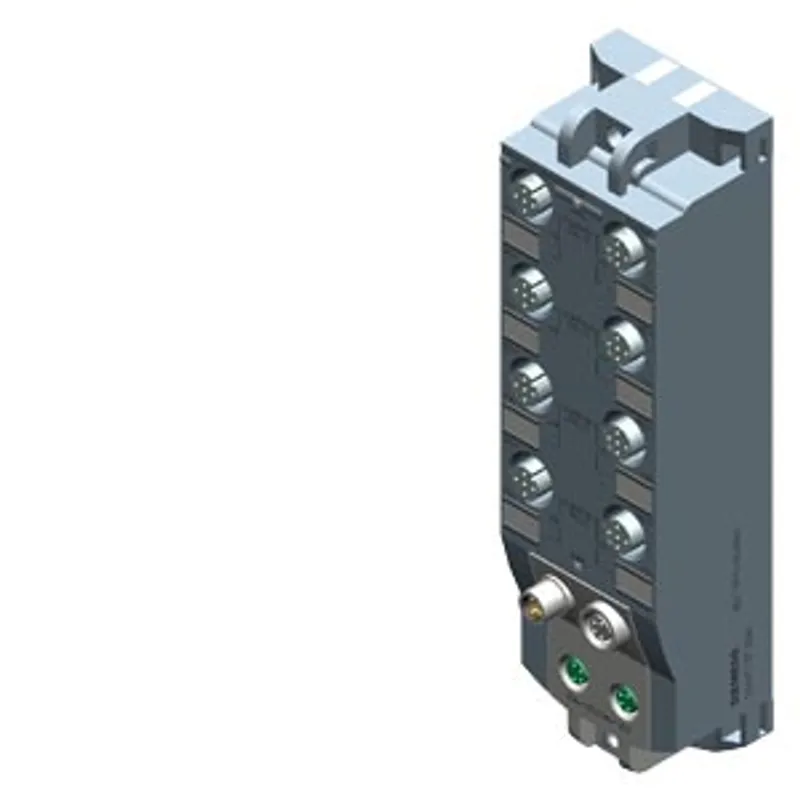

Siemens 6ES7147-5JJ00-0BA0
SIMATIC ET 200AL, CM 8x IO-Link, 8x M12, degree of protection IP67
- MPN
- 6ES7147-5JJ00-0BA0
- Category
- CM IO-Link
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7147-5JJ00-0BA0?
SIMATIC ET 200AL, CM 8x IO-Link, 8x M12, degree of protection IP67
Specifications
General information
| Product type designation | CM 8x IO-Link |
| HW functional status | FS01 |
| Firmware version | V2.0.0 |
| Vendor identification (VendorID) | 002AH |
| Product function — I&M data | Yes; I&M0 to I&M4 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | STEP 7 V20 or higher with HSP0462 |
| Engineering with — STEP 7 configurable/integrated from version | STEP 7 V5.7 or higher SP1 or higher |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.4.x |
| Operating mode — IO-Link | Yes |
| Operating mode — DI | Yes |
| Operating mode — DQ | Yes; max. 100 mA |
Supply voltage
| power supply according to NEC Class 2 required | No |
| Load voltage 1L+ — Rated value (DC) | 24 V |
| Load voltage 1L+ — permissible range, lower limit (DC) | 20.4 V |
| Load voltage 1L+ — permissible range, upper limit (DC) | 28.8 V |
| Load voltage 1L+ — Reverse polarity protection | Yes; against destruction |
| Load voltage 2L+ — Rated value (DC) | 24 V |
| Load voltage 2L+ — permissible range, lower limit (DC) | 20.4 V |
| Load voltage 2L+ — permissible range, upper limit (DC) | 28.8 V |
| Load voltage 2L+ — Reverse polarity protection | Yes; Against destruction; actuator power supply outputs applied with reversed polarity |
Input current
| Current consumption (rated value) | 45 mA; without load |
| from load voltage 1L+ (unswitched voltage) | 4 A; Maximum value |
| from load voltage 2L+, max. | 4 A; Maximum value |
Encoder supply
| Number of outputs | 8 |
| 24 V encoder supply — Short-circuit protection | Yes; per channel, electronic |
| 24 V encoder supply — Output current, max. | 4 A; total current of all ports, max. 2 A per channel |
Power loss
| Power loss, typ. | 3.6 W |
Address area
| Address space per module — Inputs | 237 byte; including 8 byte for QI information |
| Address space per module — Outputs | 237 byte |
Digital inputs
| Number of digital inputs | 6; Parameterizable as DIQ |
| Digital inputs, parameterizable | Yes |
| Sourcing/sinking input | P-reading |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes |
| Number of simultaneously controllable inputs — all mounting positions — up to 55 °C, max. | 8 |
| Input voltage — Rated value (DC) | 24 V |
| Input voltage — for signal "0" | -3 to +5V |
| Input voltage — for signal "1" | +11 to +30V |
| Input current — for signal "1", typ. | 2.5 mA |
| Input delay (for rated value of input voltage) — for standard inputs — parameterizable | No |
| Cable length — unshielded, max. | 30 m |
Digital outputs
| Number of digital outputs | 6; Parameterizable as DIQ |
| Short-circuit protection | Yes; per channel, electronic |
| Short-circuit protection — Response threshold, typ. | 1 A |
| Limitation of inductive shutdown voltage to | 1L+ (-53 V) |
| Controlling a digital input | Yes |
| Switching capacity of the outputs — on lamp load, max. | 5 W |
| Load resistance range — lower limit | 48 Ω |
| Load resistance range — upper limit | 4 Ω |
| Output voltage — for signal "1", min. | 1L+ (-0.8V) |
| Output current — for signal "1" rated value | 0.5 A |
| Output current — for signal "0" residual current, max. | 0.5 mA |
| Switching frequency — with resistive load, max. | 100 Hz |
| Switching frequency — with inductive load, max. | 0.5 Hz |
| Switching frequency — on lamp load, max. | 1 Hz |
| Total current of the outputs — Current per module, max. | 4 A |
| Cable length — unshielded, max. | 30 m |
Encoder
| Connectable encoders — 2-wire sensor | Yes |
| Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
IO-Link
| Number of ports | 8 |
| Number of ports — of which simultaneously controllable | 8 |
| IO-Link protocol 1.0 | Yes |
| IO-Link protocol 1.1 | Yes |
| Transmission rate | 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230 kBaud (COM3) |
| Cycle time, min. | 2 ms |
| Size of process data, input per port | 33 byte |
| Size of process data, input per module | 237 byte |
| Size of process data, output per port | 32 byte |
| Size of process data, output per module | 237 byte |
| Memory size for device parameter | 2 kbyte |
| Master backup | possible with LIOLink_Master function block |
| Configuration without S7-PCT | Possible; autostart/manual function |
| Cable length unshielded, max. | 20 m |
| Connection of IO-Link devices — Port type A | via 3-core cable |
| Connection of IO-Link devices — Port type B | Additional device supply: max. 2 A per port, max. 4 A per module |
Interrupts/diagnostics/status information
| Alarms — Diagnostic alarm | Yes; Parameterizable |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes |
| Diagnoses — short-circuit | Yes |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red LED |
| Diagnostics indication LED — For load voltage monitoring | Yes; green LED |
Potential separation
| between the load voltages | Yes |
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — between the channels and the power supply of the electronics | No |
Isolation
| Isolation tested with | 707 V DC (type test) |
Degree and class of protection
| IP degree of protection | IP65/67 |
Standards, approvals, certificates
| Suitable for safety-related tripping of standard modules | Yes |
Security
| signed firmware update | Yes |
| data integrity | Yes |
Ambient conditions
| Ambient temperature during operation — min. | -30 °C |
| Ambient temperature during operation — max. | 55 °C |

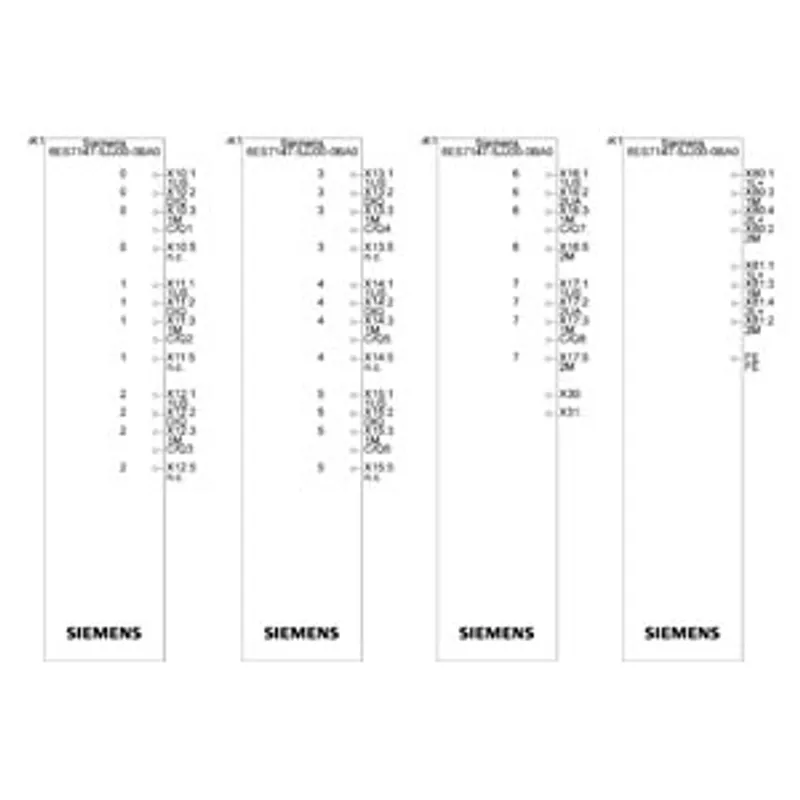

Connection method
| Design of electrical connection for the inputs and outputs | M12, 5-pin, A-coded |
| Design of electrical connection for supply voltage | M8, 4-pole |
| ET-Connection — ET-Connection | M8, 4-pin, shielded |

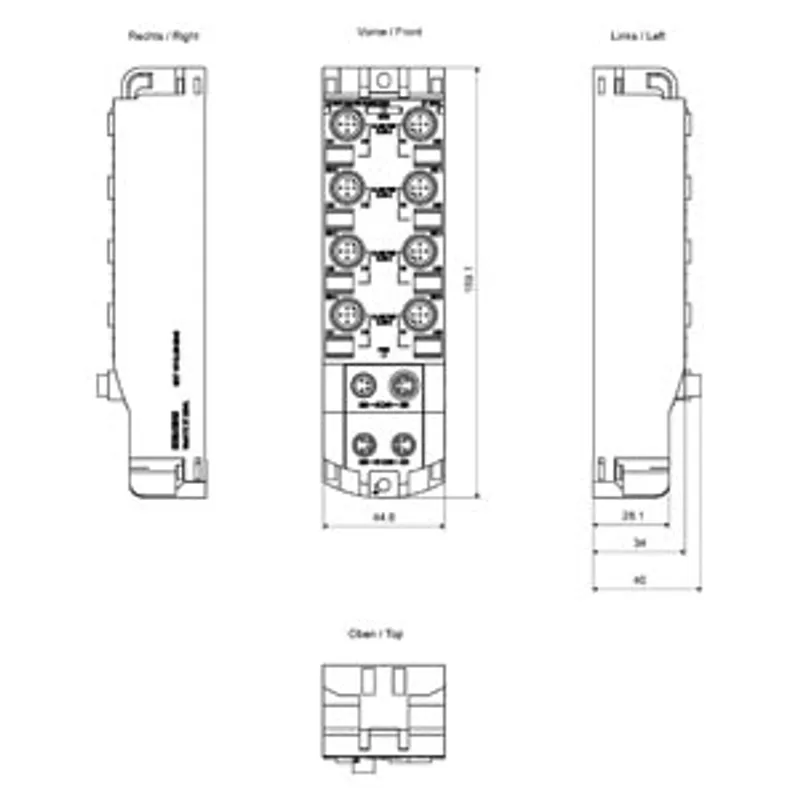

Dimensions
| Width | 45 mm |
| Height | 159 mm |
| Depth | 40 mm |
Weights
| Weight, approx. | 184 g |
